Topology schematics

Buck-Booster Symmetric

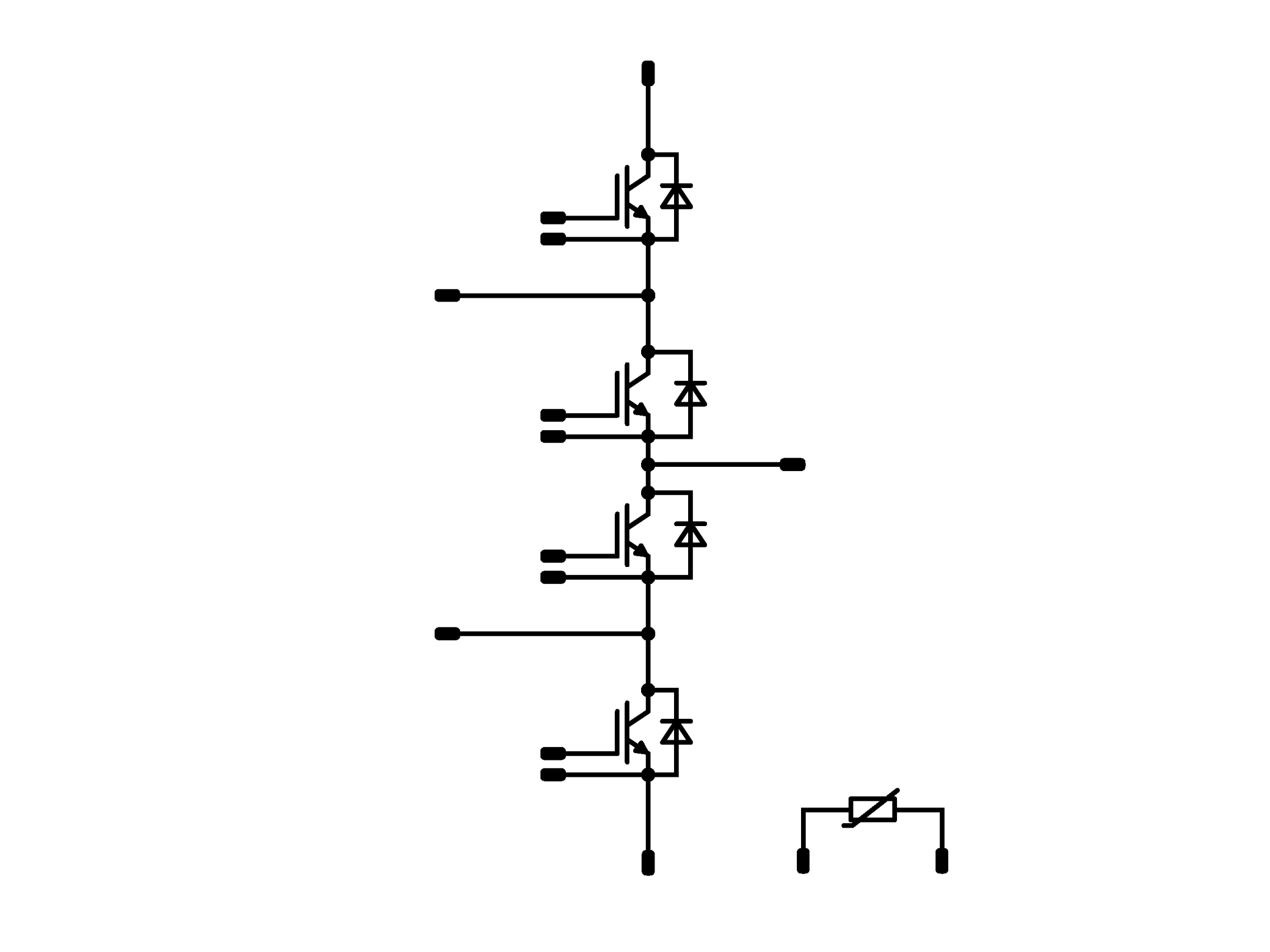

  • Symmetrical buck-boost circuit
  • Sub-Topology
  • Product line
  • Voltage
    in V
  • Current
    in A
  • Main Chip technology
  • Housing Family
  • Height
    in mm
0 Products
Download Selection
View
Part-No Product status Topology Sub-Topology Product line Voltage

in V
Current

in A
Main Chip technology Housing family Height in

mm
Isolation Module datasheet
10-fz07bba075s5-l684l58 Series production Buck-Booster Symmetric Symm. Buck Boost-KE-NTC flowBUCK-BOOST 0 650 75 IGBT S5 flow 0 12 Al2O3 Module datasheet:PDF
Symm. Buck Boost-KE-NTC
flowBUCK-BOOST 0
10-py07bba150s5-m735l58y Series production Buck-Booster Symmetric Symm. Buck Boost-KE-NTC flowBUCK-BOOST 1 650 150 IGBT S5 flow 1 12 Al2O3 Module datasheet:PDF
Symm. Buck Boost-KE-NTC
flowBUCK-BOOST 1
