flowPACK S3
B0-SP126PA200M7-LR40F78T
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowPACK S3
- Product status: Engineering Sample
- Standard packaging quantity (pieces): 45
Electrical characteristics
- Voltage: 1200 V
- Current: 200 A
- Inverter
- Kelvin Emitter for improved switching performance
- Open Emitter configuration
- Temperature sensor
Sixpack
Chip & isolation characteristics
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
- Switching optimized for EMC
IGBT M7
- Base isolation: Al2O3
Isolation

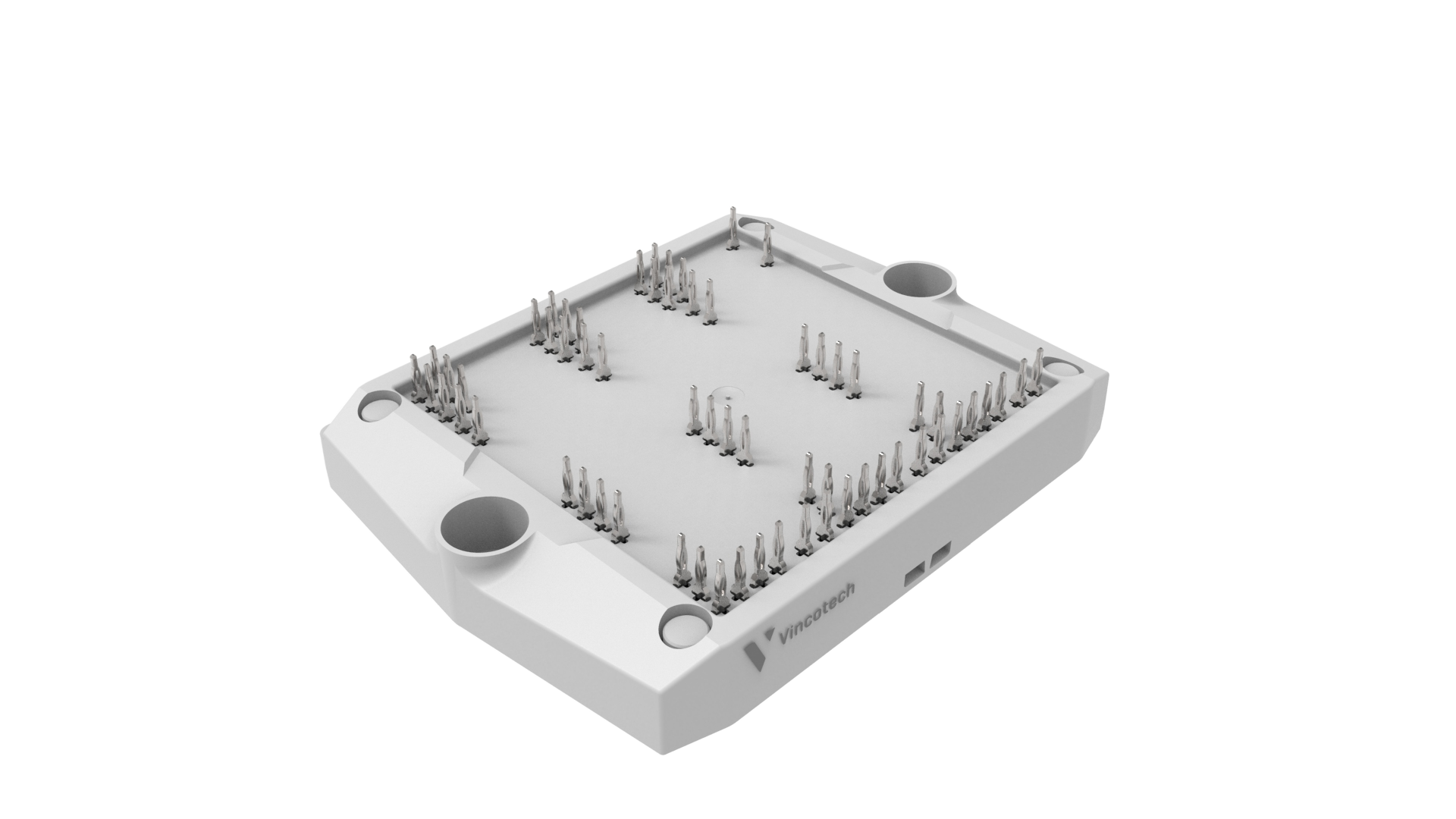

Mechanical & housing characteristics
- Mechanical connection to PCB: no towers
- Footprint: 81.8 mm x 61.3 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow S3
