flowBOOST E3BP dual

Basic information

• Product line: flowBOOST E3BP dual
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 24

Electrical characteristics

• Voltage: 1400 V
• Current: 225 A
• R(DS)on: 6.67 mOhm

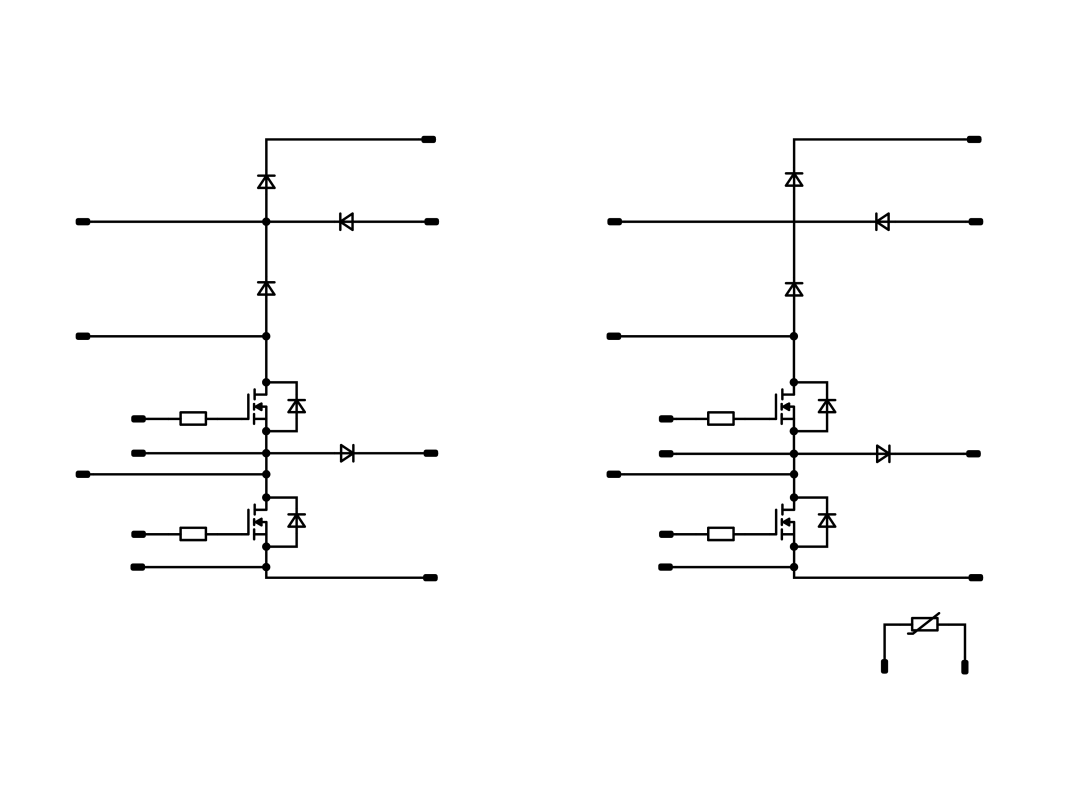

Three-level FC Booster

• Kelvin Emitter for improved switching performance
• Temperature sensor
• Gate Resistor
• MOSFET
• Dual Flying Cap Booster
• Auxiliary diodes for FC pre-charge (patent pending)

Chip & isolation characteristics

SiC MOSFET

• Easy paralleling
• Fast switching speed
• Low on-resistance

Isolation

• Base isolation: Al₂O₃

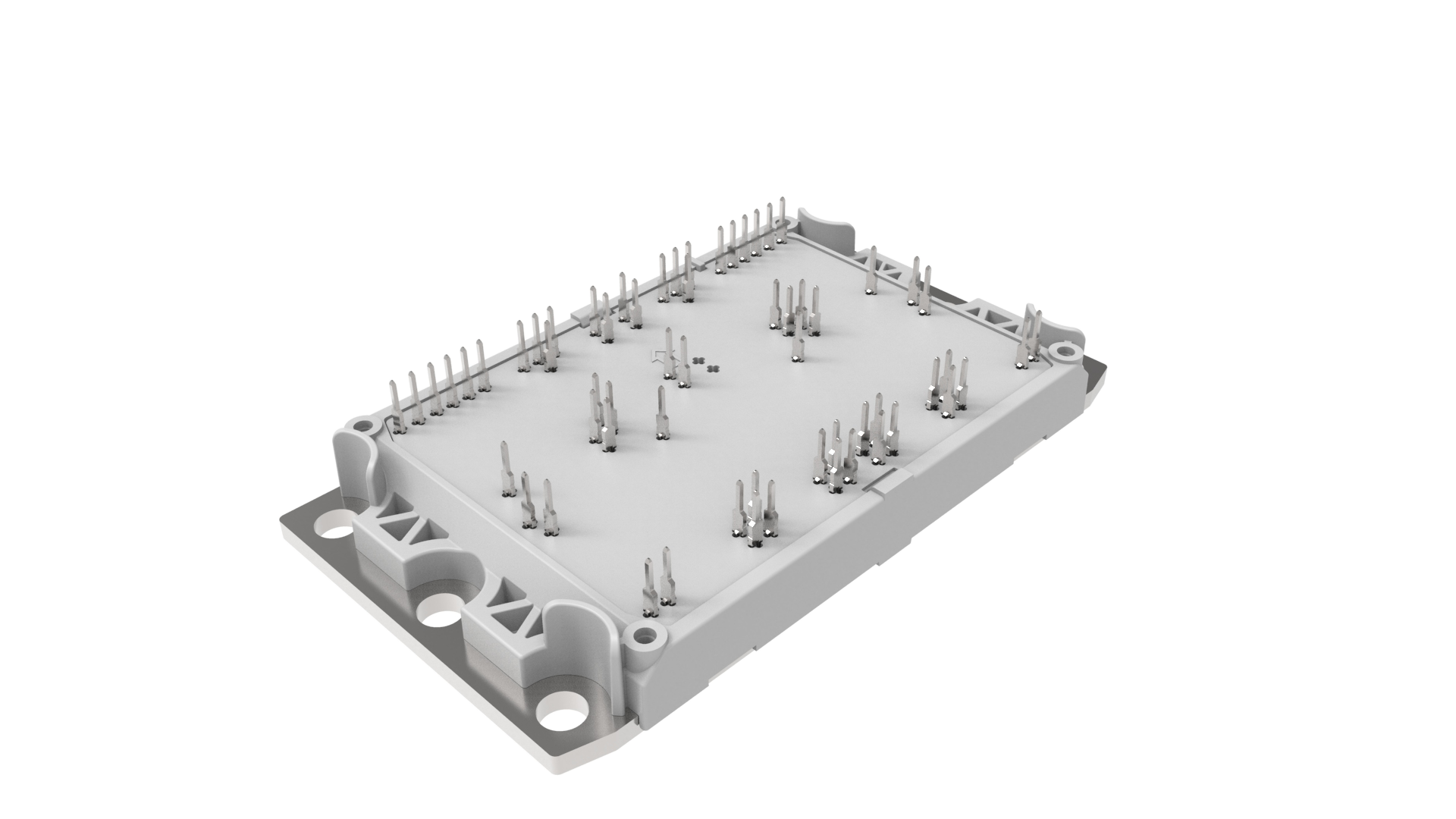

Mechanical & housing characteristics

flow E3BP

• Mechanical connection to PCB: 4 towers
• Footprint: 109.6 mm x 59.7 mm
• Height: 15 mm
• Pin type: Solder pin
