flowNPC 1
10-F107NIB150SG06-M136F39
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowNPC 1
- Product status: Series-Ops
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 650 V
- Current: 150 A
- Kelvin Emitter for improved switching performance
- Neutral Point Clamped Topology (I-Type)
- Temperature sensor
Three-level NPC (I-Type)
Chip & isolation characteristics
- High speed switching
- Low EMI
- Low turn-off losses
- Low collector emitter saturation voltage
IGBT3 HS
- Base isolation: AlN
Isolation

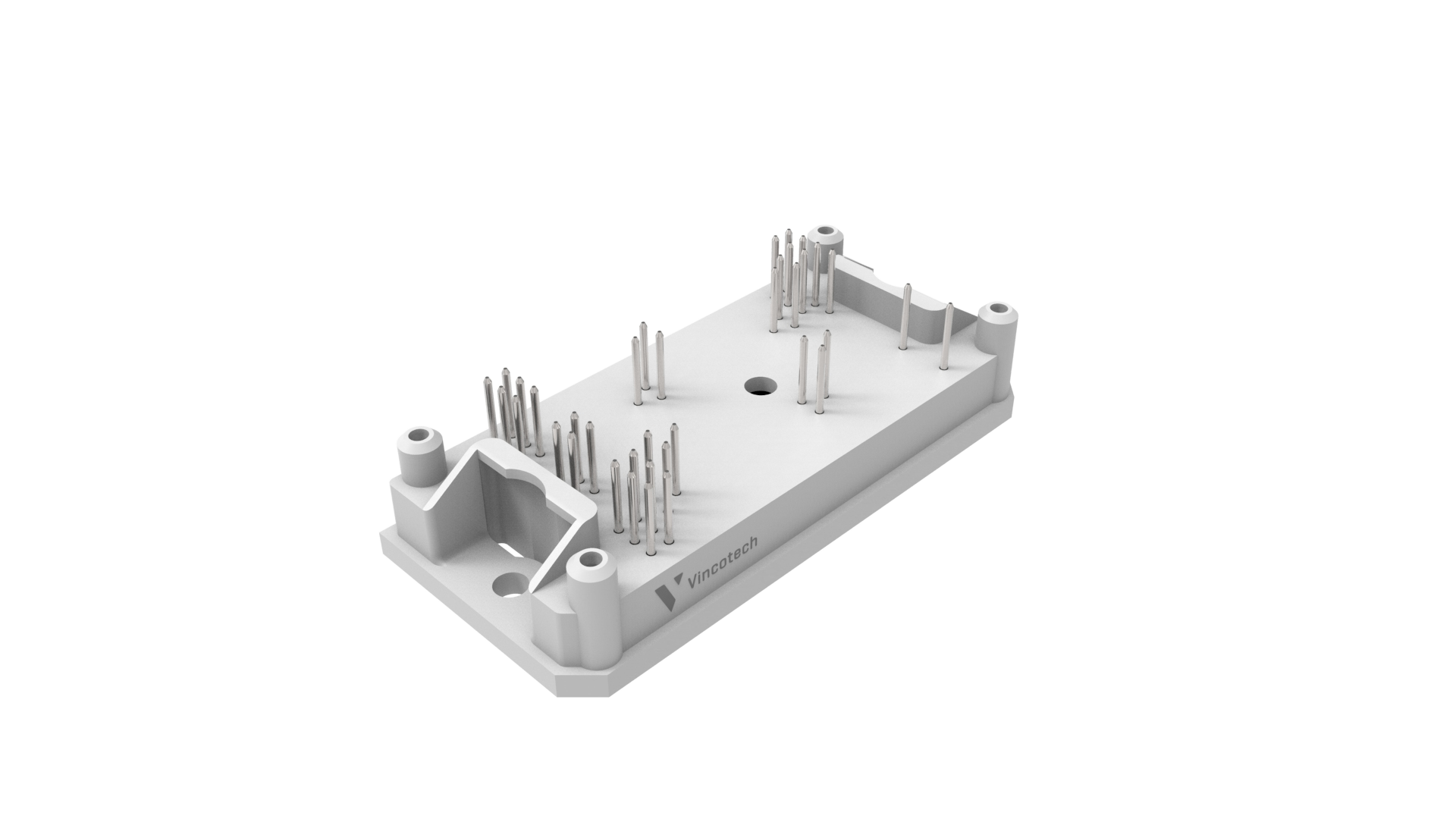

Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 82 mm x 37.4 mm
- Height: 17 mm
- Pin type: Solder pin
flow 1
