flowNPC 0 IGBT

Basic information

• Product line: flowNPC 0 IGBT
• Product status: Series-Ops
• Standard packaging quantity (pieces): 135

Electrical characteristics

• Voltage: 600 V
• Current: 30 A

Three-level NPC (I-Type)

• Kelvin Emitter for improved switching performance
• Neutral Point Clamped Topology (I-Type)
• Temperature sensor

Chip & isolation characteristics

IGBT3

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current

Isolation

• Base isolation: Al₂O₃

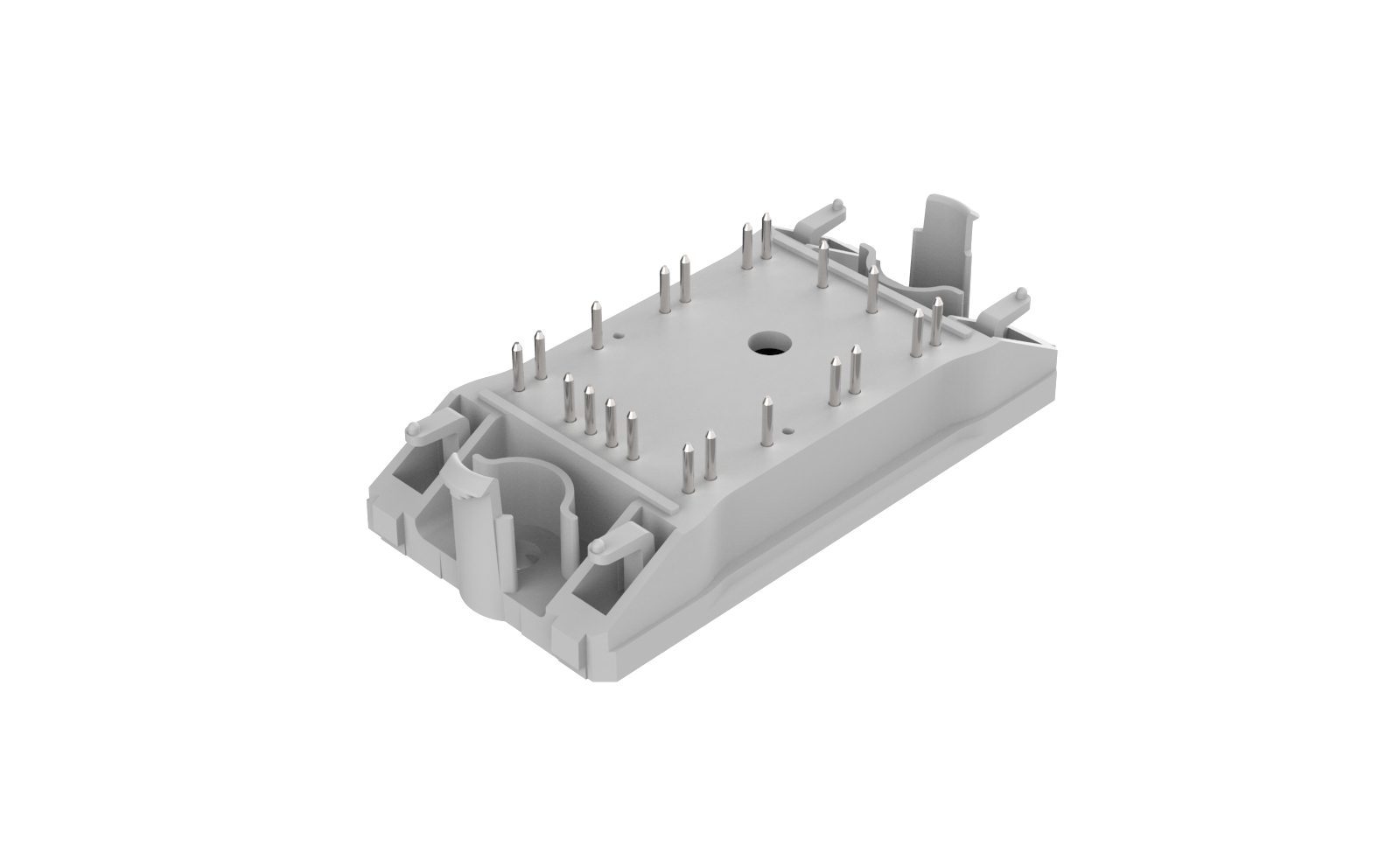

Mechanical & housing characteristics

flow 0

• Mechanical connection to PCB: 2 clips
• Footprint: 68.4 mm x 32.5 mm
• Height: 12 mm
• Pin type: Solder pin
