flowPIM 1

Basic information

• Product line: flowPIM 1
• Product status: Promotion
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 650 V
• Current: 75 A

PIM (CIB)

• Converter+Brake+Inverter
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

IGBT7

• Easy paralleling
• Low collector emitter saturation voltage
• Low turn-off losses
• Positive temperature coefficient

Isolation

• Base isolation: Al₂O₃

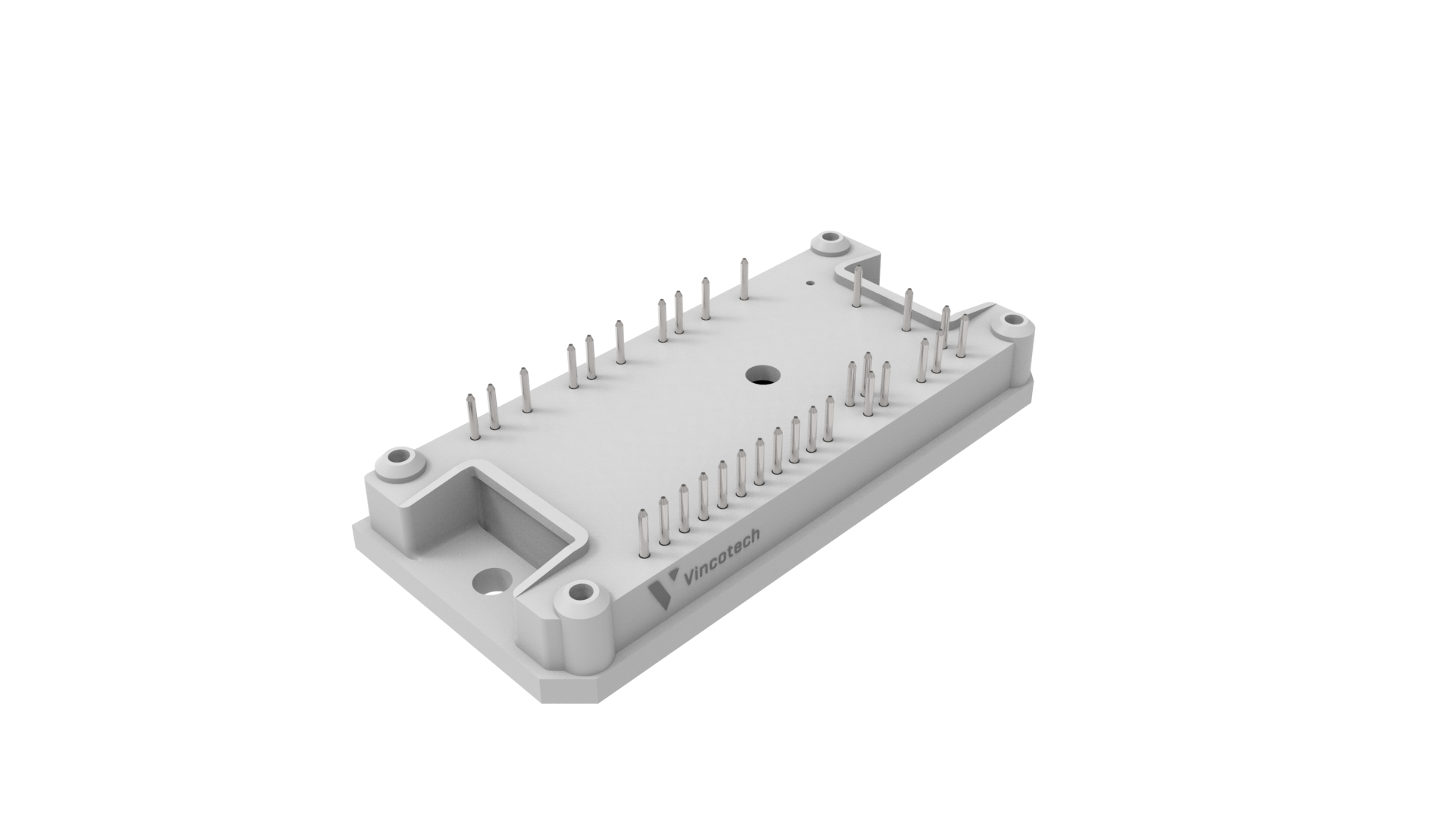

Mechanical & housing characteristics

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Solder pin
