flowANPC 2

Basic information

• Product line: flowANPC 2
• Product status: Series
• Standard packaging quantity (pieces): 36

Electrical characteristics

• Voltage: 650 V
• Current: 300 A

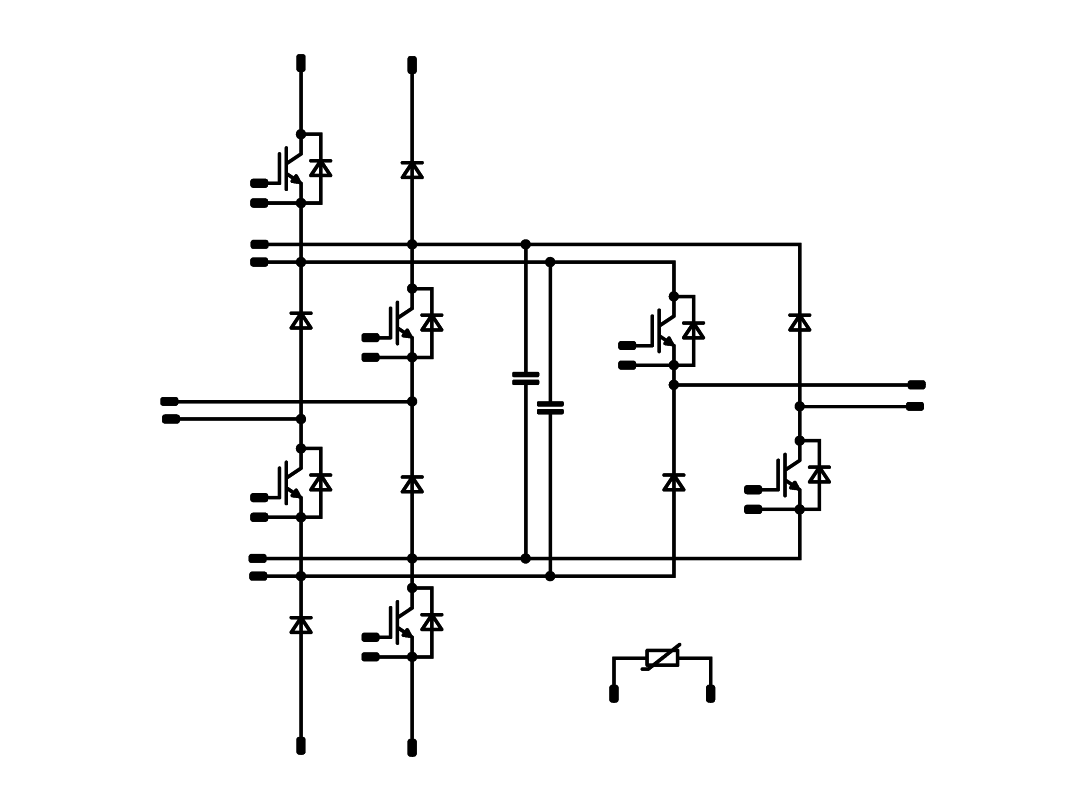

Three-level ANPC

• Advanced Neutral Point Clamped topology
• Integrated snubber capacitor
• Split output for improved switching performance
• Temperature sensor

Chip & isolation characteristics

IGBT S5

• High speed and smooth switching
• Low gate charge
• Very low collector emitter saturation voltage

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

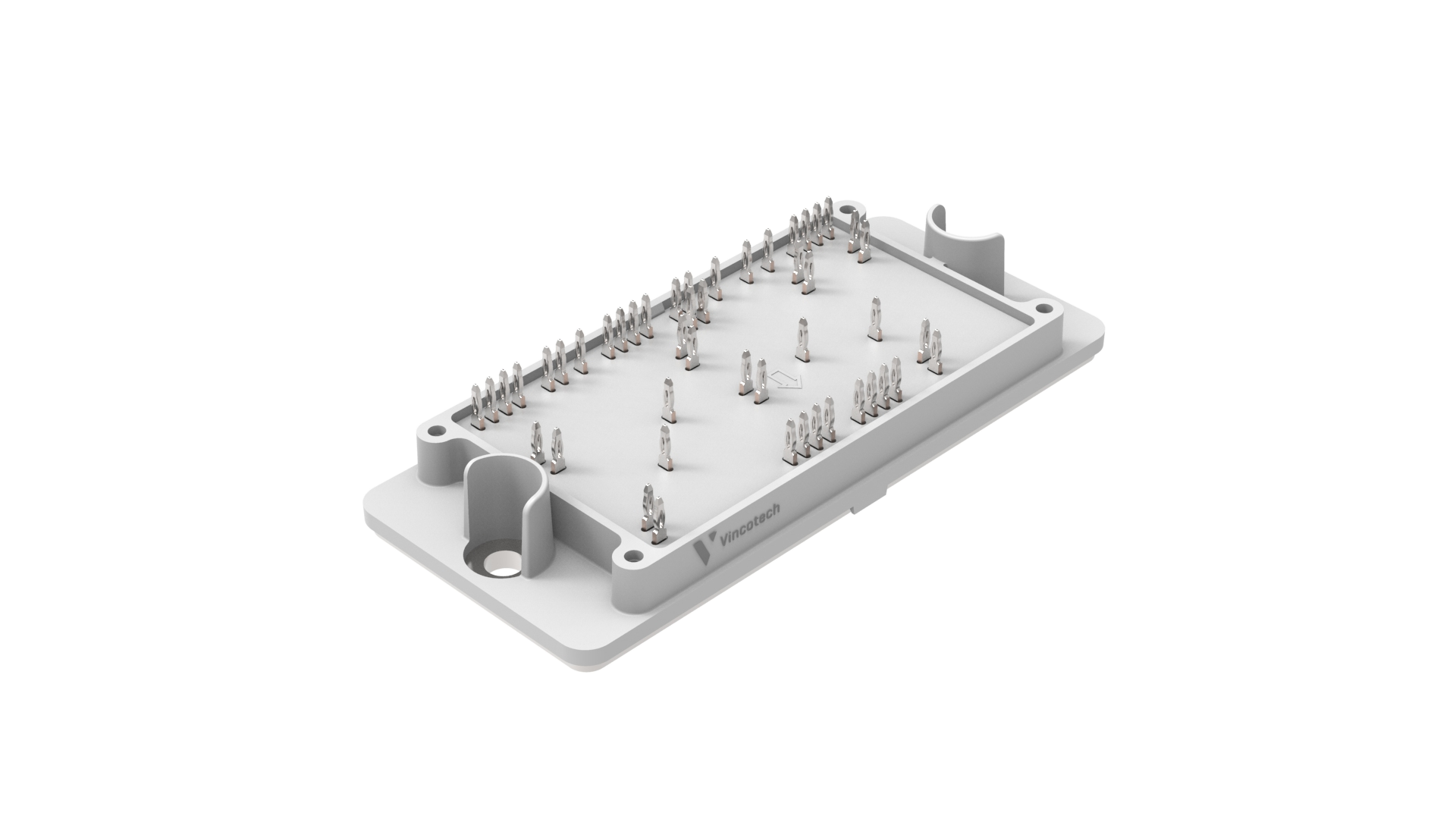

flow 2

• Mechanical connection to PCB: 4 towers
• Footprint: 107.2 mm x 47 mm
• Height: 12 mm
• Pin type: Press-fit pin
