flowFC 0
10-PZ07FCA100RG-LQ35L60Y
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowFC 0
- Product status: Series
- Standard packaging quantity (pieces): 135
Electrical characteristics
- Voltage: 650 V
- Current: 100 A
- Integrated Capacitor
- Integrated NTC
- Three-level FlyingCap inverter
Three-level FC Inverter
Chip & isolation characteristics
- High efficiency in hard switching and resonant topologies
- High speed switching
- Low gate charge
IGBT fast
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 2 clips
- Footprint: 68.4 mm x 32.5 mm
- Height: 12 mm
- Pin type: Press-fit pin

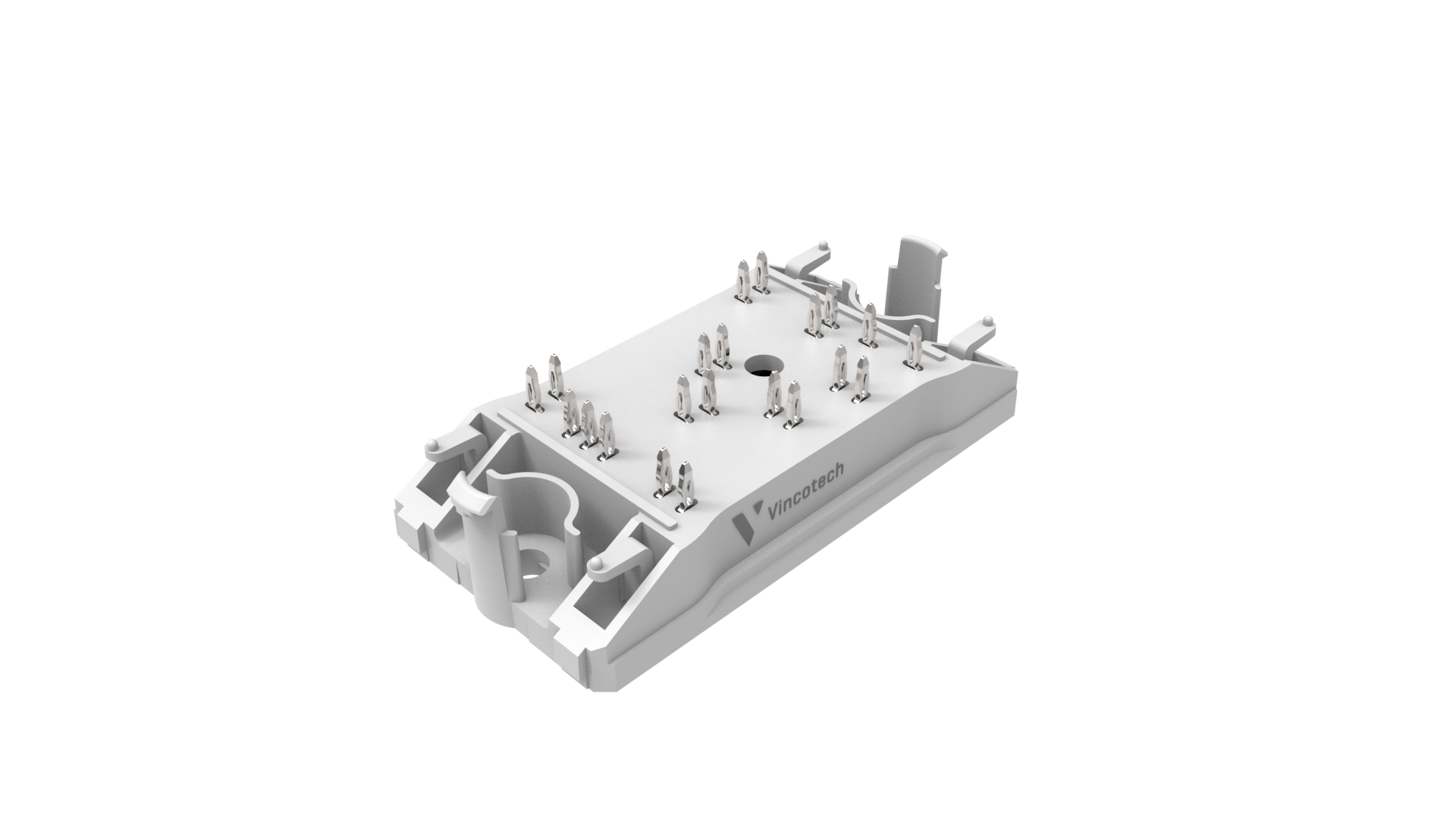

flow 0
