fastPACK 1 SiC
10-FY07ORA120SA-LJ52I58Z
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: fastPACK 1 SiC
- Product status: Samples available
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 650 V
- Current: 120 A
- Temperature sensor
- Single-phase non-controlled rectifier
Ultrafast Rectifier
Chip & isolation characteristics
- No diode recovery losses
- Very fast switching
SiC diode
- Base isolation: Al2O3
Isolation

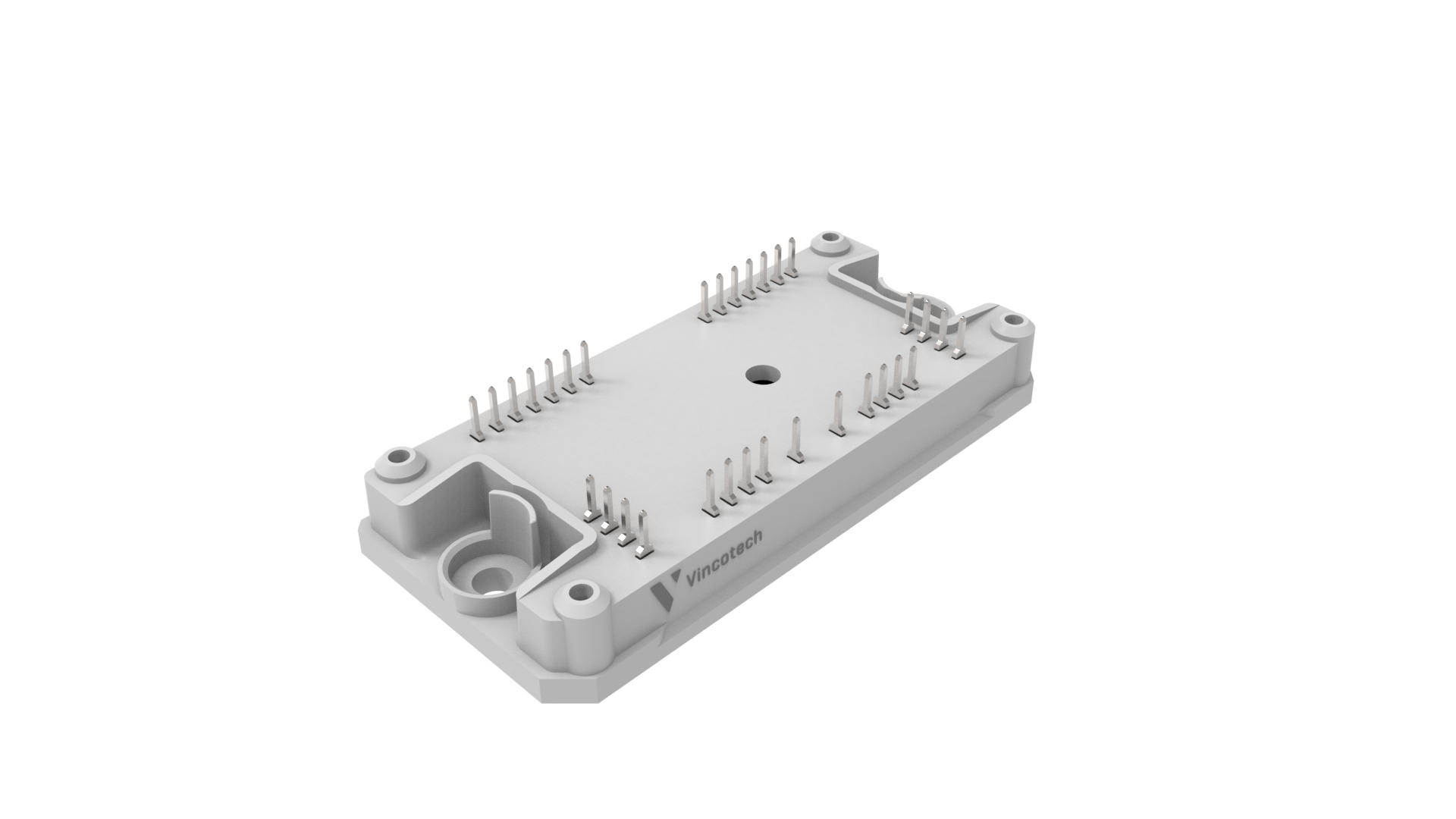

Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 82 mm x 37.4 mm
- Height: 12 mm
- Pin type: Solder pin
flow 1
Thermal documents
PSX-P7 TIM thickness
- Minimum: 45 um
- Maximum: 75 um
- Stencil thickness: 80 um
PTM6000HV TIM thickness
- Minimum: 45 um
- Maximum: 75 um
- Stencil thickness: 80 um
