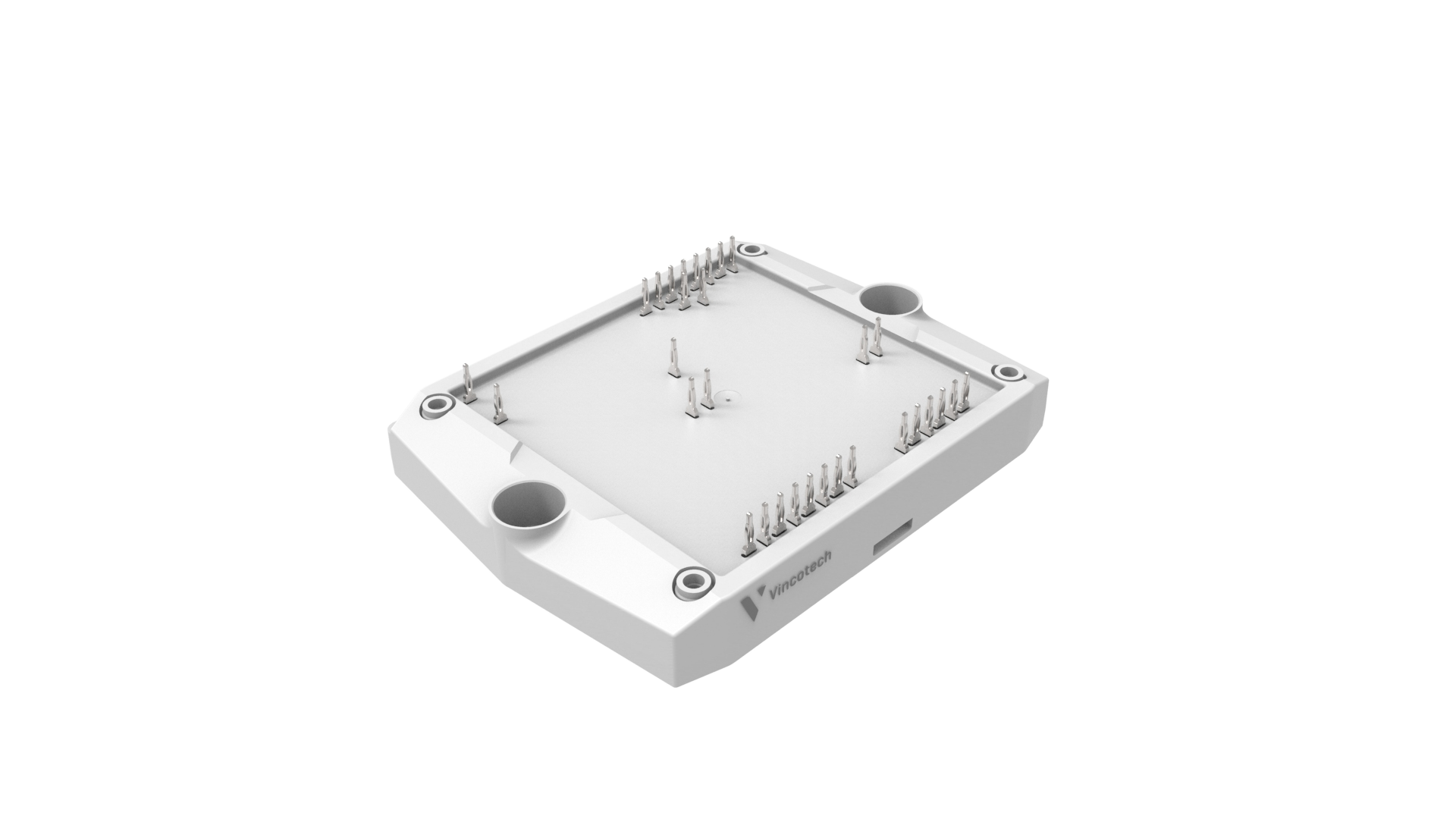

flowANPC S3 split
B0-SP10NAD600S7-LQ79F08T
Topology Housing Voltage Current Main chip technology Product status
Three-level ANPC flow S3 950 V 600 A IGBT S7 Series
Product description
Basic information
- Product line: flowANPC S3 split
- Product status: Series
- Standard packaging quantity (pieces): 45
Electrical characteristics
- Voltage: 950 V
- Current: 600 A
- Temperature sensor
- Advanced Neutral Point Clamped topology
- Integrated Capacitor
- Split topology
Three-level ANPC
Chip & isolation characteristics
- Low collector emitter saturation voltage
- High speed and smooth switching
IGBT S7
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: no towers
- Footprint: 81.8 mm x 61.3 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow S3
