flowSPFC 0
10-FZ071SA100SM02-L526L18
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowSPFC 0
- Product status: Series
- Standard packaging quantity (pieces): 135
Electrical characteristics
- Voltage: 650 V
- Current: 100 A

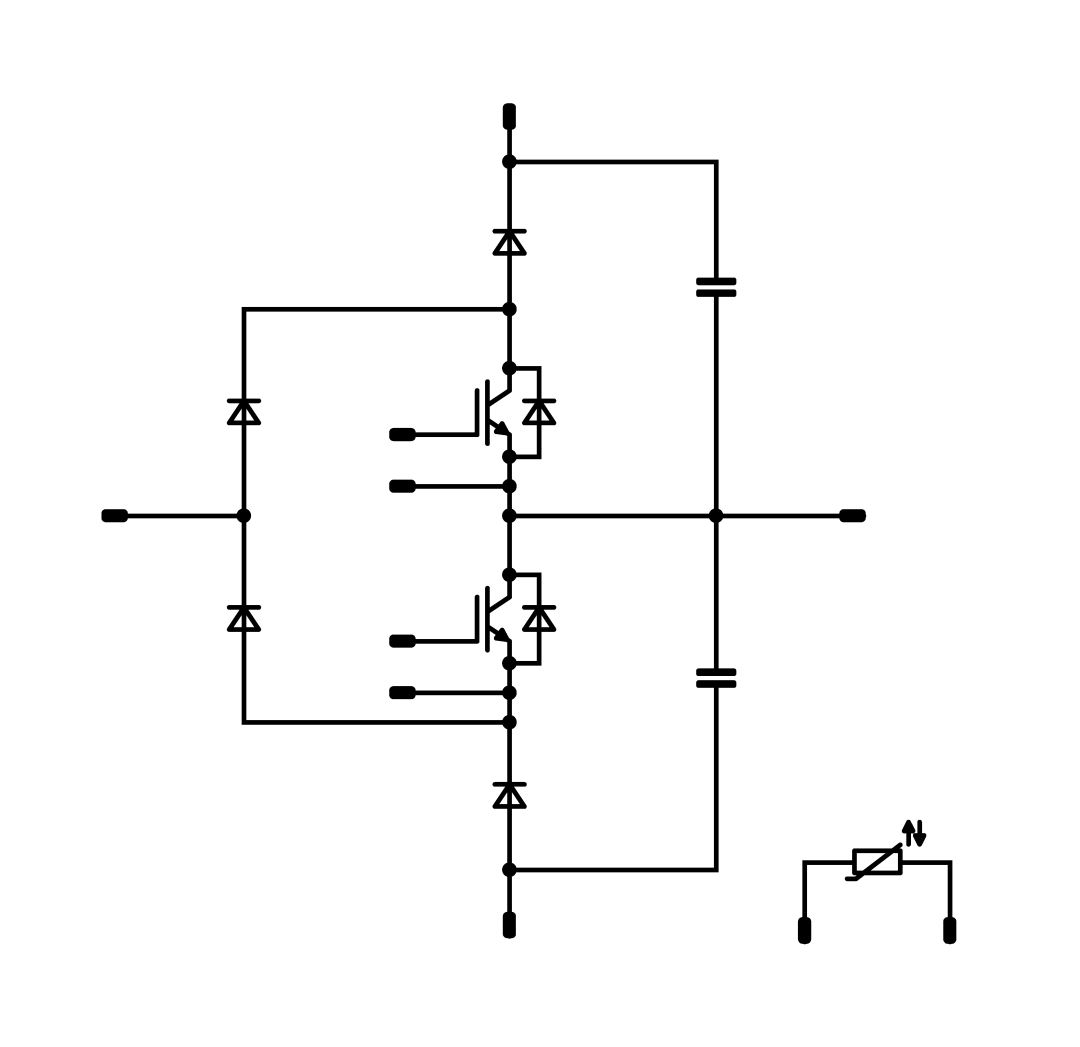

- Symmetric Boost PFC
- Kelvin Emitter for improved switching performance
- Integrated DC capacitor
- Temperature sensor
PFC (Three-phase applications)
Chip & isolation characteristics
- High efficiency in hard switching and resonant topologies
- High speed switching
- Low gate charge
IGBT H5
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 2 clips
- Footprint: 68.4 mm x 32.5 mm
- Height: 12 mm
- Pin type: Solder pin
flow 0
