flowBOOST S3 triple

Basic information

• Product line: flowBOOST S3 triple
• Product status: Series-Ops
• Standard packaging quantity (pieces): 45

Electrical characteristics

• Voltage: 950 V
• Current: 100 A

Three-level FC Booster

• Kelvin Emitter for improved switching performance
• Temperature sensor
• Triple Flying Cap Booster
• Auxiliary diodes for FC pre-charge (patent pending)

Chip & isolation characteristics

IGBT S7

• Low collector emitter saturation voltage
• High speed and smooth switching

Isolation

• Base isolation: Al₂O₃

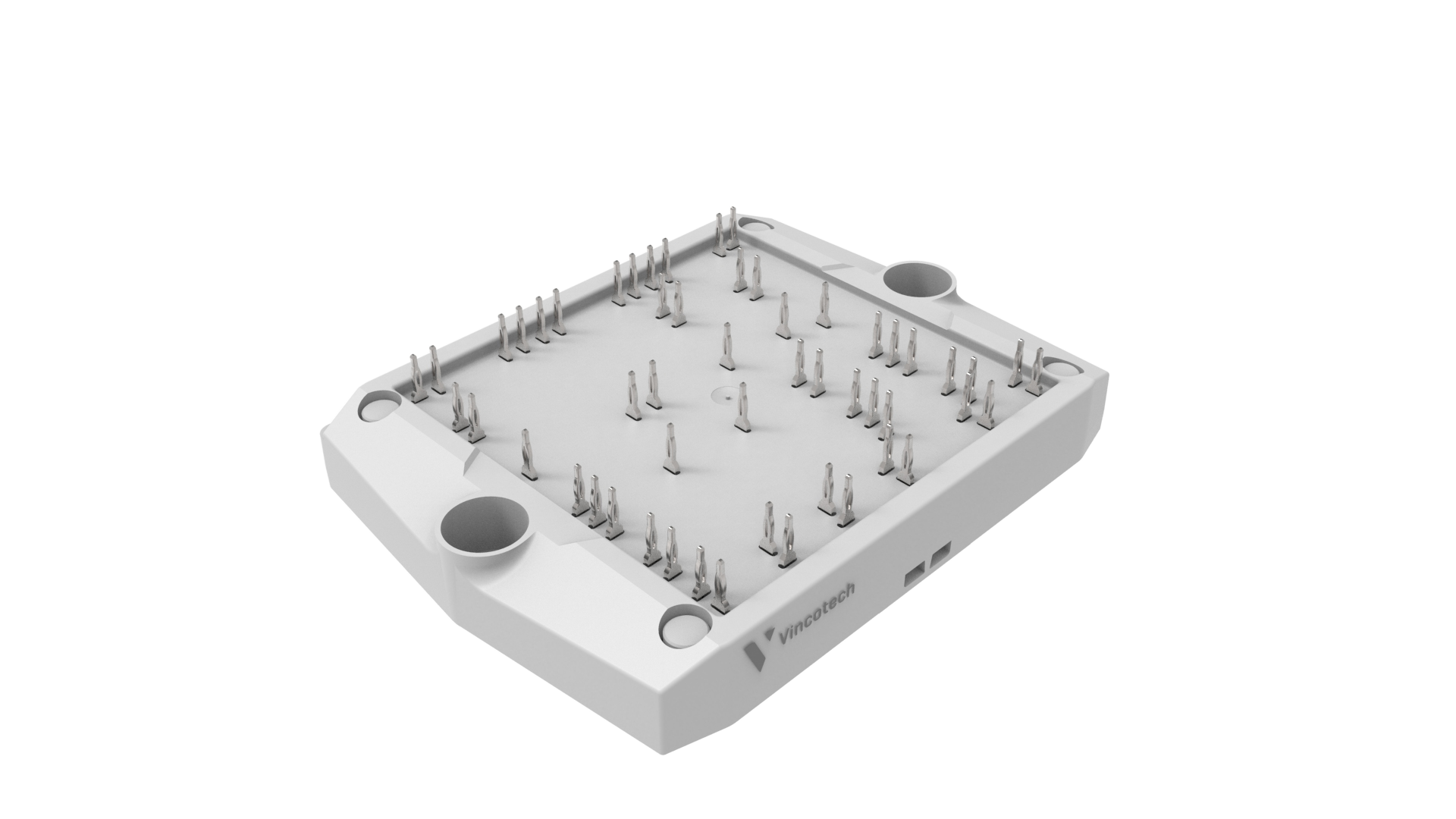

Mechanical & housing characteristics

flow S3

• Mechanical connection to PCB: no towers
• Footprint: 81.8 mm x 61.3 mm
• Height: 12 mm
• Pin type: Press-fit pin
