flowNPC E3BP

Basic information

• Product line: flowNPC E3BP
• Product status: Samples available
• Standard packaging quantity (pieces): 24

Electrical characteristics

• Voltage: 1400 V
• Current: 560 A

Three-level NPC (I-Type)

• Kelvin Emitter for improved switching performance
• Temperature sensor
• Neutral Point Clamped Topology (I-Type)

Chip & isolation characteristics

IGBT7 H7

• High speed switching
• Low collector emitter saturation voltage
• Low turn-off losses
• Optimized for hard switching topologies
• Positive temperature coefficient

Isolation

• Base isolation: Al₂O₃

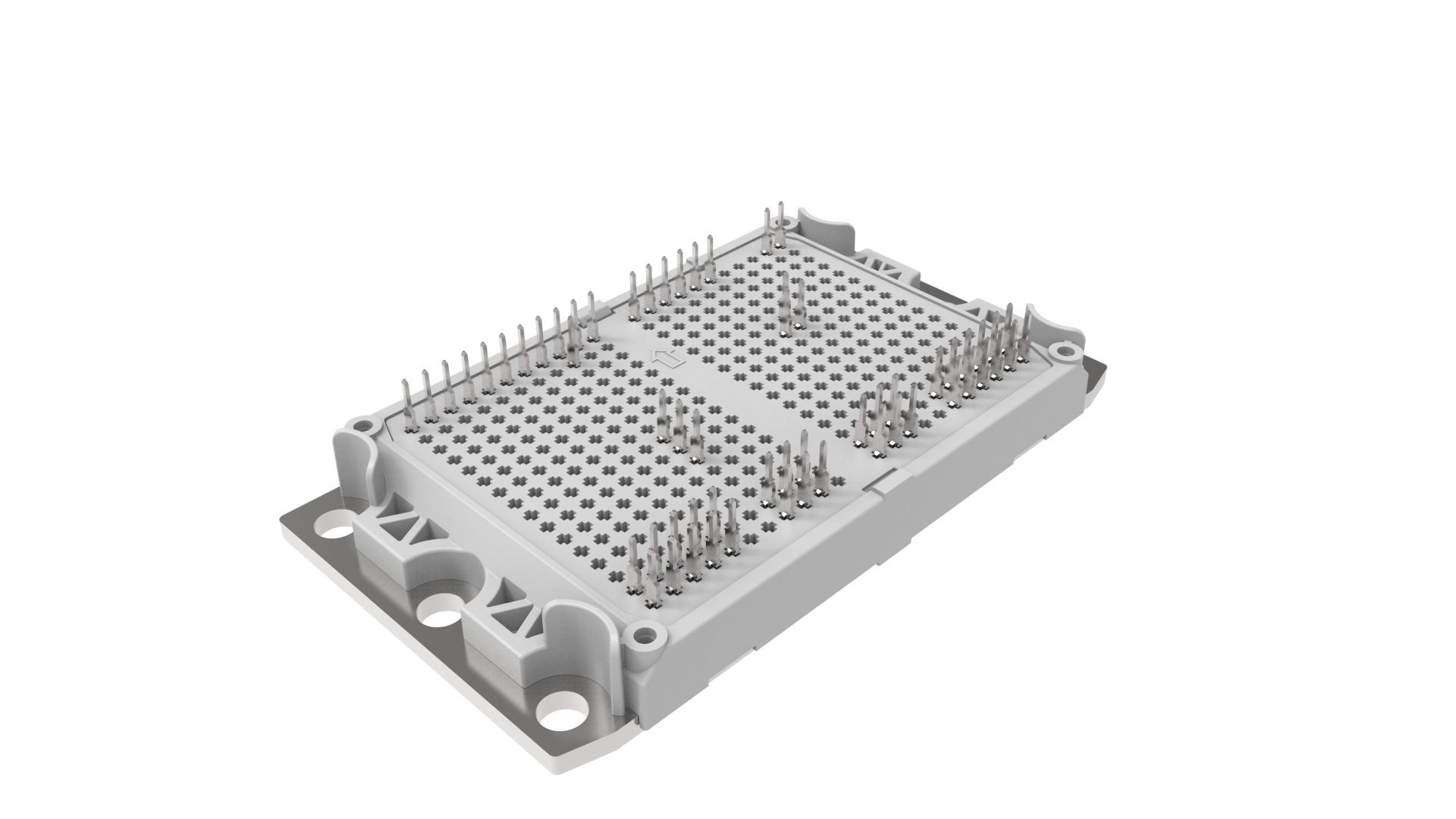

Mechanical & housing characteristics

flow E3BP

• Mechanical connection to PCB: 4 towers
• Footprint: 109.6 mm x 59.7 mm
• Height: 15 mm
• Pin type: Solder pin
