flow90PIM 1

Basic information

• Product line: flow90PIM 1
• Product status: Series
• Standard packaging quantity (pieces): 80

Electrical characteristics

• Voltage: 1200 V
• Current: 25 A

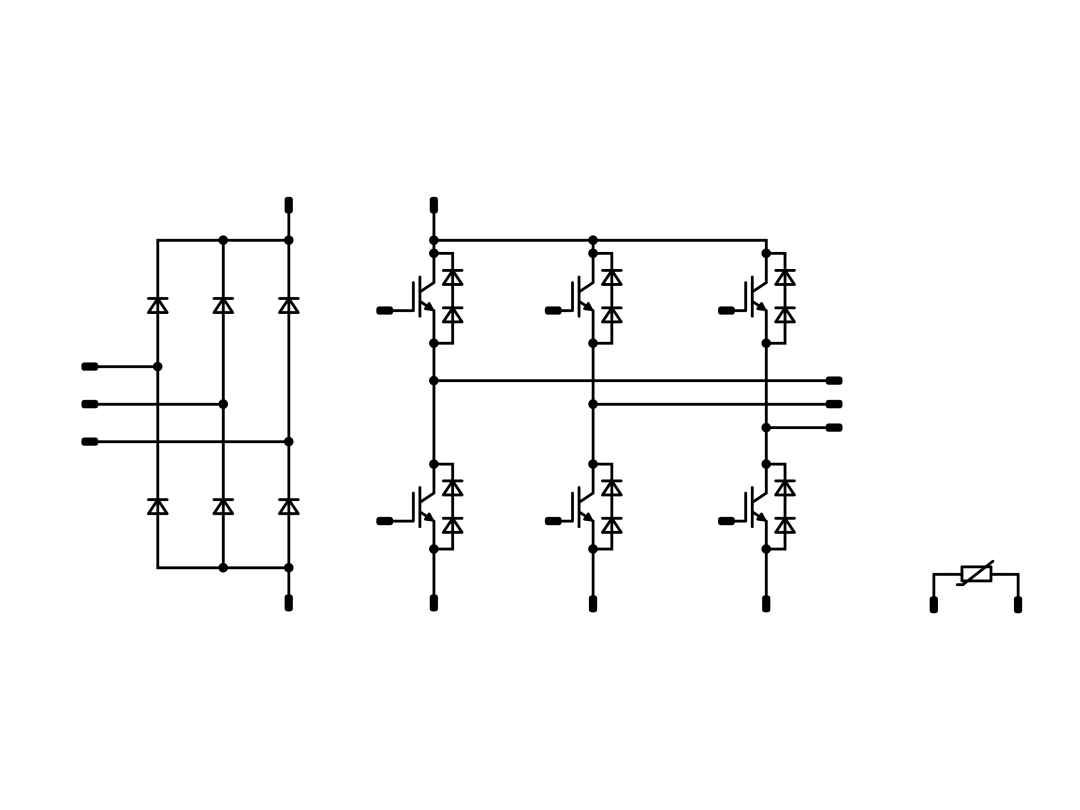

PIM (CIB)

• Converter+Inverter
• Open Emitter configuration
• Tandem diode
• Temperature sensor

Chip & isolation characteristics

IGBT M7

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current
• Switching optimized for EMC

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

flow 90 1

• Mechanical connection to PCB: 2 clips
• Footprint: 84 mm x 30.5 mm
• Pin type: Solder pin
