flowPIM E2
10-E212PMA025M7-L187A78Z
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowPIM E2
- Product status: Series
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 1200 V
- Current: 25 A
- Open Emitter configuration
- Temperature sensor
- Converter+Brake+Inverter
PIM (CIB)
Chip & isolation characteristics
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
- Switching optimized for EMC
IGBT M7
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 62.8 mm x 57.7 mm
- Height: 12 mm
- Pin type: Solder pin

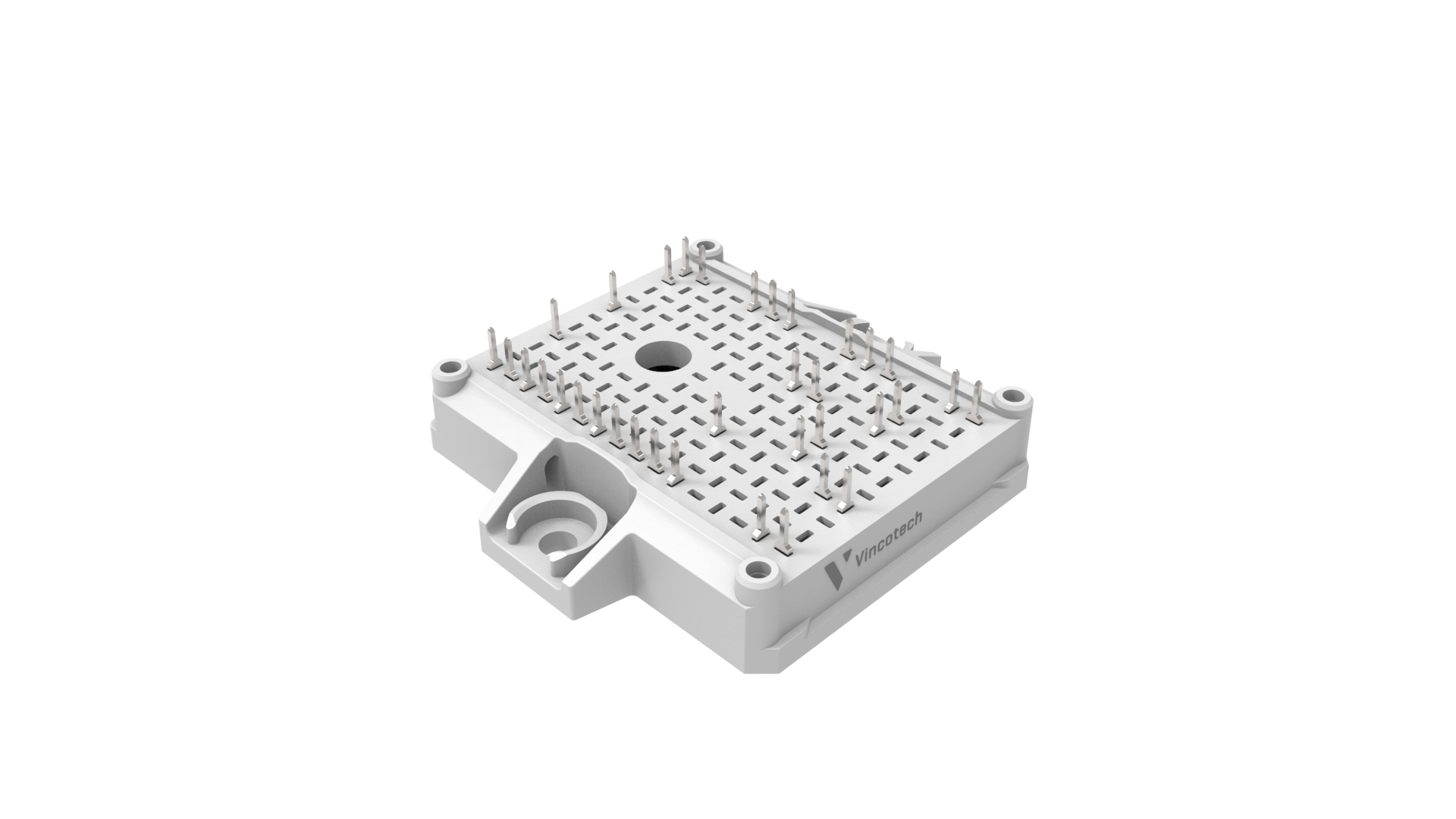

flow E2
