flow3xNPFC 1
10-TY12NMB030SM-L394L08
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flow3xNPFC 1
- Product status: Series
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 650 V
- Current: 30 A
- 3xNeutral Boost PFC
- Temperature sensor
PFC (Three-phase applications)
Chip & isolation characteristics
- High efficiency in hard switching and resonant topologies
- High speed switching
- Low gate charge
IGBT H5
- Base isolation: Al2O3
Isolation

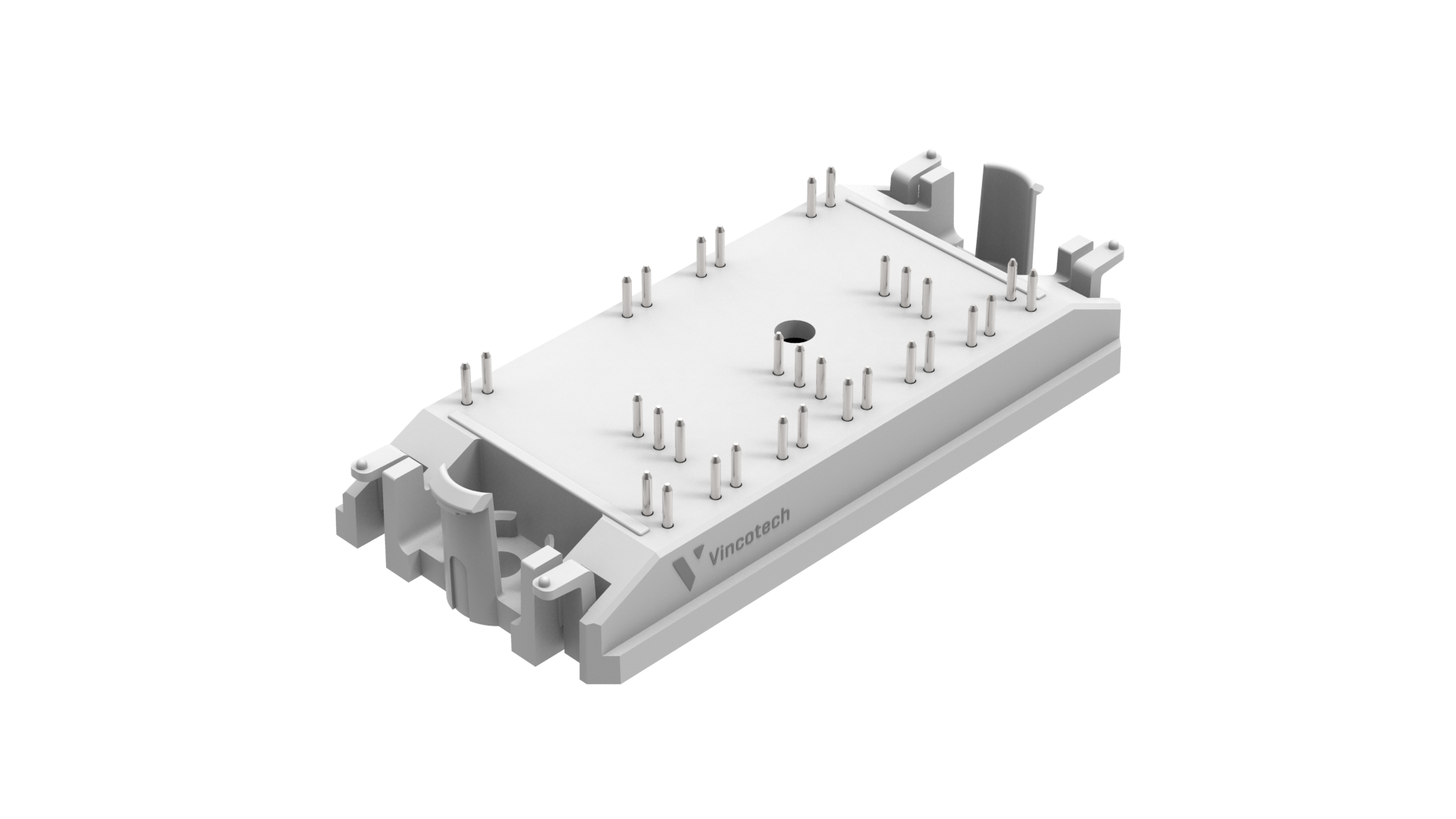

Mechanical & housing characteristics
- Mechanical connection to PCB: 2 clips
- Footprint: 84.6 mm x 37.4 mm
- Height: 12 mm
- Pin type: Solder pin
flow 1
