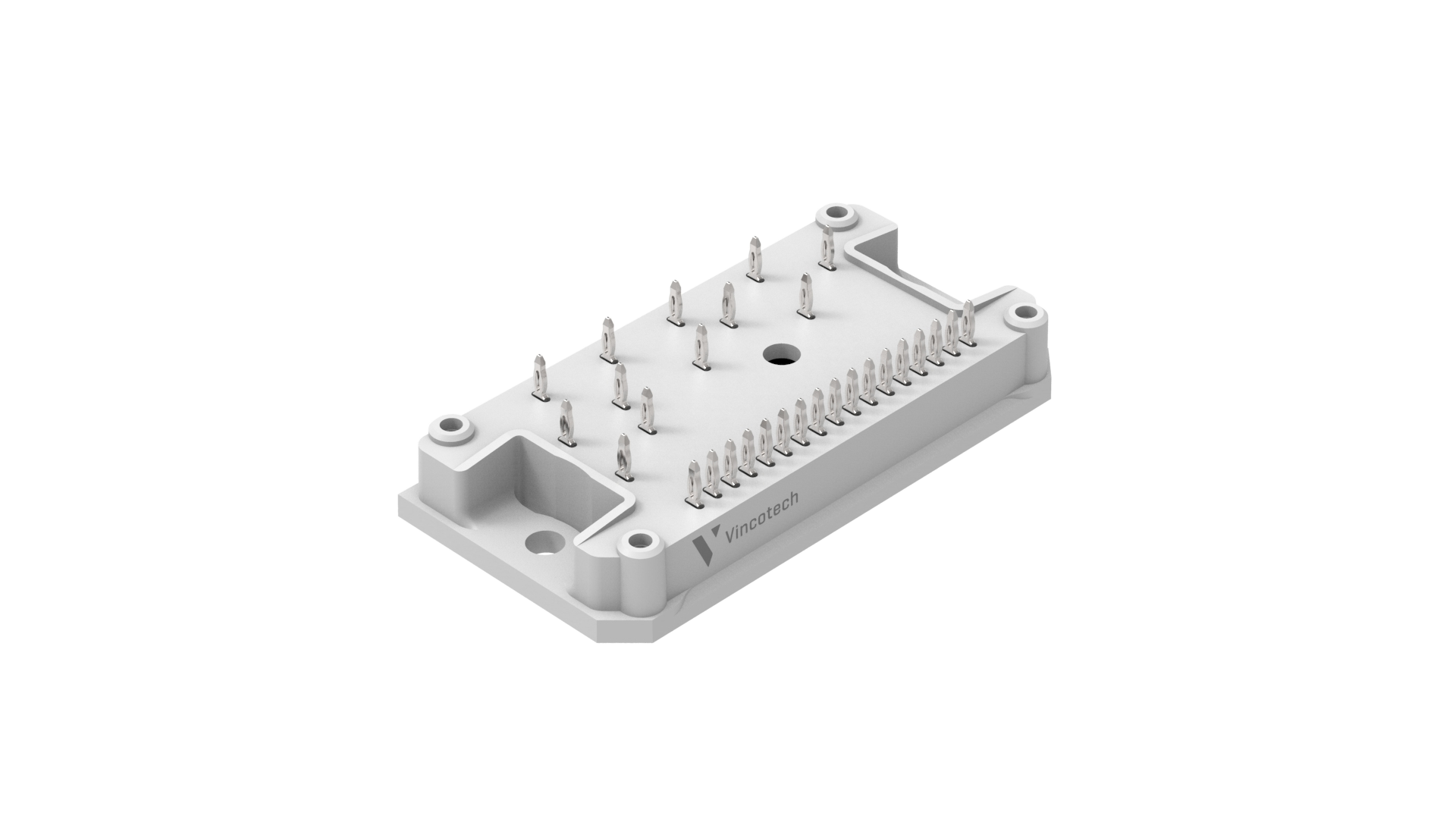

flowIPM 1B (CI)

Basic information

• Product line: flowIPM 1B (CI)
• Product status: Series
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 8 A

IPM (CIB)

• Complete Bootstrap Circuit
• Converter+Inverter
• Emitter Shunts
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

IGBT4

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current

Isolation

• Base isolation:

Mechanical & housing characteristics

flow 1B

• Mechanical connection to PCB: 4 towers
• Footprint: 72 mm x 36 mm
• Height: 12 mm
• Pin type: Press-fit pin
