flowPIM 1 + PFC

Basic information

• Product line: flowPIM 1 + PFC
• Product status: Series-Ops
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 600 V
• Current: 50 A

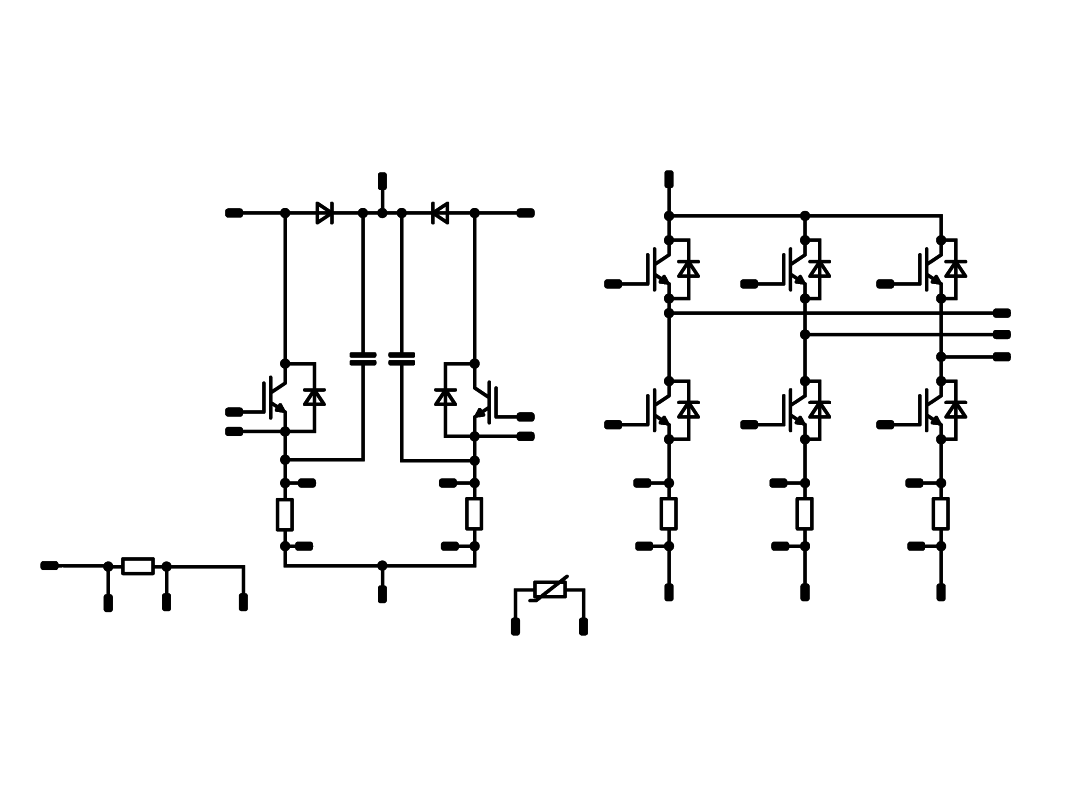

PIM+PFC (CIP)

• 2-leg interleaved PFC + Inverter
• On-board Capacitors
• Open Emitter configuration
• Shunt
• Temperature sensor

Chip & isolation characteristics

IGBT fast

• 5us short circuit withstand time
• High speed switching
• Low EMI
• Short tail current

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

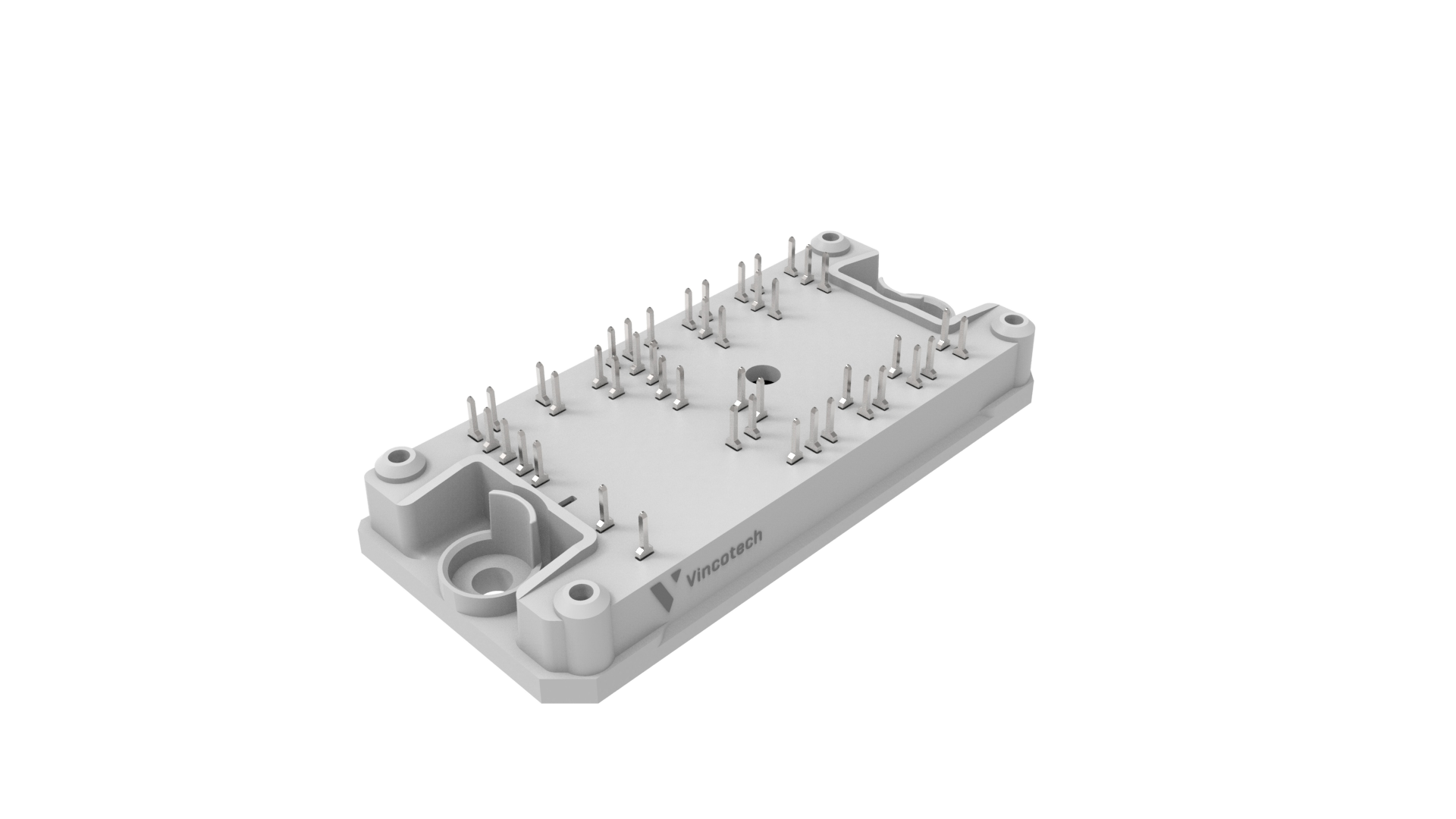

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Solder pin
