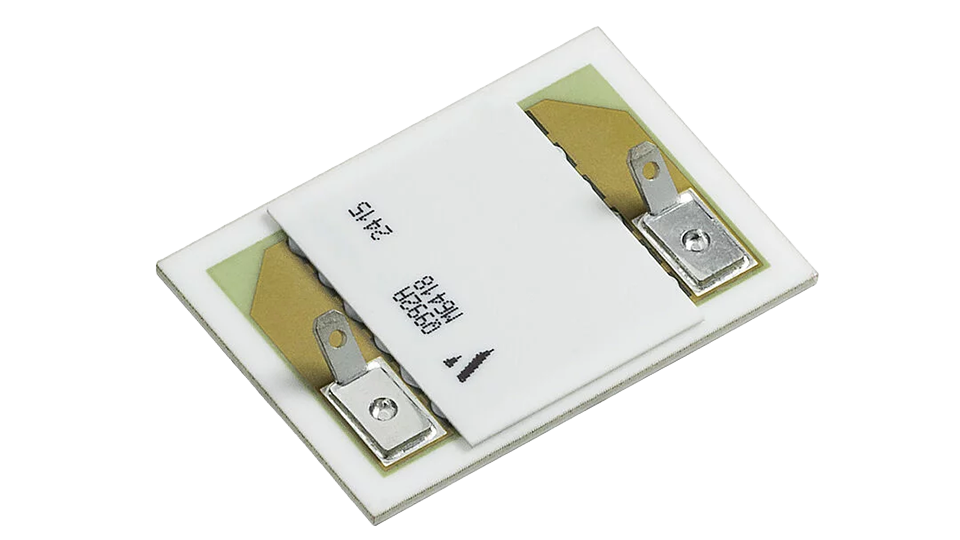

Brake resistor S30814-Q992-A
)
The standard brake resistor, built using thick film on ceramic technology, serves as a robust component capable of handling high-energy pulse loads. Engineered for mounting on a heat sink with pre-applied thermal interface material, the Q992-A provides an economic and easy assembly with excellent performance. This resistor is designed for motor drives and applications with high energy pulses.
Product details
Resistance value: 400 Ω / 20%
2 kW peak power
Reliable thick-film technology with 4 kV isolation to heatsink
Ultra-low profile
Easy spring fixing on heatsink
Fast-on terminals
Available with pre-applied thermal interface material
Enhancing reliability with Vincotech’s thick-film technology
Individual resistor values with accurate laser trimming (also active trimming)
Relative trimming and functional trimming
Low inductive resistors
High-voltage, companion dissipation and pulse companion capabilities
Ultra-low temperature coefficient
High-density multi-layer available
Best reliability
