flowPACK 1

Basic information

• Product line: flowPACK 1
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 50 A

Sixpack

• Inverter
• Kelvin Emitter for improved switching performance
• Temperature sensor

Chip & isolation characteristics

IGBT M7

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current
• Switching optimized for EMC

Isolation

• Base isolation: AlN

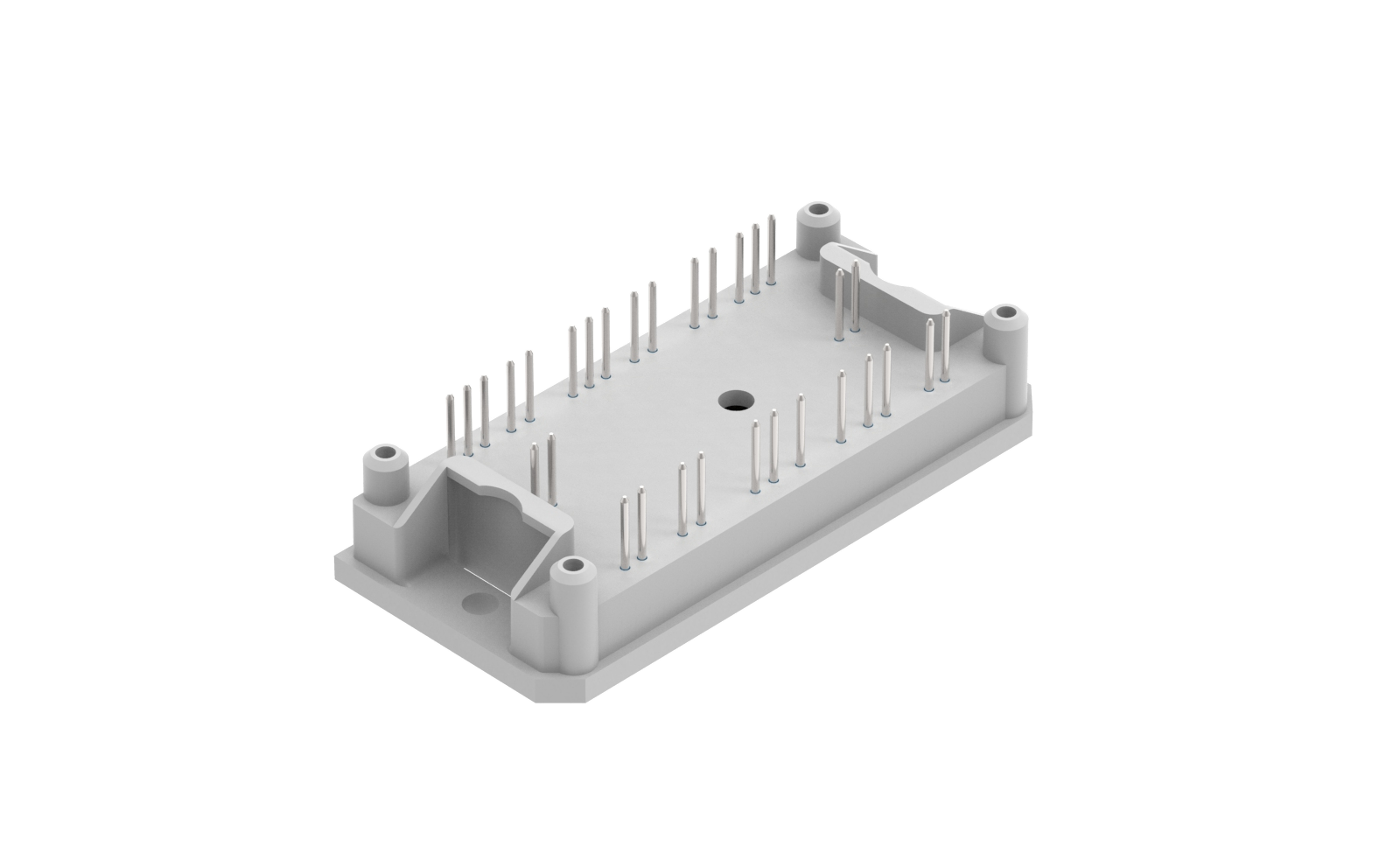

Mechanical & housing characteristics

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 17 mm
• Pin type: Solder pin
