flowPIM 0

Basic information

• Product line: flowPIM 0
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 135

Electrical characteristics

• Voltage: 650 V
• Current: 20 A

PIM (CIB)

• Converter+Inverter
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

IGBT7

• Easy paralleling
• Low collector emitter saturation voltage
• Low turn-off losses
• Positive temperature coefficient

Isolation

• Base isolation: Al₂O₃

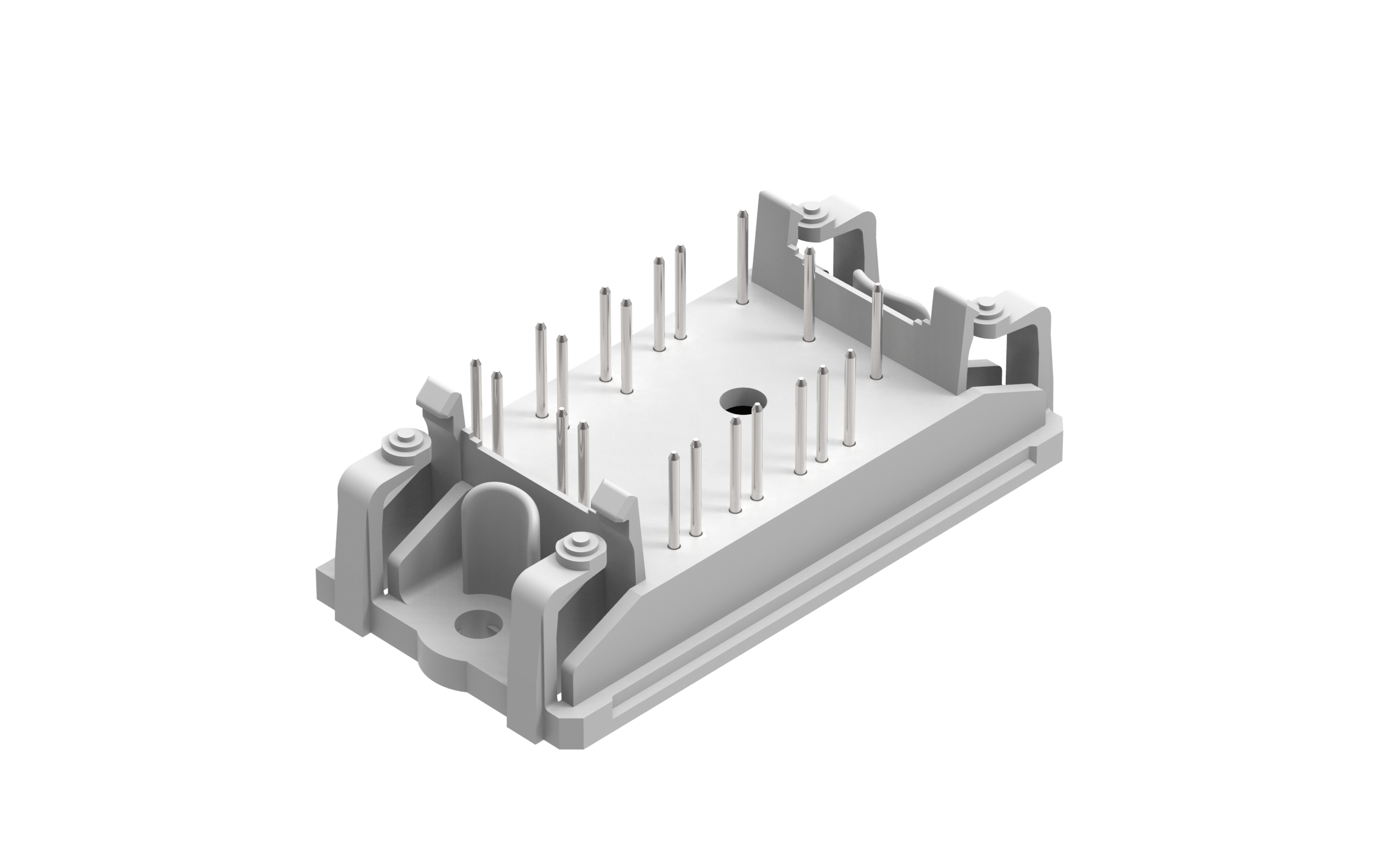

Mechanical & housing characteristics

flow 0

• Mechanical connection to PCB: 4 clips
• Footprint: 66 mm x 32.5 mm
• Height: 17 mm
• Pin type: Solder pin
