Solid State Relays (SSR)
)
The fully electronic relays potted into two standard relay housings with a standardized pin configuration, enabling innovative, reliable, and wear‑free switching. All relays operate without noise, sparks, or contact bounce and require no changes to existing designs or PCB layouts. These solid‑state relays (SSRs) are engineered for interface applications, signal coupling, and process control.
Product details
Small dimensions
Full compatibility to the electromechanical standard relay SNR
Up to 3.5 A DC forward current, very low power loss due to low R(DS)on
High switching speed and endurance
Silent, spark- and bounce-free switching
Not sensitive to vibration, impact or extreme environmental conditions
High packing density
UL recognized
Topologies
MOSFETs
P/N | Housing | IN | OUT | Downloads |
|---|---|---|---|---|
V23109-S2411-D020 | slimSSR | 5 V | 24 V/2 A | |

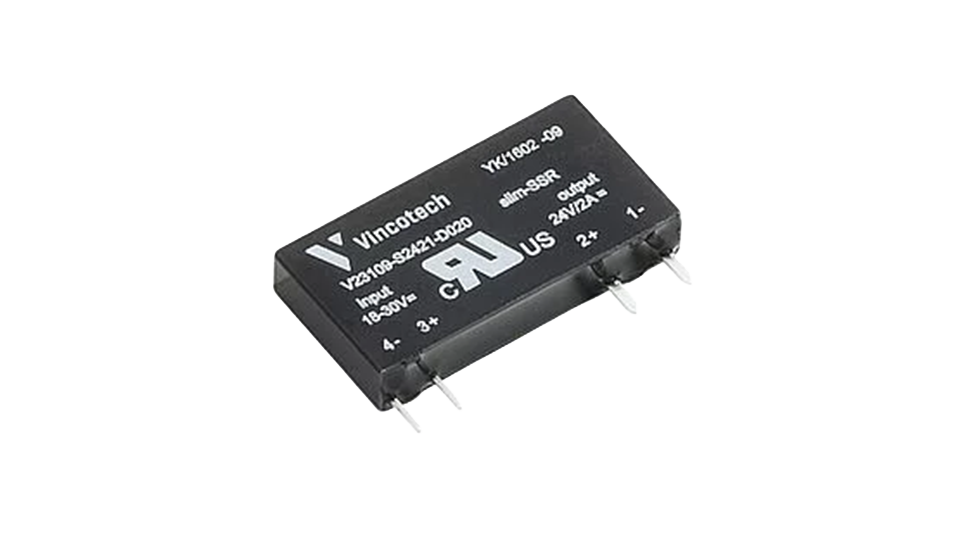

V23109-S2421-D020 | slimSSR | 24 V | 24 V/2A | |
V23109-S2441-D020 | slimSSR | 60 V | 24 V/2A | |
V23109-S2421-R030 | R-switch | 24 V | 24 V/3.5 A |
TRIAC
P/N | Housing | IN | OUT | Downloads |
|---|---|---|---|---|
V23109-S4214-D010 | slimSSR | 5 V | 240 V AC/1 A | |
V23109-S4224-D010 | slimSSR | 24 V | 240 V AC/1 A | |
V23109-S4224-R010 | R-switch | 24 V | 240 V AC/1 A |
BIPOLAR
P/N | Housing | IN | OUT | Downloads |
|---|---|---|---|---|
V23109-S2411-D001 | slimSSR | 5 V | 48 V/100 mA | |
V23109-S2421-D001 | slimSSR | 24 V | 48 V/100 mA | |
V23109-S2441-D001 | slimSSR | 60 V | 48 V/100 mA |
