flowNPC 2
30-FT12NIA150SH-LG09F08
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowNPC 2
- Product status: Series-Ops
- Standard packaging quantity (pieces): 36
Electrical characteristics
- Voltage: 1200 V
- Current: 150 A
- Kelvin Emitter for improved switching performance
- Temperature sensor
- Neutral Point Clamped Topology (I-Type)
- Tandem diode
Three-level NPC (I-Type)
Chip & isolation characteristics
- Easy paralleling
- High speed switching
- Low switching losses
IGBT4 HS
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 107.2 mm x 47 mm
- Height: 13 mm
- Pin type: Solder pin

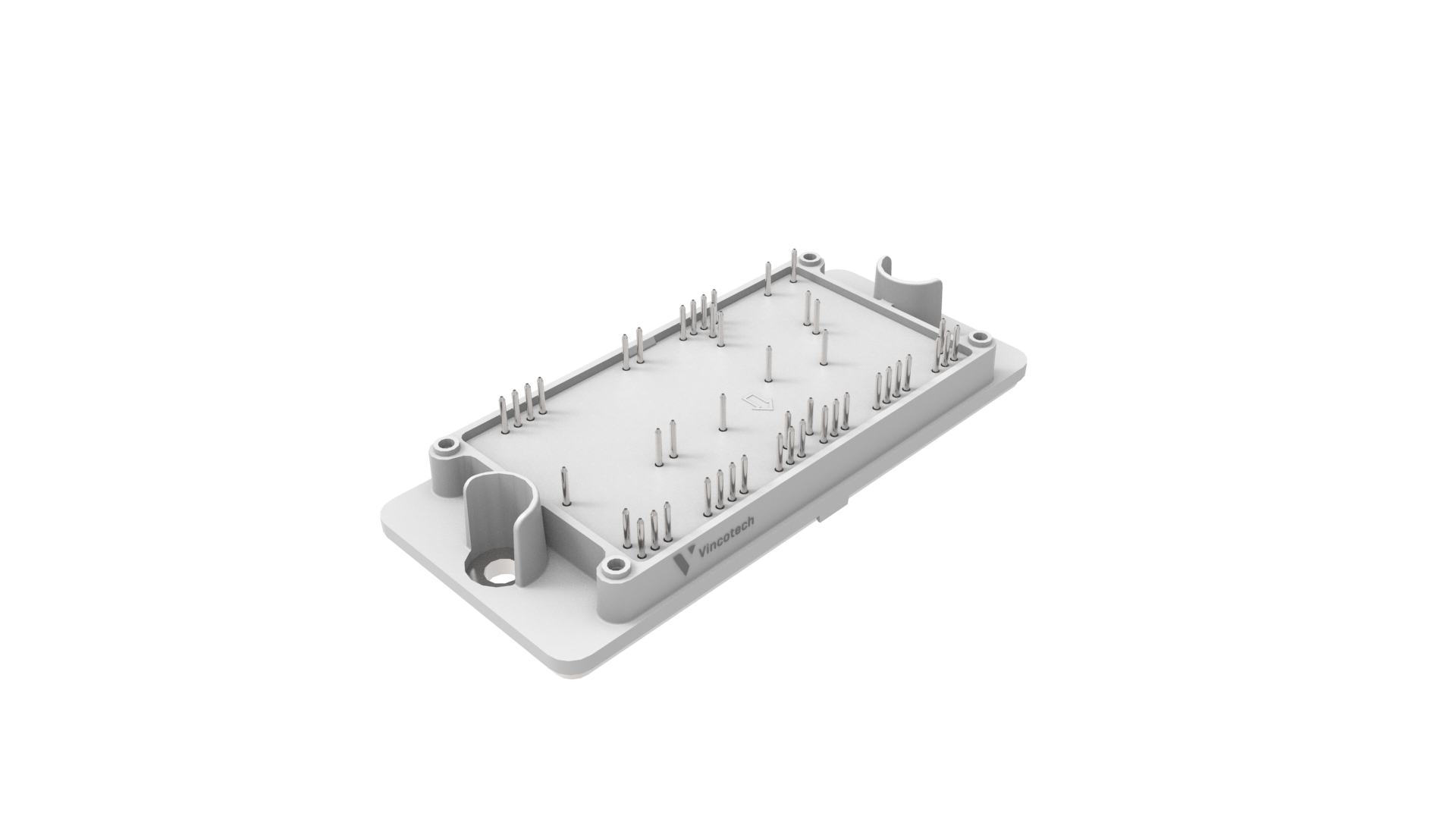

flow 2
