fastPACK E2 SiC

Basic information

• Product line: fastPACK E2 SiC
• Product status: Series
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 165 A
• R(DS)on: 8.67 mOhm

H-Bridge

• Kelvin Emitter for improved switching performance
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• Fast intrinsic diode with low reverse recovery
• High blocking voltage with low on-resistance
• High speed switching with low capacitance

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

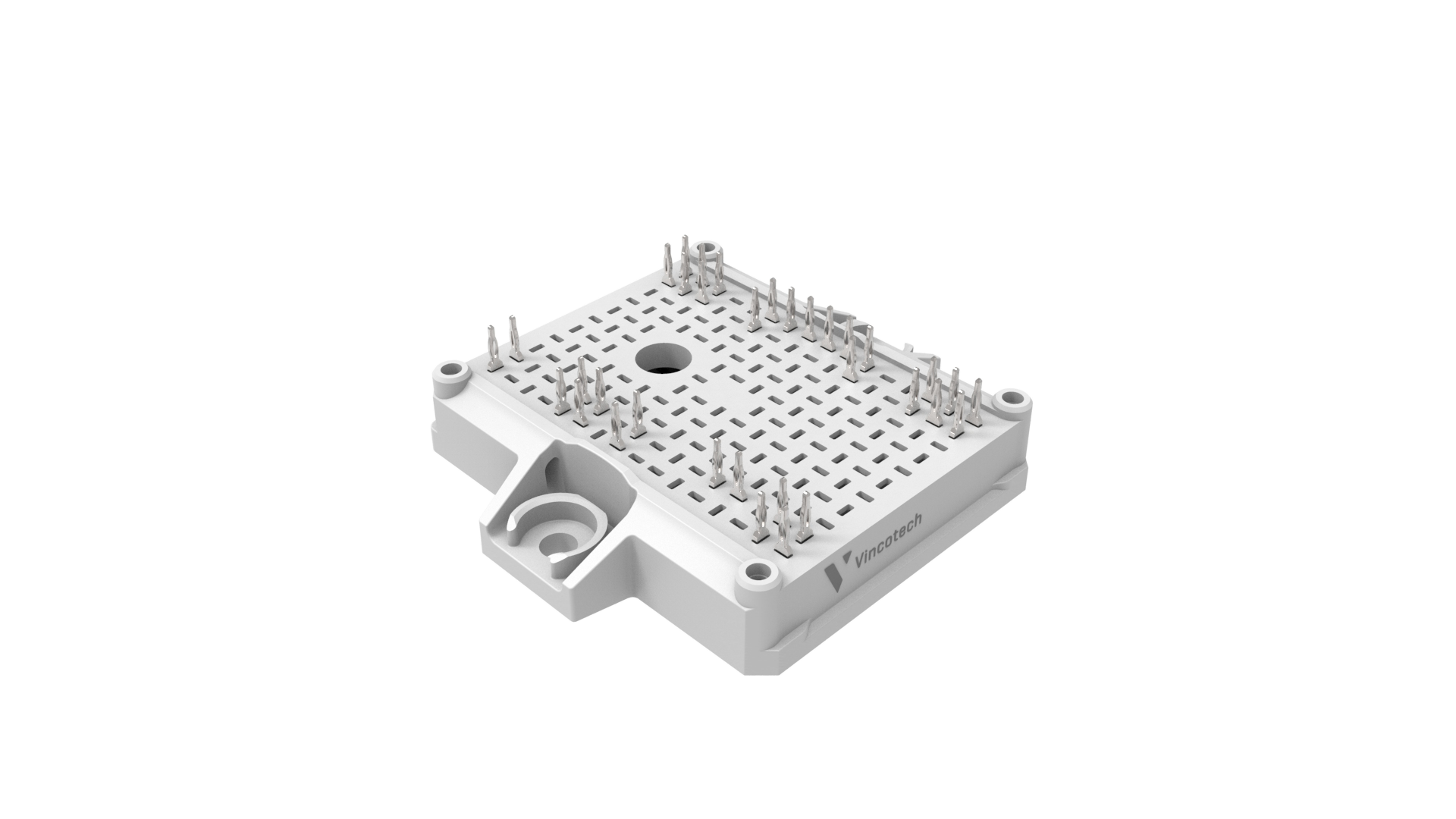

flow E2

• Mechanical connection to PCB: 4 towers
• Footprint: 62.8 mm x 57.7 mm
• Height: 12 mm
• Pin type: Press-fit pin
