flowBOOST 2 dual

Basic information

• Product line: flowBOOST 2 dual
• Product status: Series
• Standard packaging quantity (pieces): 36

Electrical characteristics

• Voltage: 1200 V
• Current: 200 A

Three-level FC Booster

• Auxiliary diodes for FC pre-charge (patent pending)
• Dual Flying Cap Booster
• Kelvin Emitter for improved switching performance
• Temperature sensor

Chip & isolation characteristics

IGBT7 H7

• High speed switching
• Low collector emitter saturation voltage
• Low turn-off losses
• Optimized for hard switching topologies
• Positive temperature coefficient

Isolation

• Base isolation: Al₂O₃

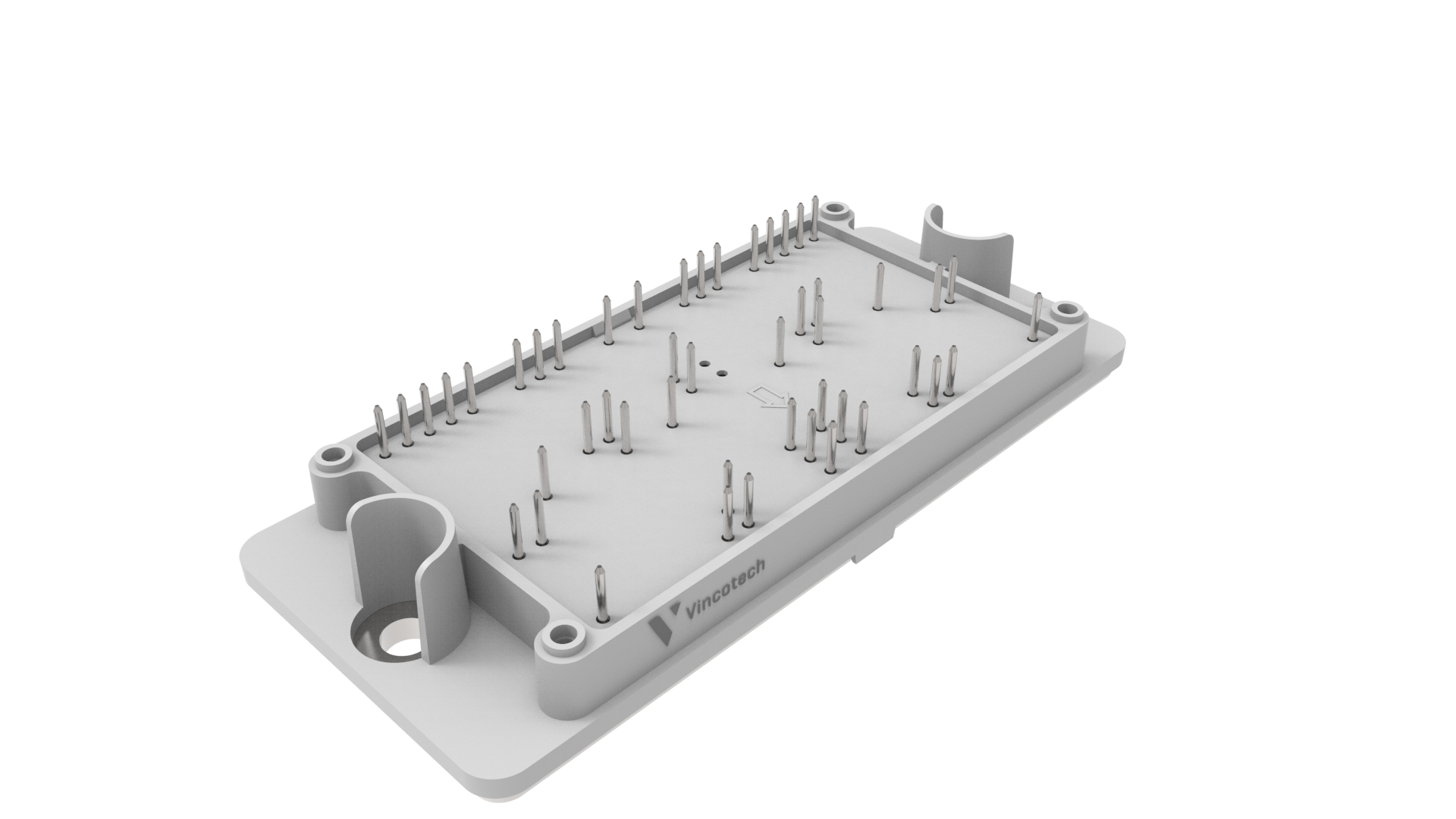

Mechanical & housing characteristics

flow 2

• Mechanical connection to PCB: 4 towers
• Footprint: 107.2 mm x 47 mm
• Height: 13 mm
• Pin type: Solder pin
