flowPIM E3

Basic information

• Product line: flowPIM E3
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 40

Electrical characteristics

• Voltage: 1200 V
• Current: 100 A

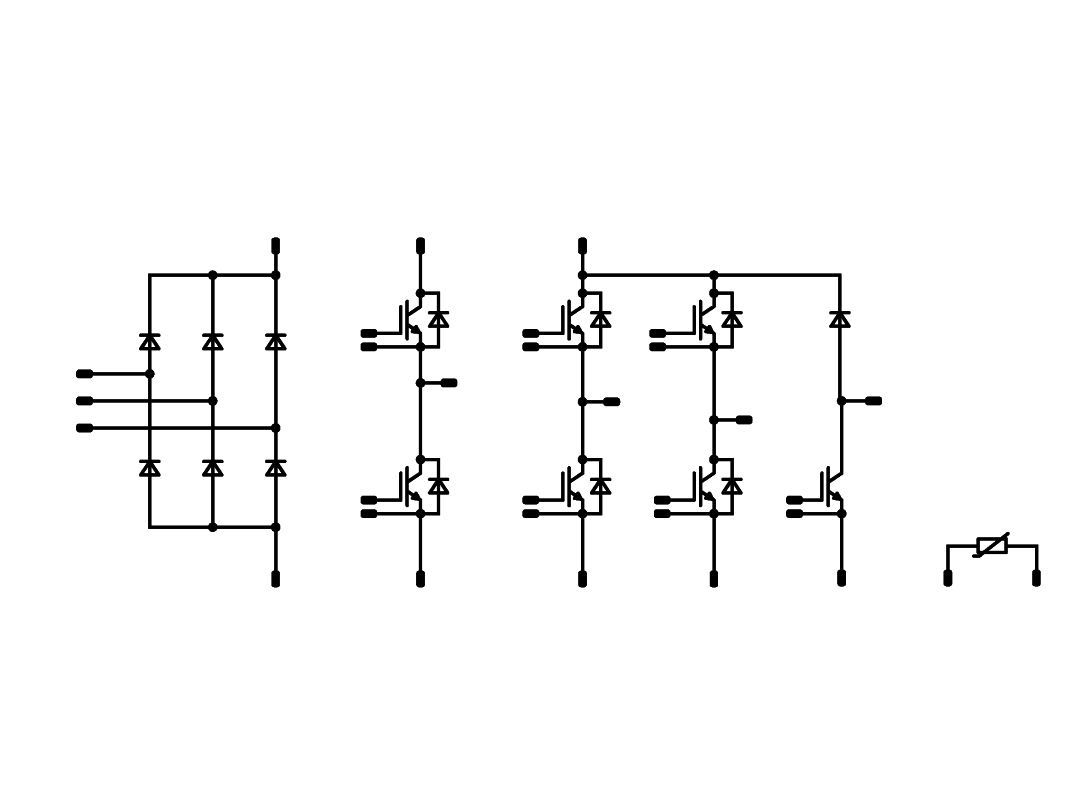

PIM (CIB)

• Converter+Brake+Inverter
• Kelvin Emitter for improved switching performance
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

IGBT M7

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current
• Switching optimized for EMC

Isolation

• Base isolation: Al₂O₃

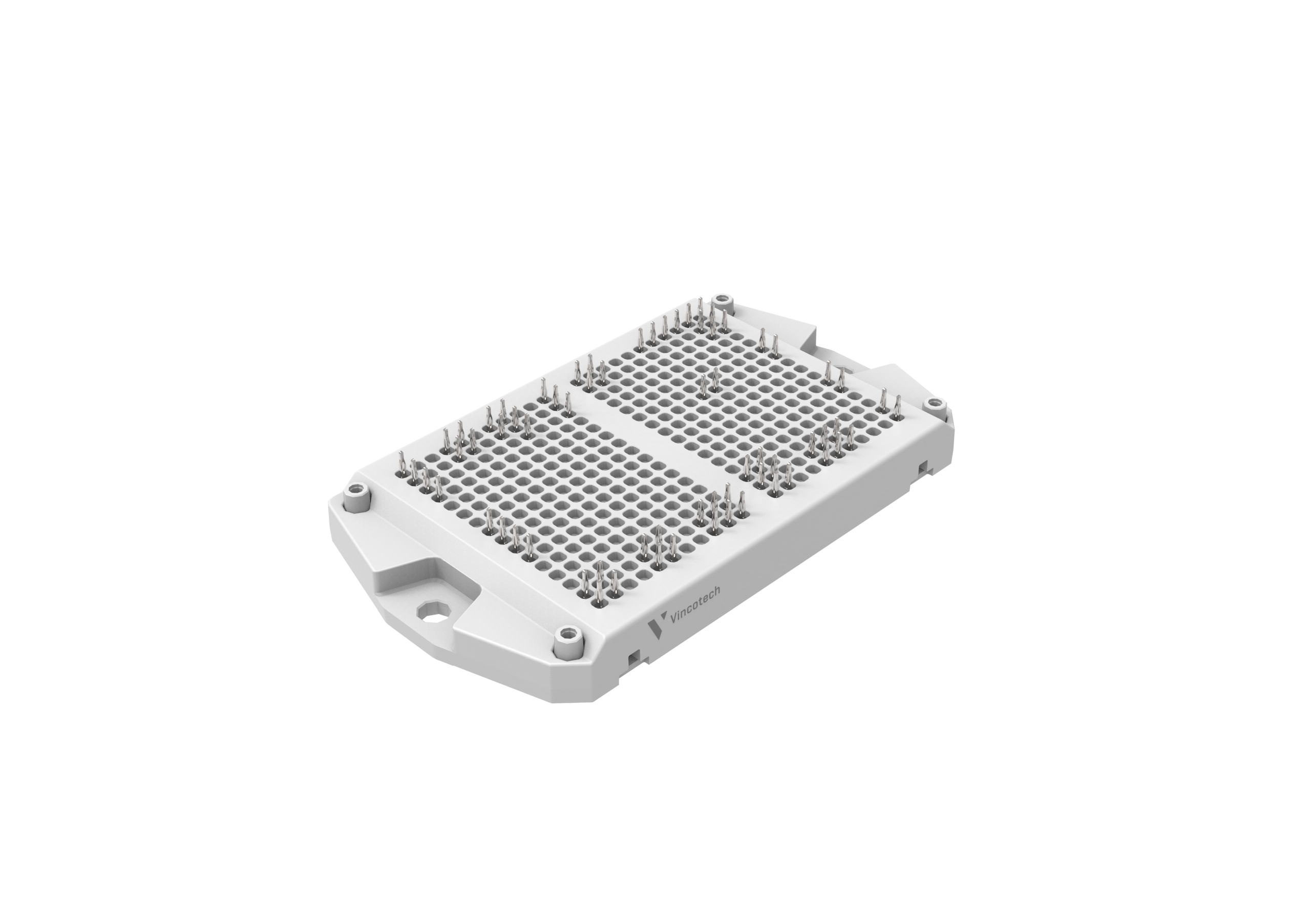

Mechanical & housing characteristics

flow E3

• Mechanical connection to PCB: 4 towers
• Footprint: 109.9 mm x 62 mm
• Height: 12 mm
• Pin type: Press-fit pin
