flowPIM E2

Basic information

• Product line: flowPIM E2
• Product status: Series
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 63 A
• R(DS)on: 32 mOhm

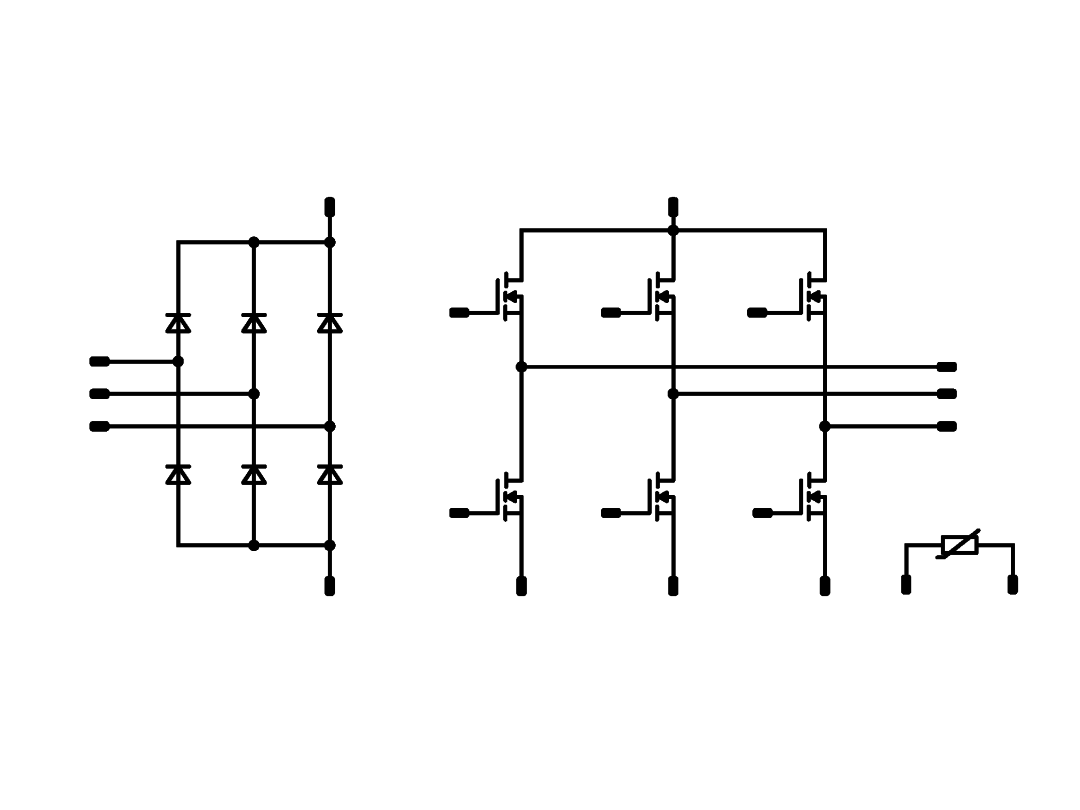

PIM (CIB)

• Converter+Inverter
• Open Emitter configuration
• SiC MOSFET
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• High Blocking Voltage with low drain source on state resistance
• High speed SiC-MOSFET technology
• Resistant to Latch-up

Isolation

• Base isolation: Al₂O₃

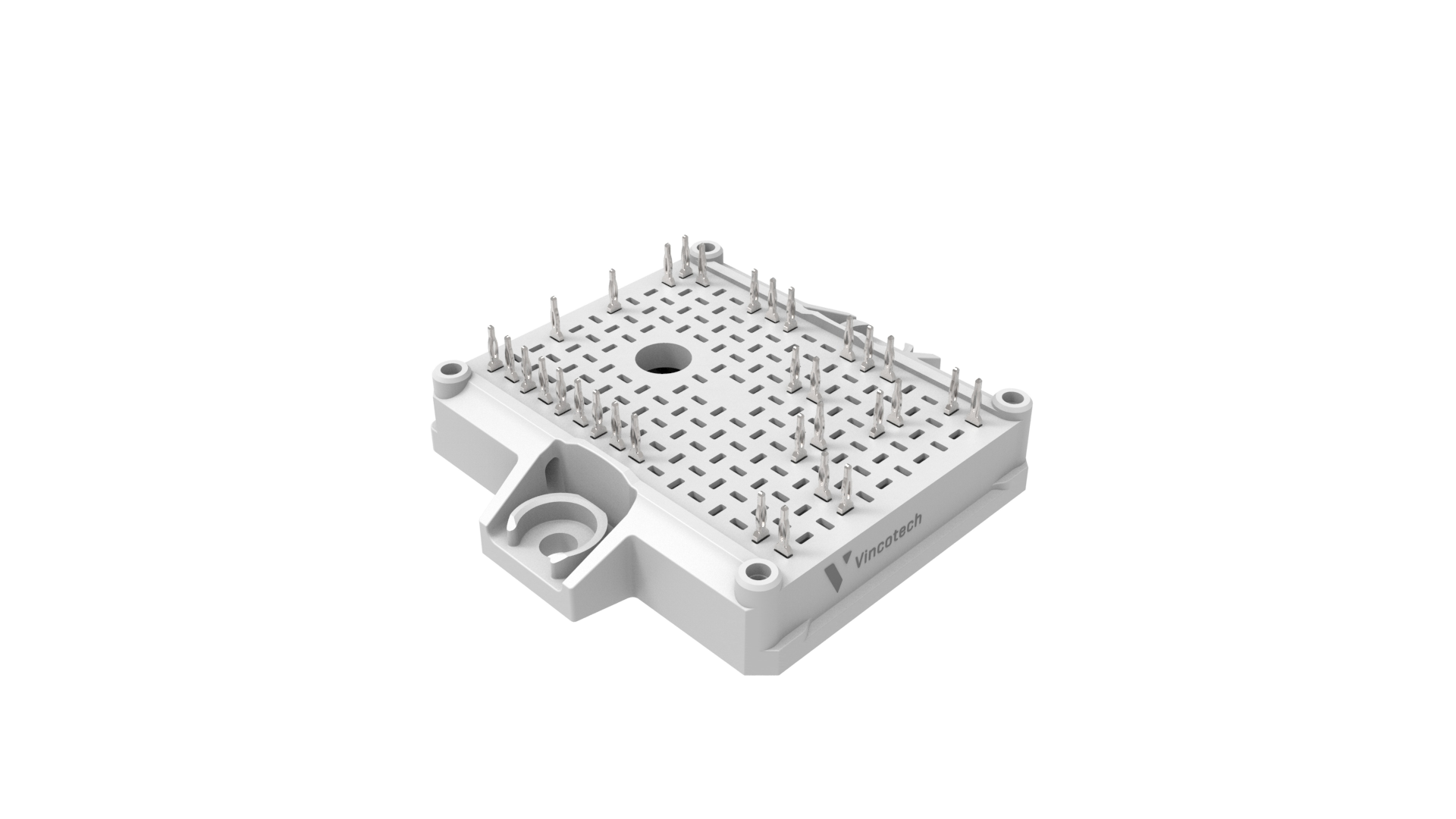

Mechanical & housing characteristics

flow E2

• Mechanical connection to PCB: 4 towers
• Footprint: 62.8 mm x 57.7 mm
• Height: 12 mm
• Pin type: Press-fit pin
