flowFC 1
10-FY07FCA200RG-LQ45L60
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowFC 1
- Product status: Series
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 1200 V
- Current: 200 A
- Integrated Capacitor
- Integrated NTC
- Three-level FlyingCap inverter
Three-level FC Inverter
Chip & isolation characteristics
- High efficiency in hard switching and resonant topologies
- High speed switching
- Low gate charge
IGBT fast
- Base isolation: Al2O3
Isolation

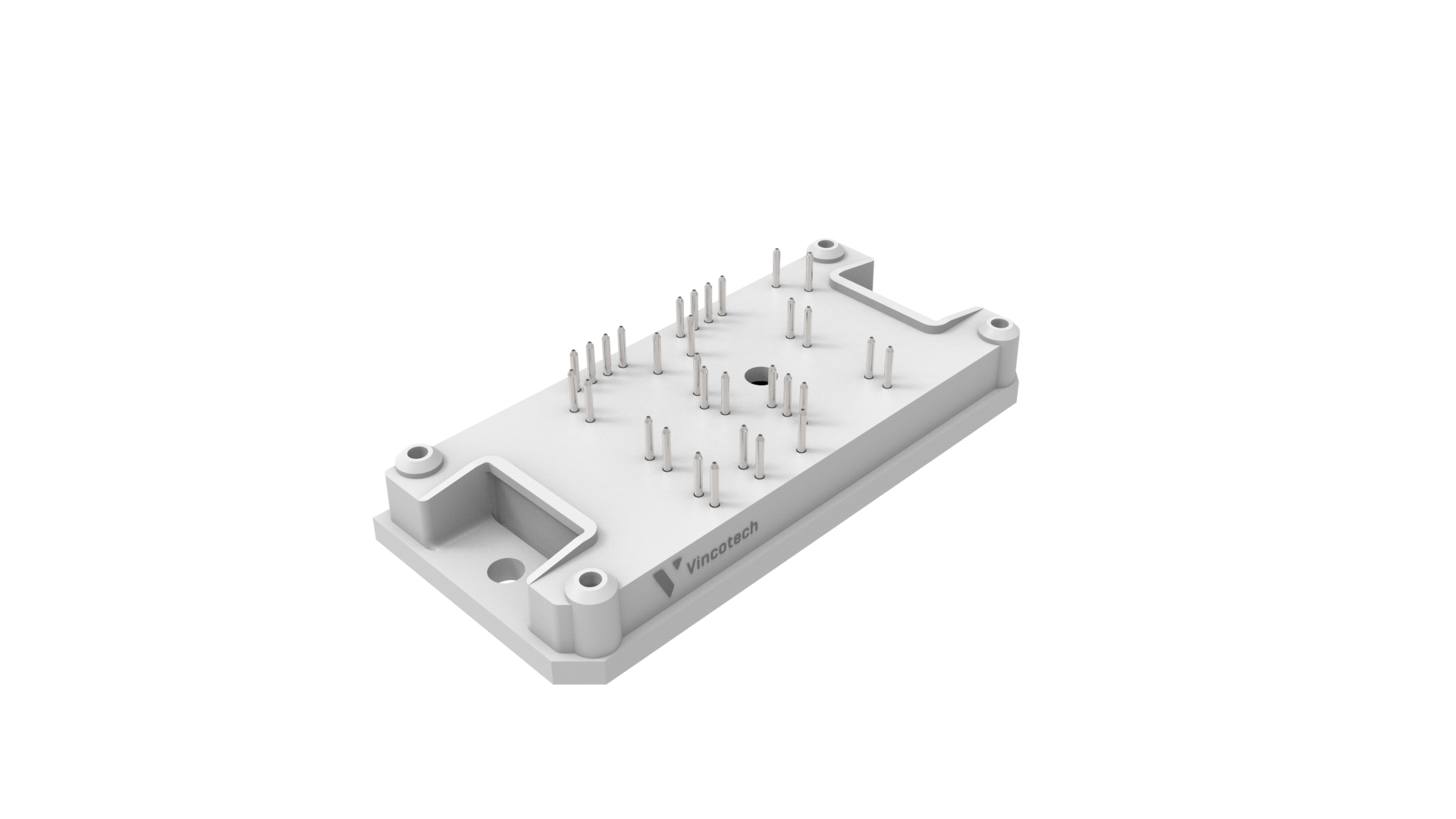

Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 82 mm x 37.4 mm
- Height: 12 mm
- Pin type: Solder pin
flow 1
