flowCSPFC S3 SiC

Basic information

• Product line: flowCSPFC S3 SiC
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 45

Electrical characteristics

• Voltage: 1200 V
• Current: 80 A
• R(DS)on: 16 mOhm

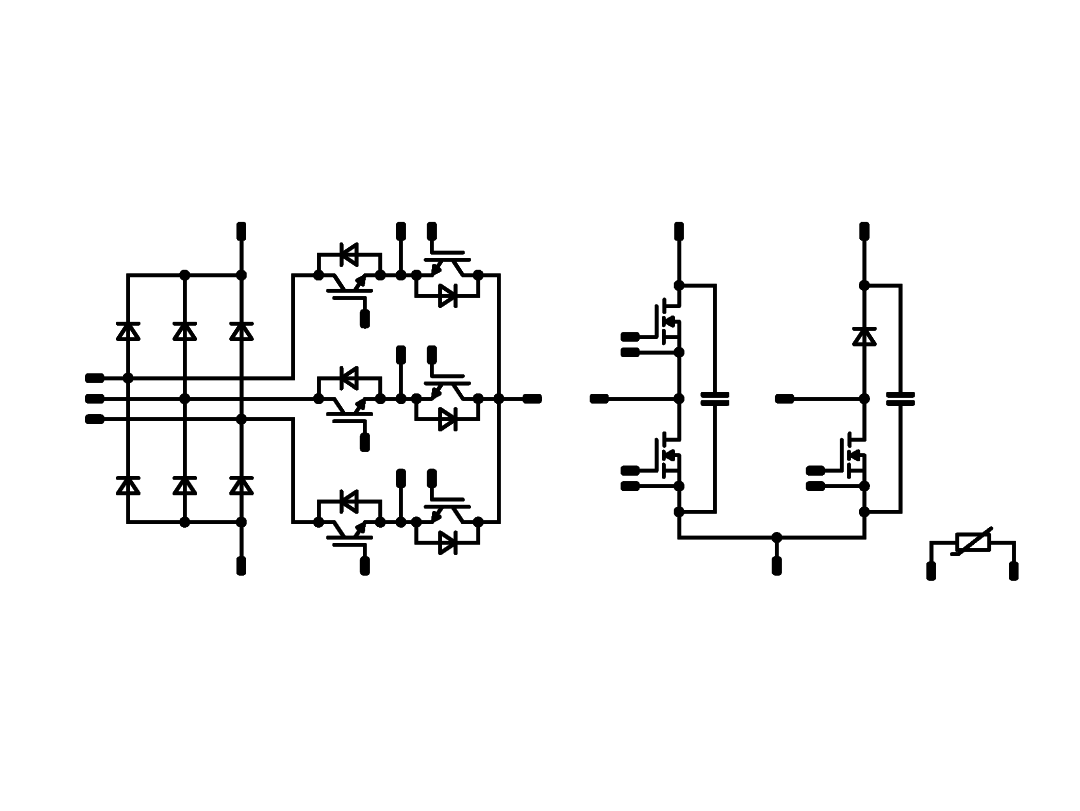

PFC (Three-phase applications)

• Current Synthesizing PFC + Booster
• Integrated DC Link capacitors
• Kelvin Emitter for improved switching performance
• Temperature sensor
• Thin Al2O3 for easy thermal design

Chip & isolation characteristics

SiC MOSFET

• High Blocking Voltage with low drain source on state resistance
• High speed SiC-MOSFET technology
• Resistant to Latch-up

Isolation

• Base isolation: Al₂O₃

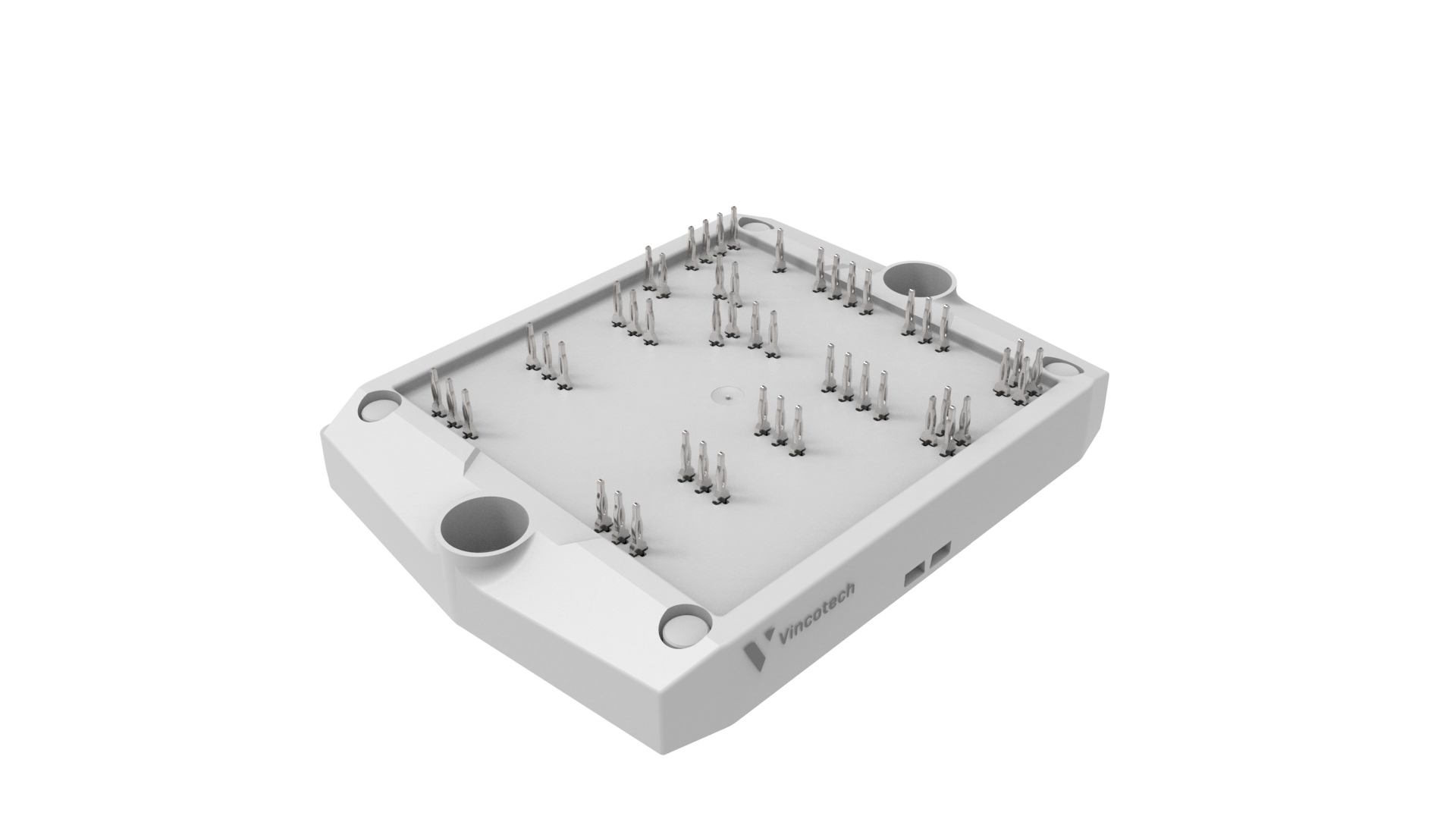

Mechanical & housing characteristics

flow S3

• Mechanical connection to PCB: no towers
• Footprint: 81.8 mm x 61.3 mm
• Height: 12 mm
• Pin type: Press-fit pin
