flowMNPC 1 SiC

Basic information

• Product line: flowMNPC 1 SiC
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 165 A
• R(DS)on: 8.67 mOhm

Three-level MNPC (T-Type)

• Integrated DC capacitor
• Kelvin Emitter for improved switching performance
• Low inductive commutation loop
• Mixed Voltage Neutral Point Clamped Topology (T-Type)
• SiC MOSFET
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• Fast intrinsic diode with low reverse recovery
• High blocking voltage with low on-resistance
• High speed switching with low capacitance

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

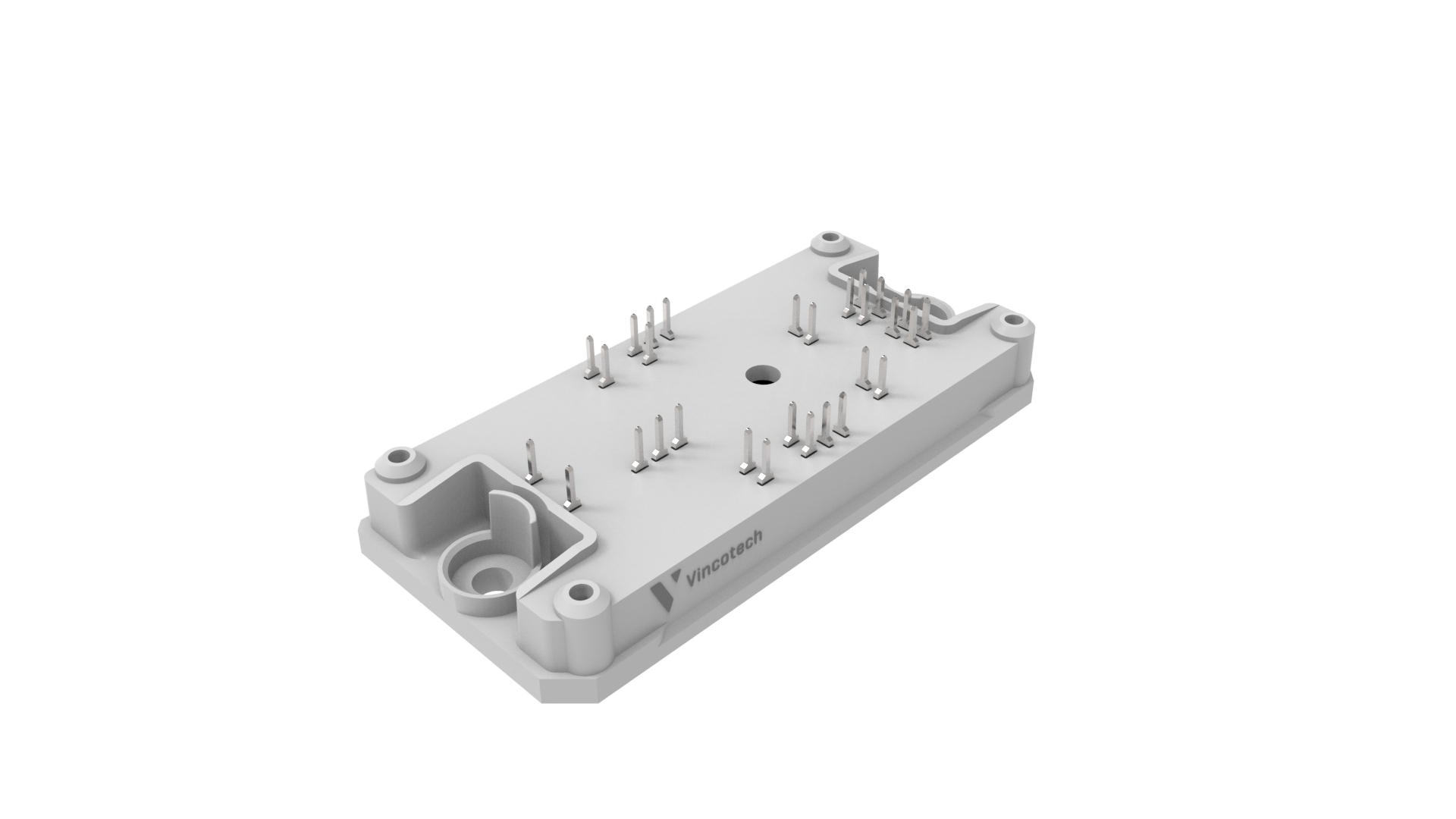

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 12 mm
• Pin type: Solder pin
