Power modules equipped with IGBTs or MOSFETs can generate significant losses. TIMs are less thermally conductive than the heatsink, DCB, and semiconductor so they have to be very thin to transfer heat efficiently.
Vincotech provides dxf drawings to customers who would rather apply their own TIM than buy power modules with pre-applied TIM.
Thermal management directly impacts a system’s performance and longevity. Pre-applied thermal paste and phase-change materials improve heat transfer and eliminate inconsistencies associated with manual application.
Pre-applied TIM reduces unit-to-unit variability, stabilizes production processes and delivers consistent thermal performance across the product’s lifecycle. This makes it a compelling solution for next-generation power modules for industrial and renewable energy systems.
TIM surfaces can smear, scratch or collect particles and dust during transport, handling, soldering and PCB assembly. Vincotech offers caps and foils to prevent contamination and damage.
)

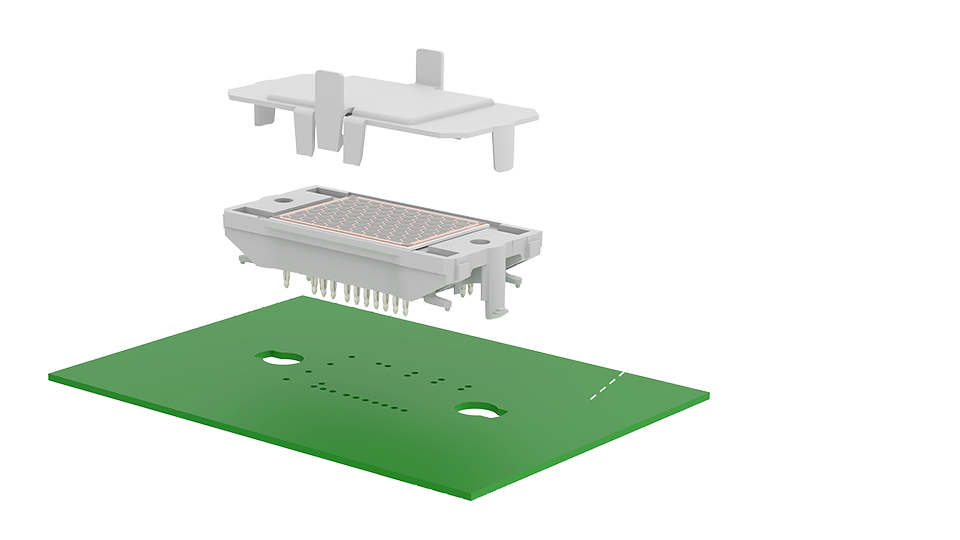

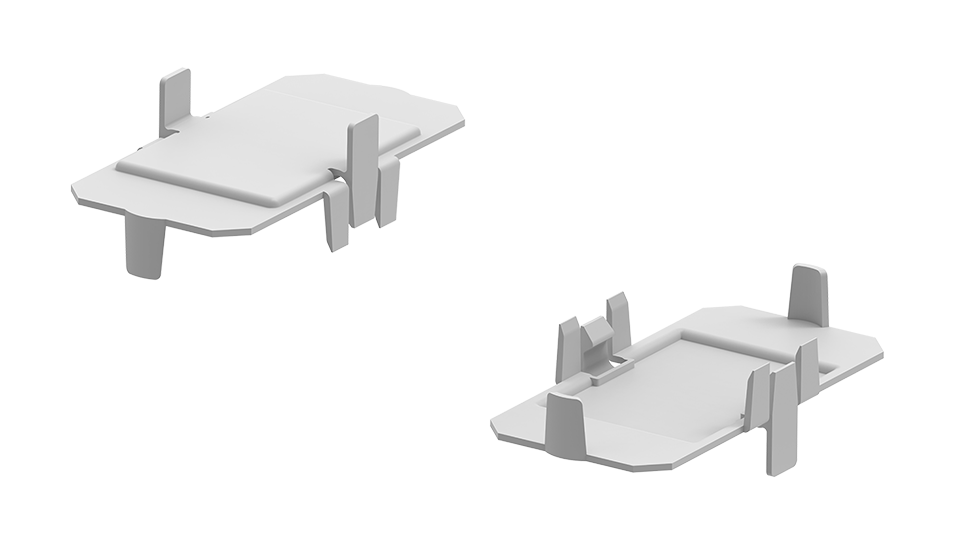

ProCaps protect thermal grease and phase-change material on flow 0 and flow 1 power modules, while a protective foil shields power modules with pre-applied phase change material.
)
)
)
)
)
)
