flowDUAL E2
10-EY122PA200M7-MA59F78T
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowDUAL E2
- Product status: Samples available
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 1200 V
- Current: 200 A
- Common emitter point Half Bridge
- Temperature sensor
Half-Bridge
Chip & isolation characteristics
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
- Switching optimized for EMC
IGBT M7
- Base isolation: Al2O3
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 62.8 mm x 57.7 mm
- Height: 12 mm
- Pin type: Press-fit pin

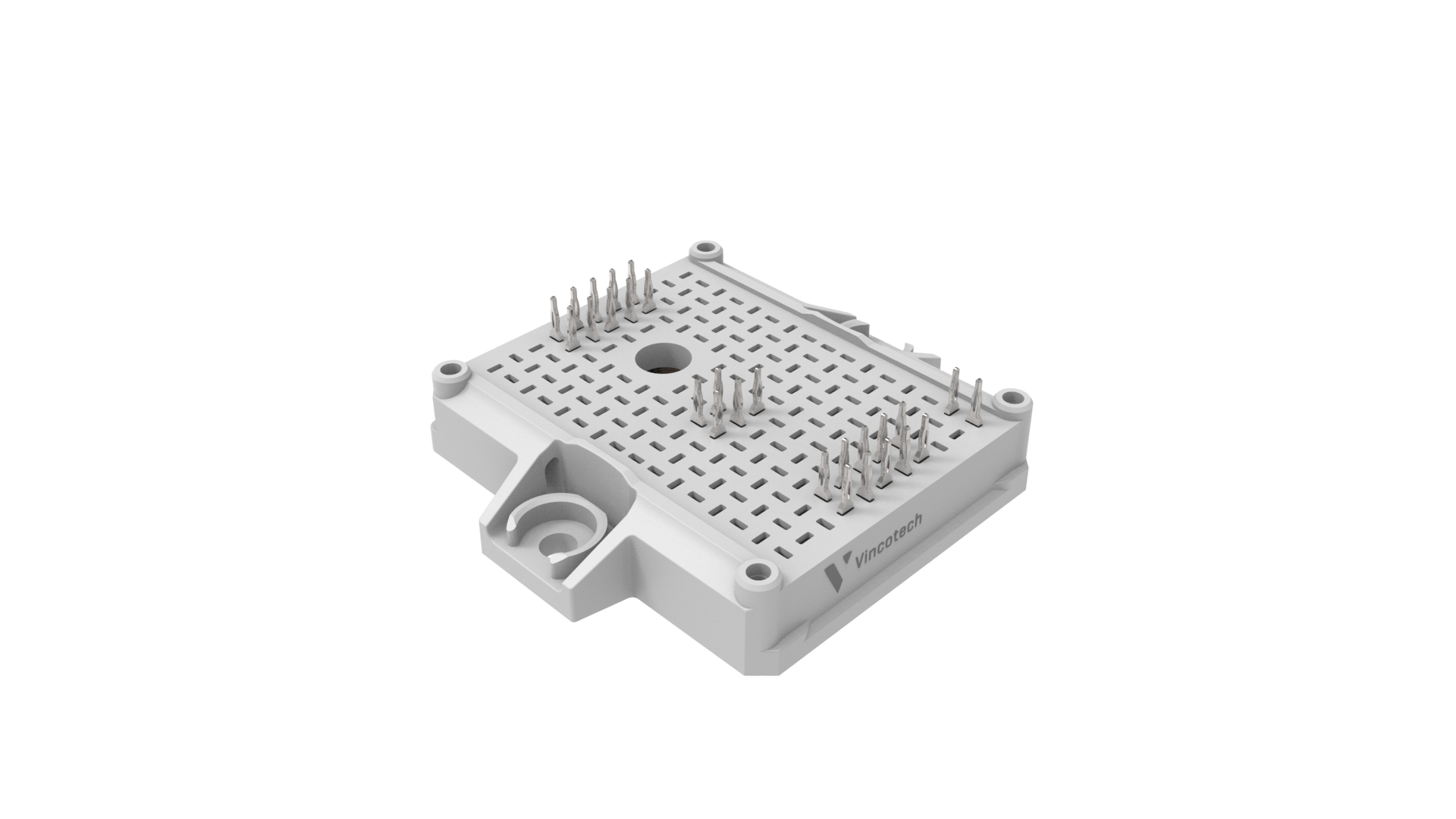

flow E2
Thermal documents
PSX-P7 TIM thickness
- Minimum: 45 um
- Maximum: 75 um
- Stencil thickness: 70 um
PTM6000HV TIM thickness
- Minimum: 45 um
- Maximum: 75 um
- Stencil thickness: 70 um
