flowBOOST 2 symmetric

Basic information

• Product line: flowBOOST 2 symmetric
• Product status: Series
• Standard packaging quantity (pieces): 36

Electrical characteristics

• Voltage: 600 V
• Current: 200 A

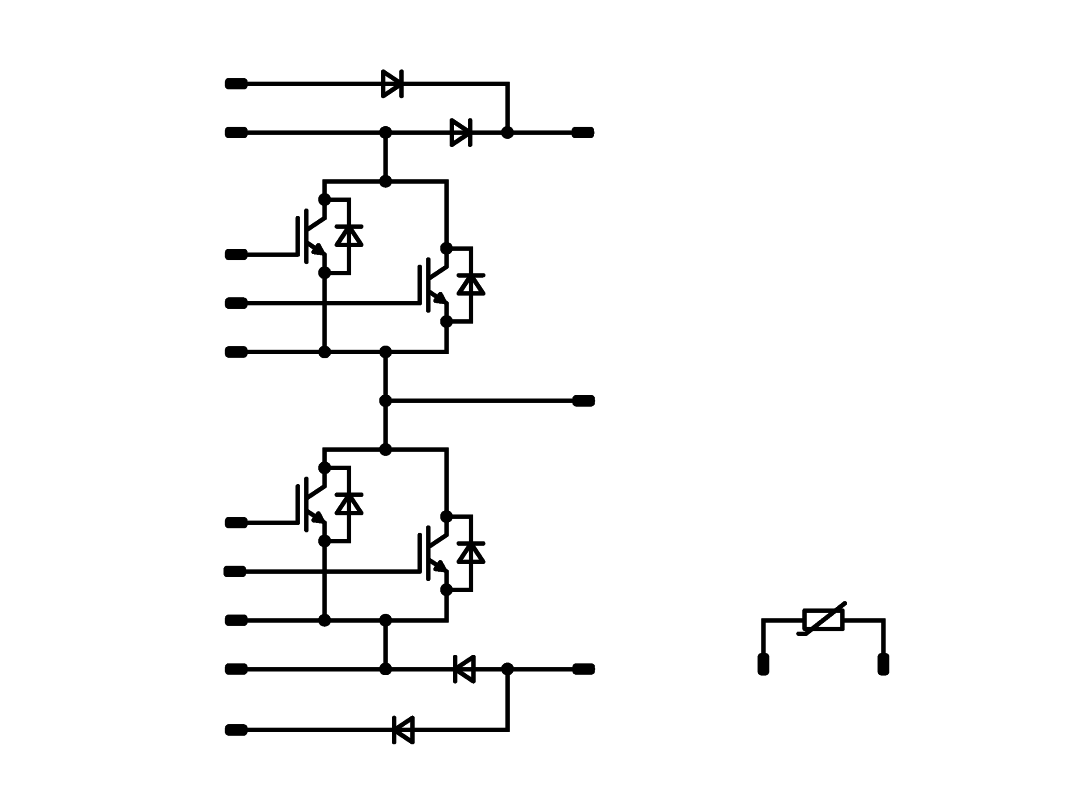

Booster Symmetric

• Kelvin Emitter for improved switching performance
• Temperature sensor
• Symmetrical Booster
• Bypass Diode

Chip & isolation characteristics

IGBT3 HS

• High speed switching
• Low EMI
• Low turn-off losses
• Low collector emitter saturation voltage

Isolation

• Base isolation: Al₂O₃

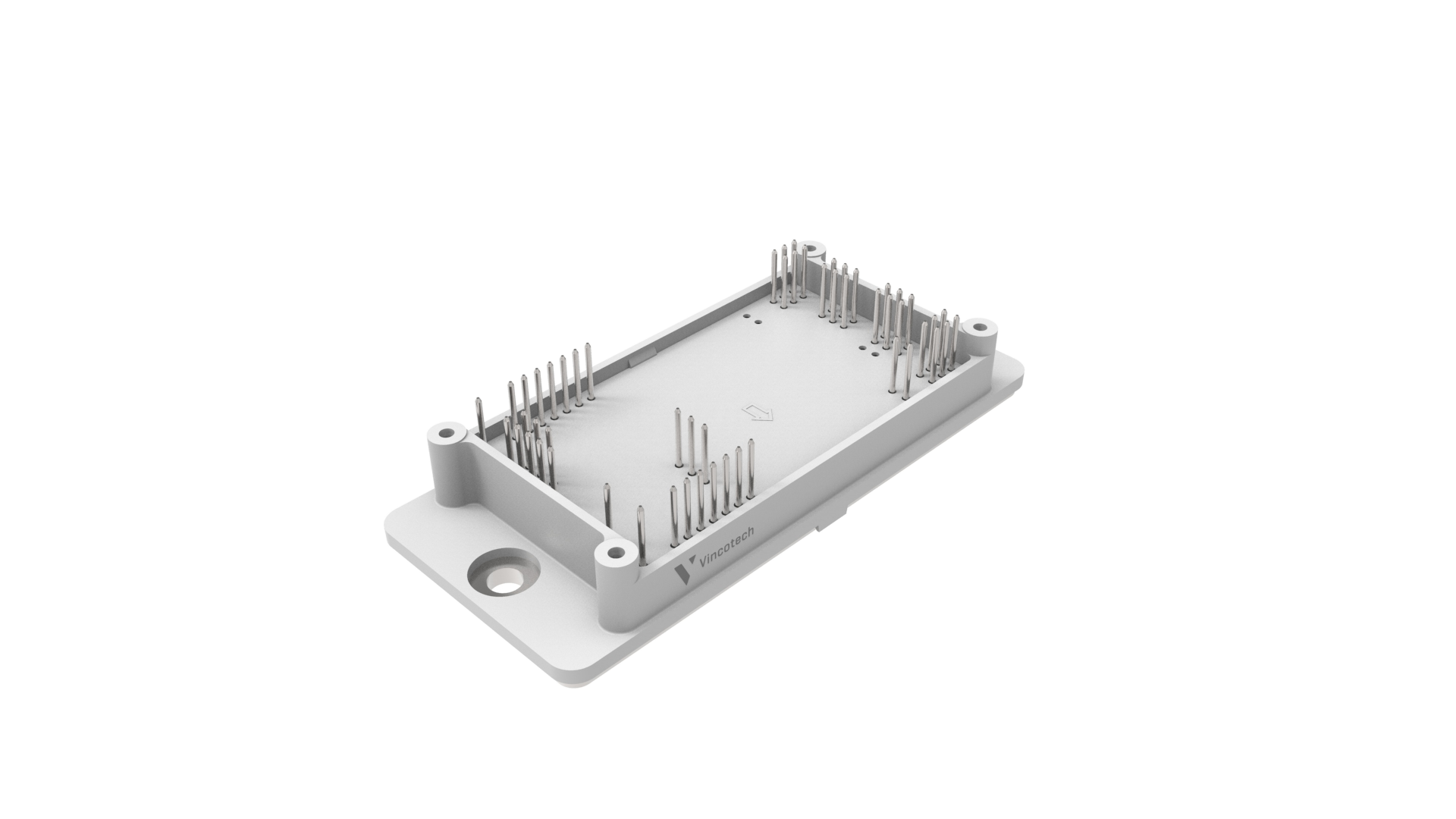

Mechanical & housing characteristics

flow 2

• Mechanical connection to PCB: 4 towers
• Footprint: 107.2 mm x 47 mm
• Height: 17 mm
• Pin type: Solder pin
