flowPIM 1 + 3xPFC

Basic information

• Product line: flowPIM 1 + 3xPFC
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 25 A
• R(DS)on: 80 mOhm

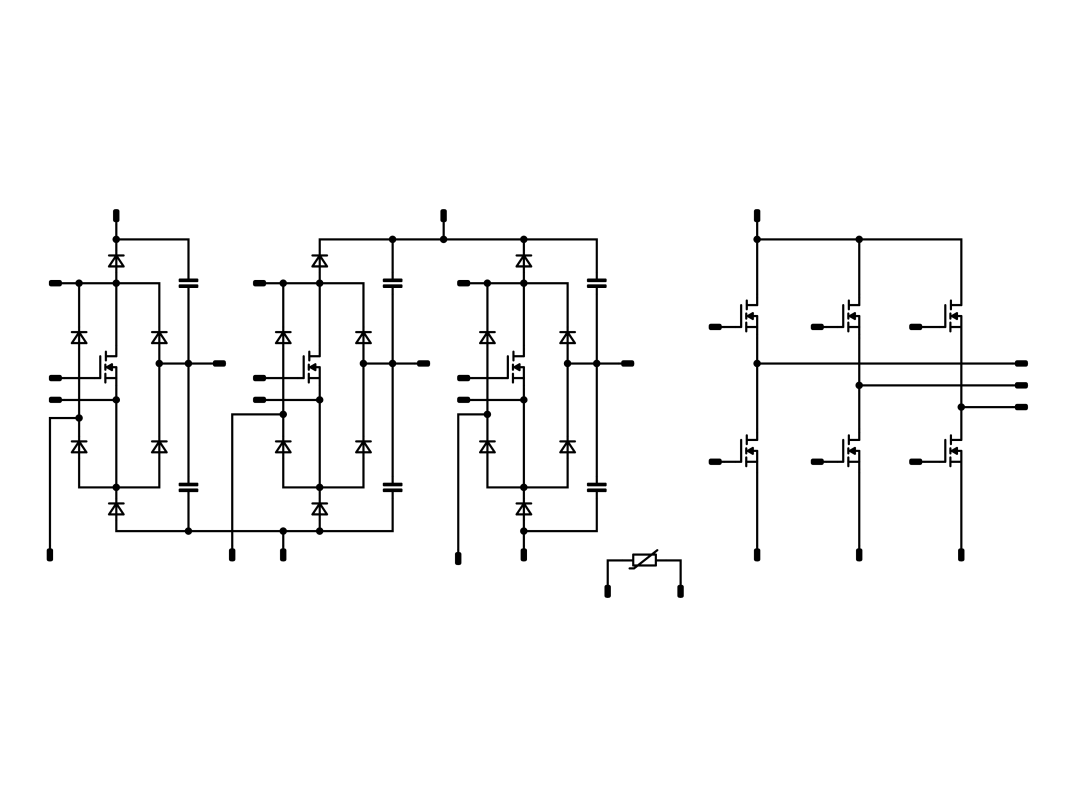

PIM+3xPFC (CIP)

• 3ph Vienna rectifier
• Inverter
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• High Blocking Voltage with low drain source on state resistance
• High speed SiC-MOSFET technology
• Resistant to Latch-up

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

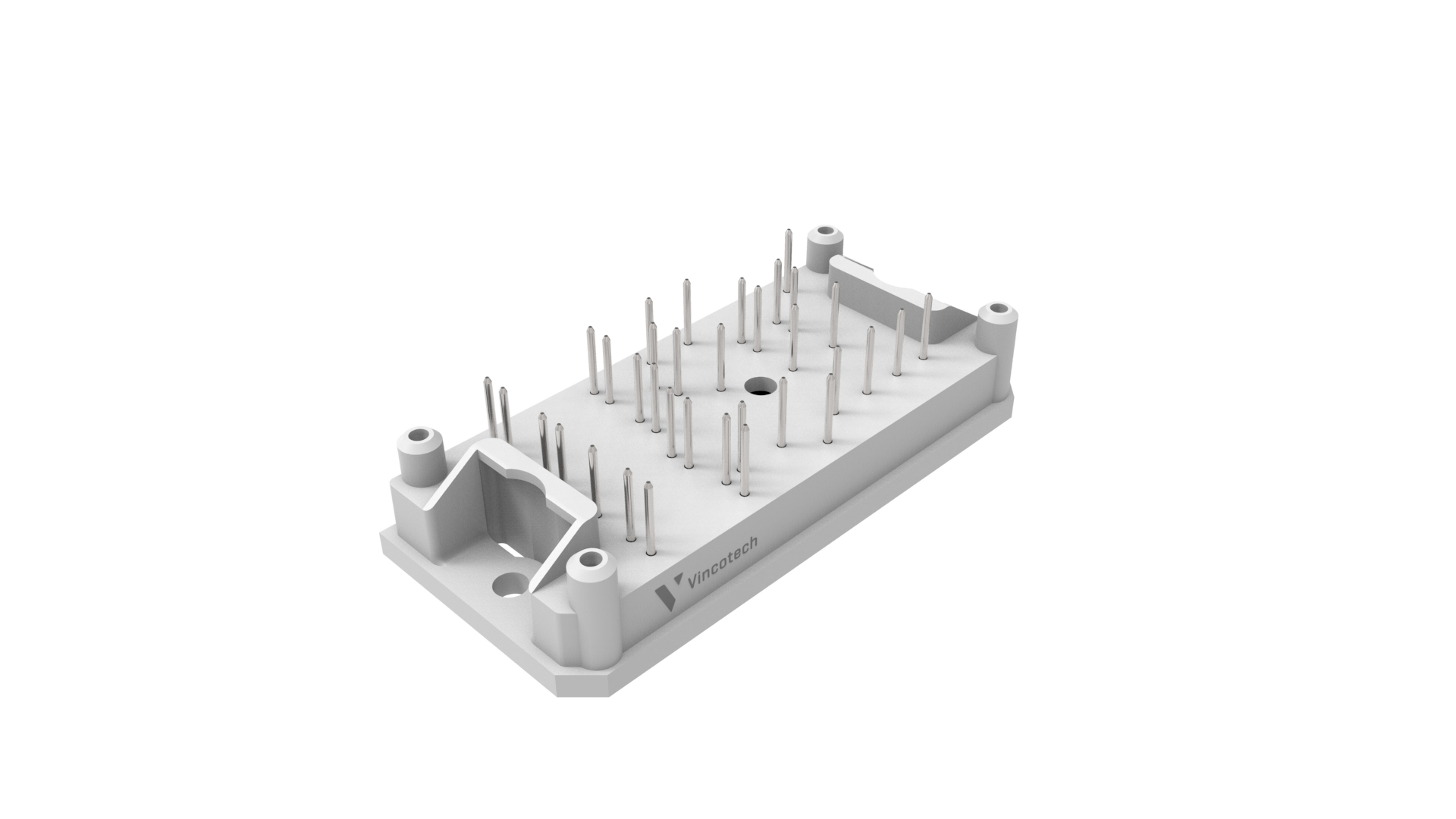

flow 1

• Mechanical connection to PCB: 4 towers
• Footprint: 82 mm x 37.4 mm
• Height: 17 mm
• Pin type: Solder pin
