flowNPC 2

Basic information

• Product line: flowNPC 2
• Product status: Series-Ops
• Standard packaging quantity (pieces): 36

Electrical characteristics

• Voltage: 650 V
• Current: 200 A

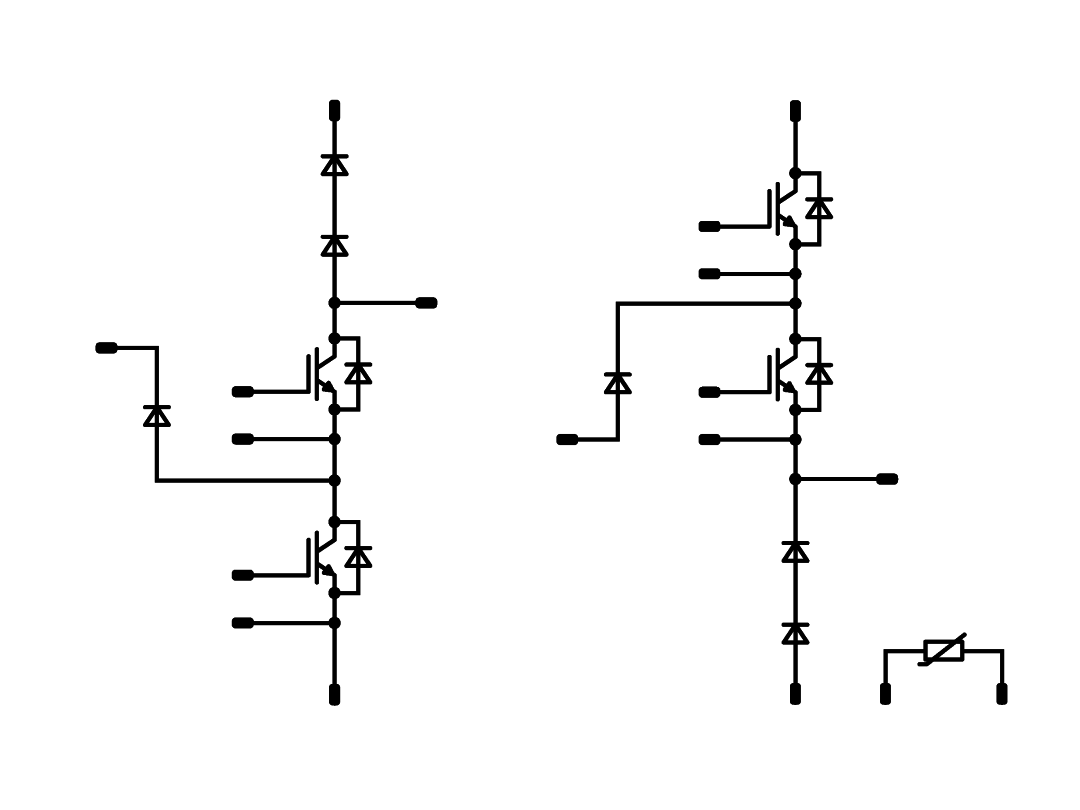

Three-level NPC (I-Type)

• Kelvin Emitter for improved switching performance
• Temperature sensor
• Neutral Point Clamped Topology (I-Type)

Chip & isolation characteristics

IGBT S5

• High speed and smooth switching
• Low gate charge
• Very low collector emitter saturation voltage

Isolation

• Base isolation: Al₂O₃

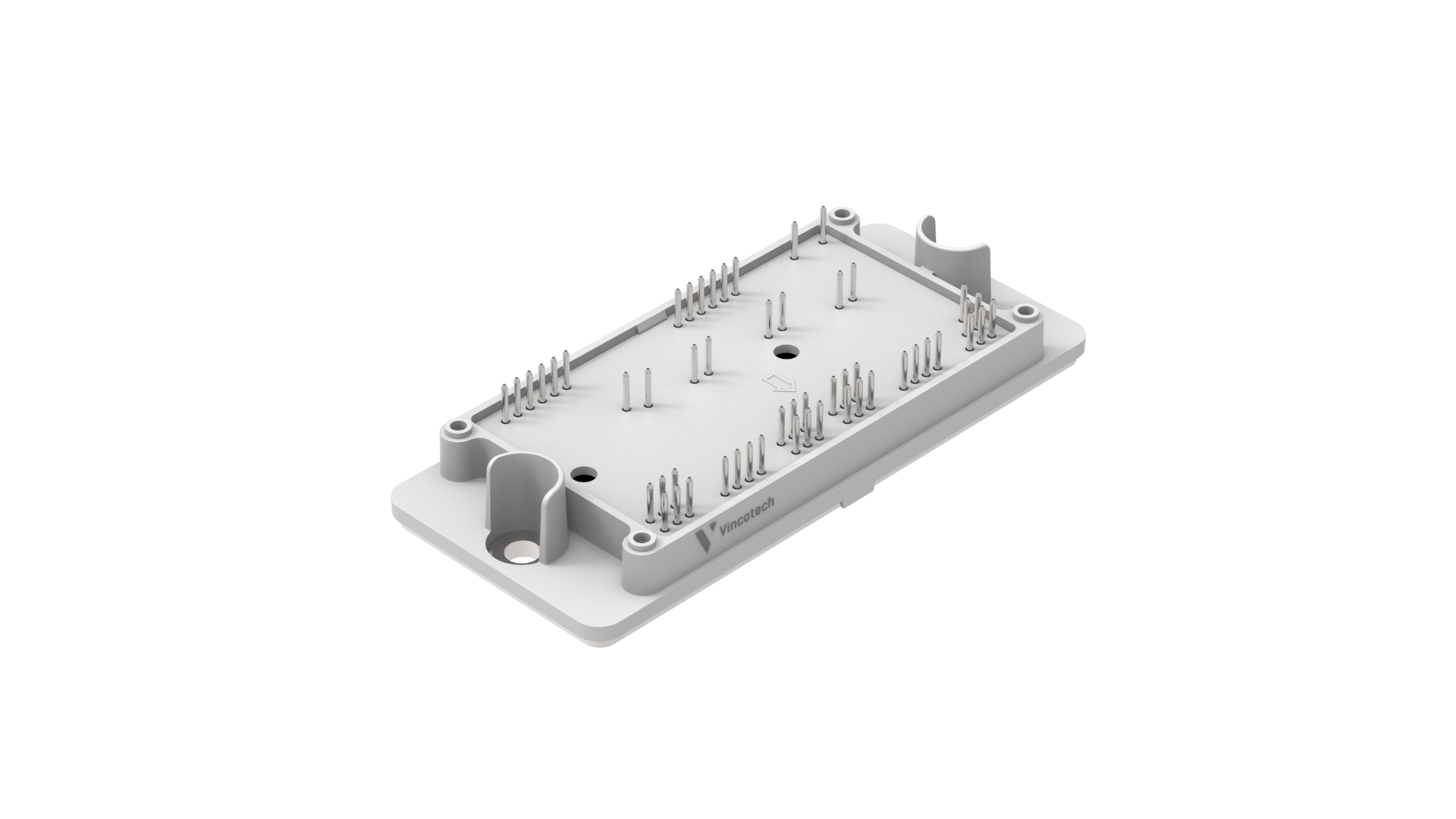

Mechanical & housing characteristics

flow 2

• Mechanical connection to PCB: 4 towers
• Footprint: 107.2 mm x 47 mm
• Height: 13 mm
• Pin type: Solder pin
