flowDUAL E2 SiC
10-EY232PB006ME01-PN98F08T
Topology Housing Voltage R(DS)on Main chip technology Product status
Product description
Basic information
- Product line: flowDUAL E2 SiC
- Product status: Samples available
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 2300 V
- Current: 250 A
- R(DS)on: 6 mOhm
- Temperature sensor
- Half Bridge
Half-Bridge
Chip & isolation characteristics
- Fast intrinsic diode with low reverse recovery
- High blocking voltage with low on-resistance
- High speed switching with low capacitance
SiC MOSFET
- Base isolation: AlN
Isolation
Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 62.8 mm x 57.7 mm
- Height: 12 mm
- Pin type: Press-fit pin

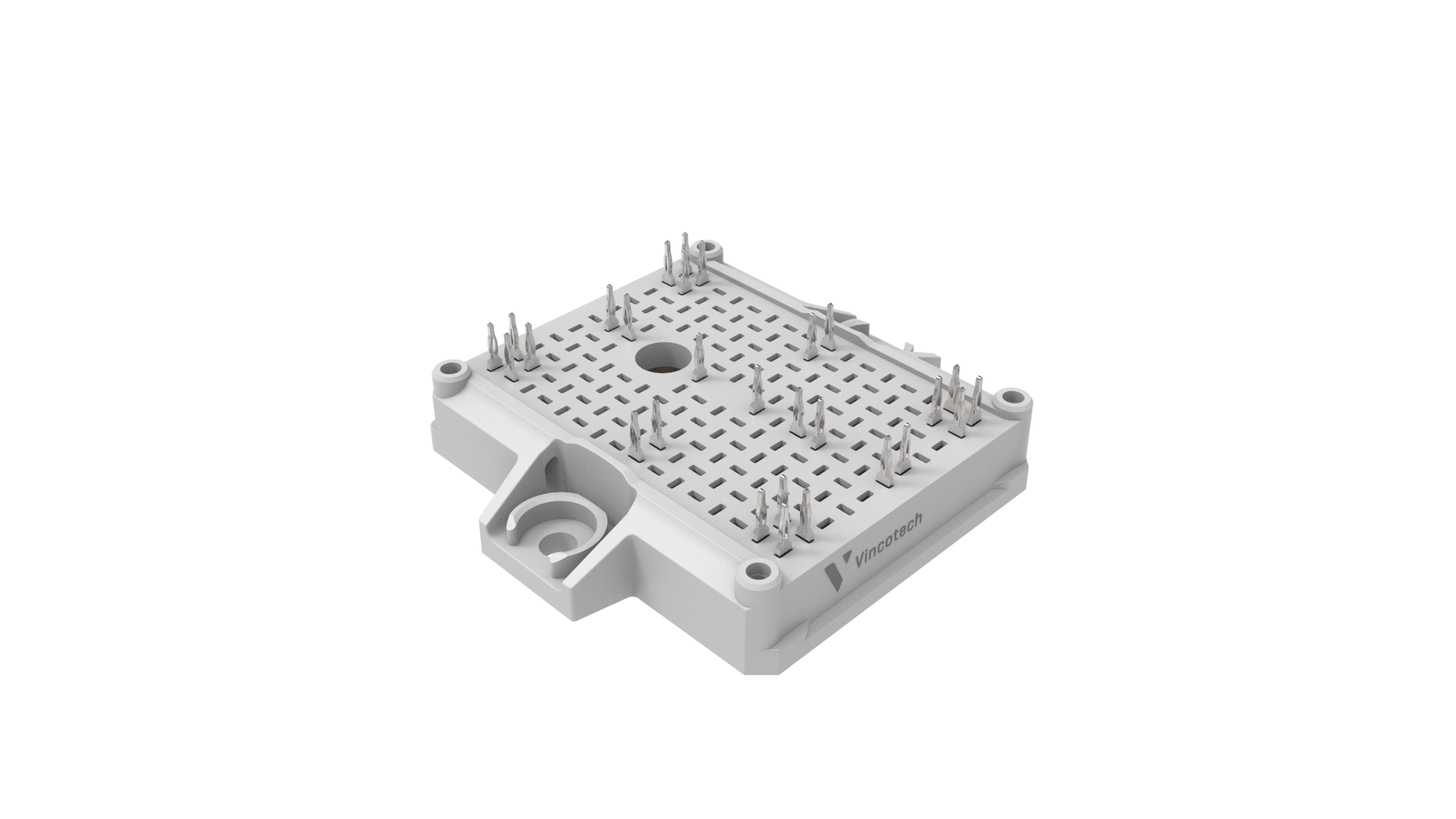

flow E2
