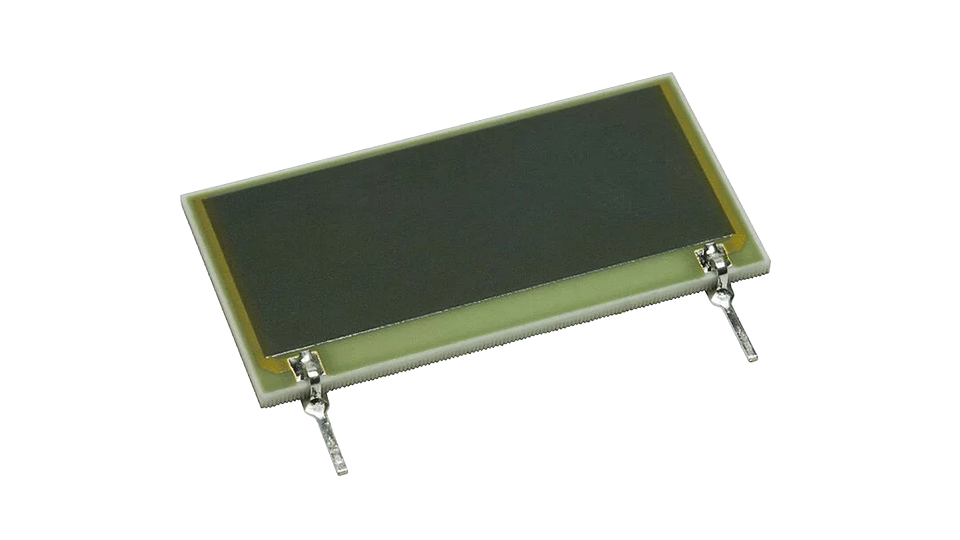

Inrush resistor S30814-Q791-A
)
The inrush resistor based on thick-film technology serves as a robust inrush current limiter. It is optimized for charging a 235 µF capacitor bank (configured as 2 × 470 µF in series) at voltages up to 750 V, as typically found in 400 V AC, three‑phase rectifier systems. Its design makes it well suited for demanding applications such as motor drives, switch‑mode power supplies (SMPS), and welding equipment.
Product details
R = 100 Ω E(pulse) = 66 J
Pcont = 4 W
SIL / THT
Thick-film technology
Pb-free
Enhancing reliability with Vincotech’s thick-film technology
Individual resistor values with accurate laser trimming
Relative trimming and functional trimming
Low inductive resistors
High-voltage, companion dissipation and pulse companion capabilities
Ultra-low temperature coefficient
High-density multi-layer available
Best reliability
