Embedded drives, HVAC systems, and heat pumps push for compact, high-efficiency power modules. With the growing use of WBG technology and smarter integration, Vincotech adds deep expertise in complex PCB designs that make systems smaller and more efficient.
Advanced industrial systems combine motors, drives, and control circuits in highly integrated embedded architectures. These sophisticated designs demand efficient power conversion, compact form factors, and reliable thermal management.
As a chip-independent provider, Vincotech offers advanced power module topologies for sophisticated drive systems. These modules help simplify electrical and thermal design, enable greater energy efficiency and higher power density, and accelerate time to market for motion control units, heat pumps, and HVAC systems.

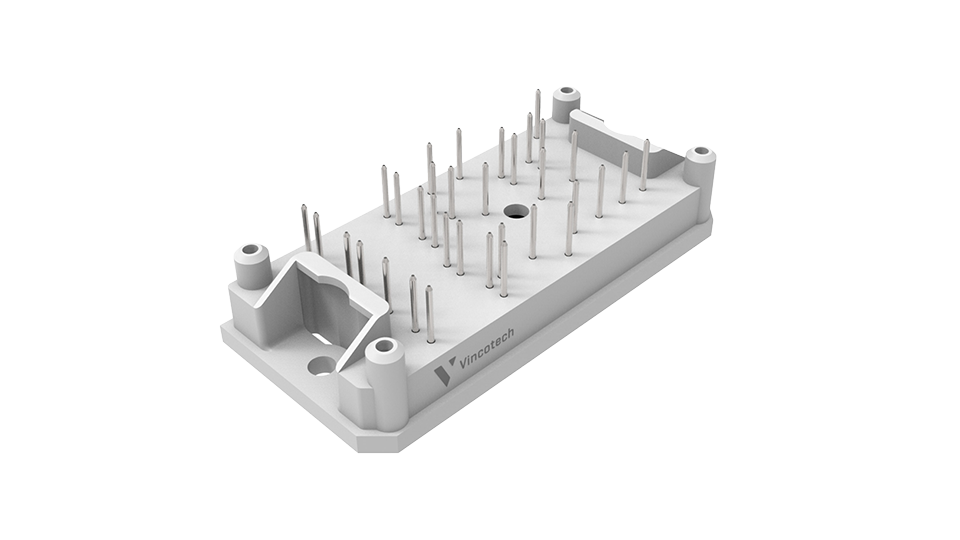

The Vincotech 1200 V PIM+PFC combines a Vienna rectifier with a SiC based inverter stage to deliver high efficiency, balanced cost performance, and increased power density. Its integrated architecture streamlines design, reduces space and helps speed up time to market.
All-in-one solution
SiC MOSFET for maximized efficiency and improved comfort
)
The 1200 V flowPIM S3 + 3xPFC tackles challenges of next-gen systems. Featuring current-synthesizing PFC (CS-PFC), this module helps strike the best balance between performance and system costs.
25% lower module costs with current-synthesizing PFC
Reduced system costs
No large electrolytic DC-link capacitors
Thin Al2O3 substrates
)
This highly integrated, full-SiC power module combines three-phase active neutral-point power factor correction (AN-PFC) with an inverter in a single housing to enable efficient power conversion for next-generation HVAC systems.
High efficiency
Compact integration
Superior thermal management
Quiet operation with high-frequency switching
)
Featuring interleaved power factor correction, PIM+PFC family delivers higher performance and deeper integration while improving efficiency and slashing system costs.
Latest generation 600 V IGBT
High-speed 650 V chips in the PFC for high switching frequencies
On-board capacitors and shunts
Various configurations for many system architectures
)
