flowPHASE 0 + NTC
10-F0122PB100SC02-M819F09
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowPHASE 0 + NTC
- Product status: Series
- Standard packaging quantity (pieces): 135
Electrical characteristics
- Voltage: 1200 V
- Current: 100 A
- Half Bridge
- Temperature sensor
Half-Bridge
Chip & isolation characteristics
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
IGBT4
- Base isolation: Al2O3
Isolation

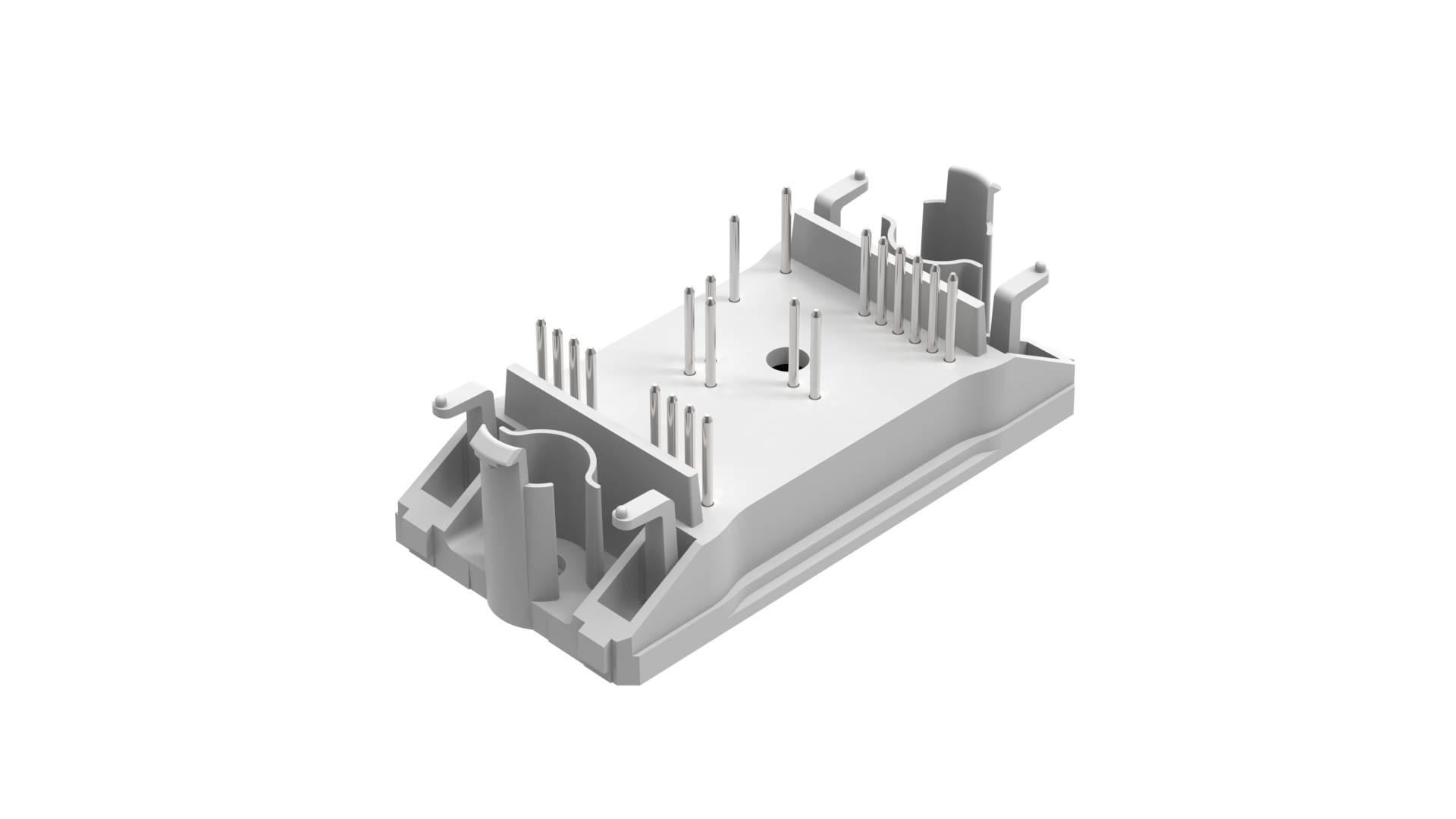

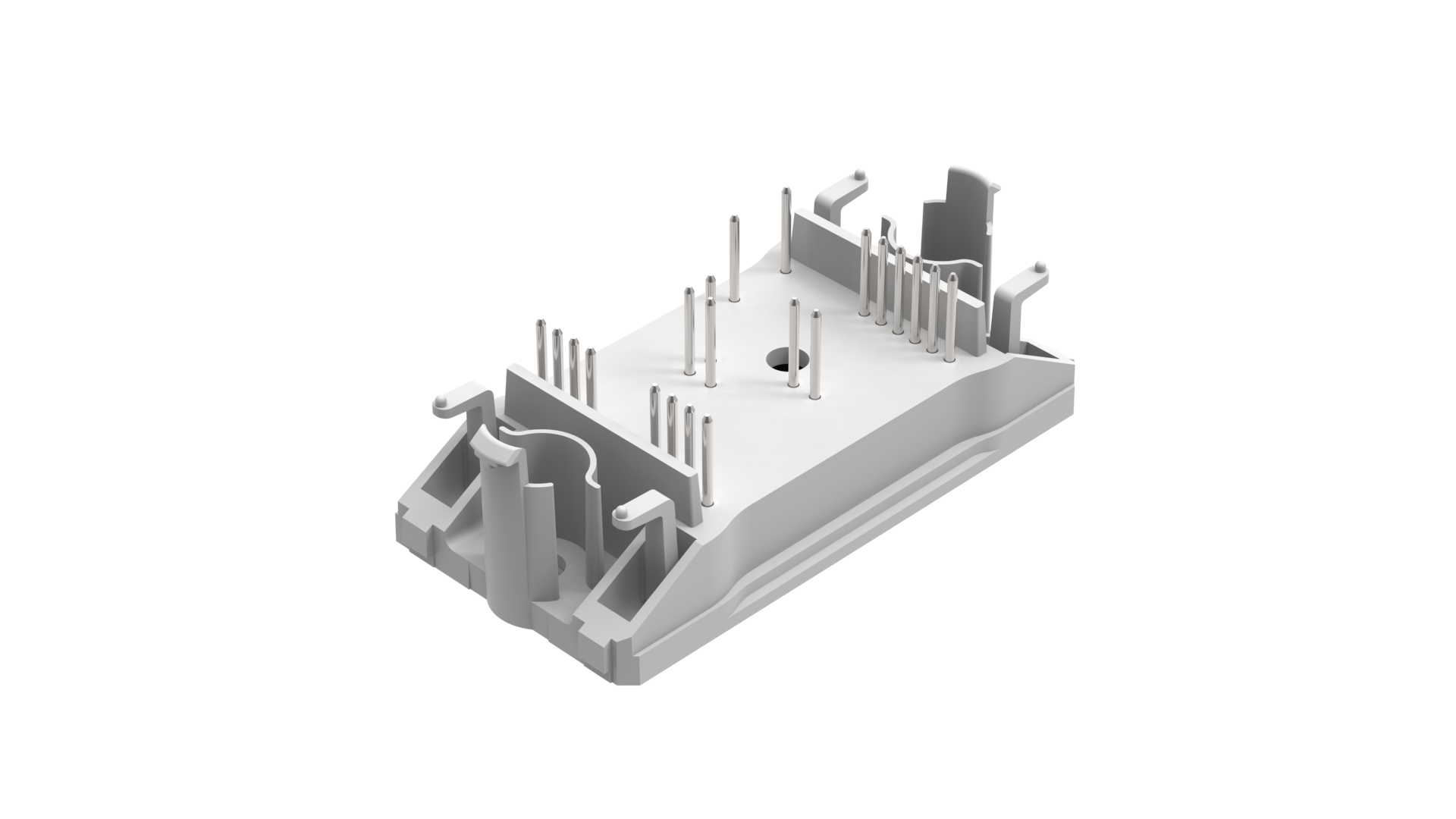

Mechanical & housing characteristics
- Mechanical connection to PCB: 2 clips
- Footprint: 68.4 mm x 32.5 mm
- Height: 17 mm
- Pin type: Solder pin
flow 0
