flowDUAL E3BP SiC

Basic information

• Product line: flowDUAL E3BP SiC
• Product status: Engineering Sample
• Standard packaging quantity (pieces): 24

Electrical characteristics

• Voltage: 2300 V
• Current: 400 A
• R(DS)on: 3.8 mOhm

Half-Bridge

• Temperature sensor
• Half Bridge

Chip & isolation characteristics

SiC MOSFET

• Fast intrinsic diode with low reverse recovery
• High blocking voltage with low on-resistance
• High speed switching with low capacitance

Isolation

• Base isolation: Al₂O₃

Mechanical & housing characteristics

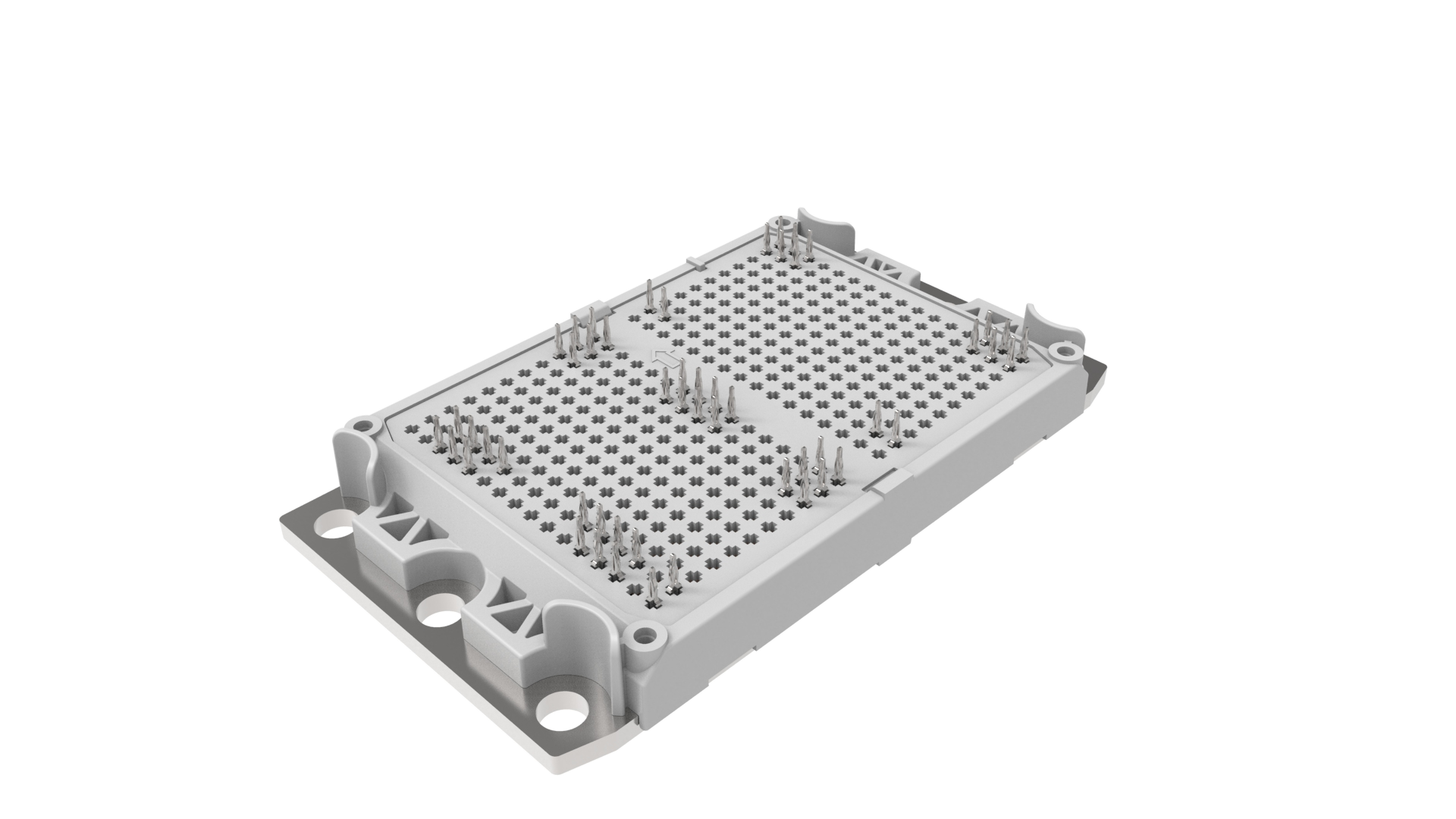

flow E3BP

• Mechanical connection to PCB: 4 towers
• Footprint: 109.6 mm x 59.7 mm
• Height: 12 mm
• Pin type: Press-fit pin
