flowFC S3 split
Basic module information
Part number: | B0-SP10FSA600S7-LM69F98T |
---|---|
Product line: | flowFC S3 split |
Product status: | Samples available |
Break down voltage: | 950 V |
Nominal chip current rating: | 600 A |
Standard Packing Quantity: | 45 |
Module datasheet: | PDF, 6 MB |
Product details

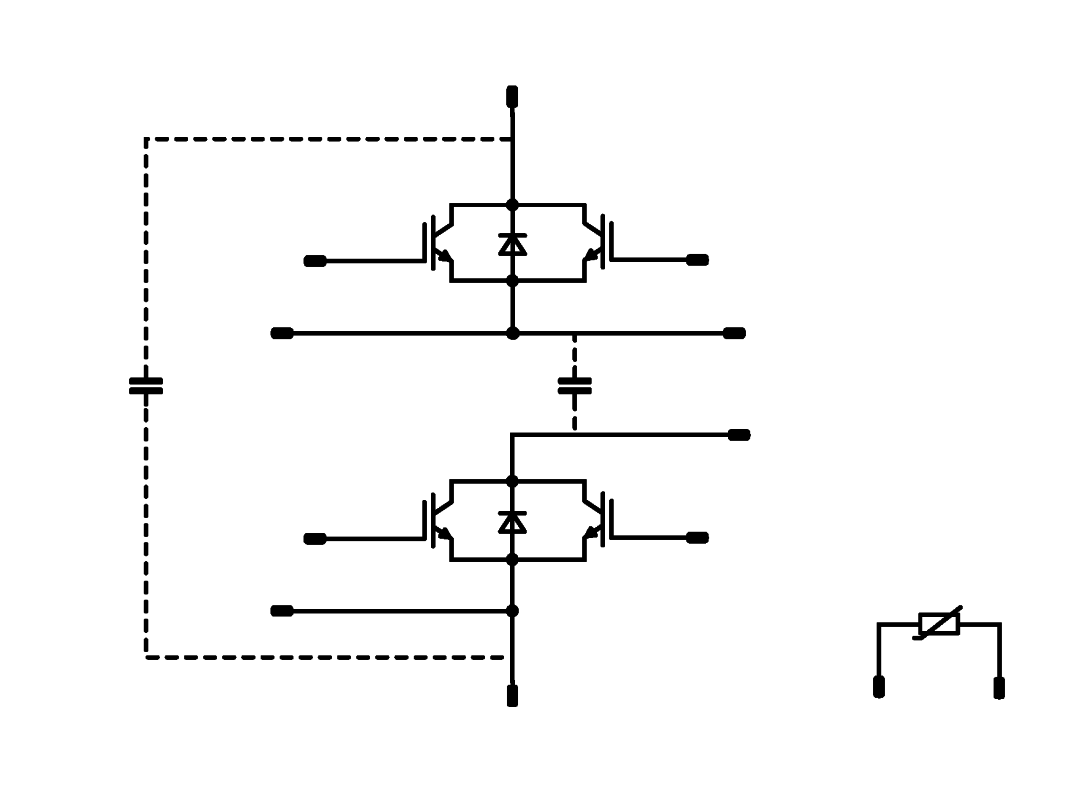

Topology: | Three-level FC Inverter |
---|
- Integrated Capacitor
- Three-level FlyingCap inverter
- Split topology
- Integrated NTC
- Outer module
Chip technology (main switch): | IGBT S7 |
---|
- Low collector emitter saturation voltage
- High speed and smooth switching
Base isolation (e.g. ceramic): | Al2O3 |
---|---|
Electrical interconnection: | Press-fit pin |
Load this product to the simulation environment to get an overview of its performance.
Simulate this moduleHousing related details

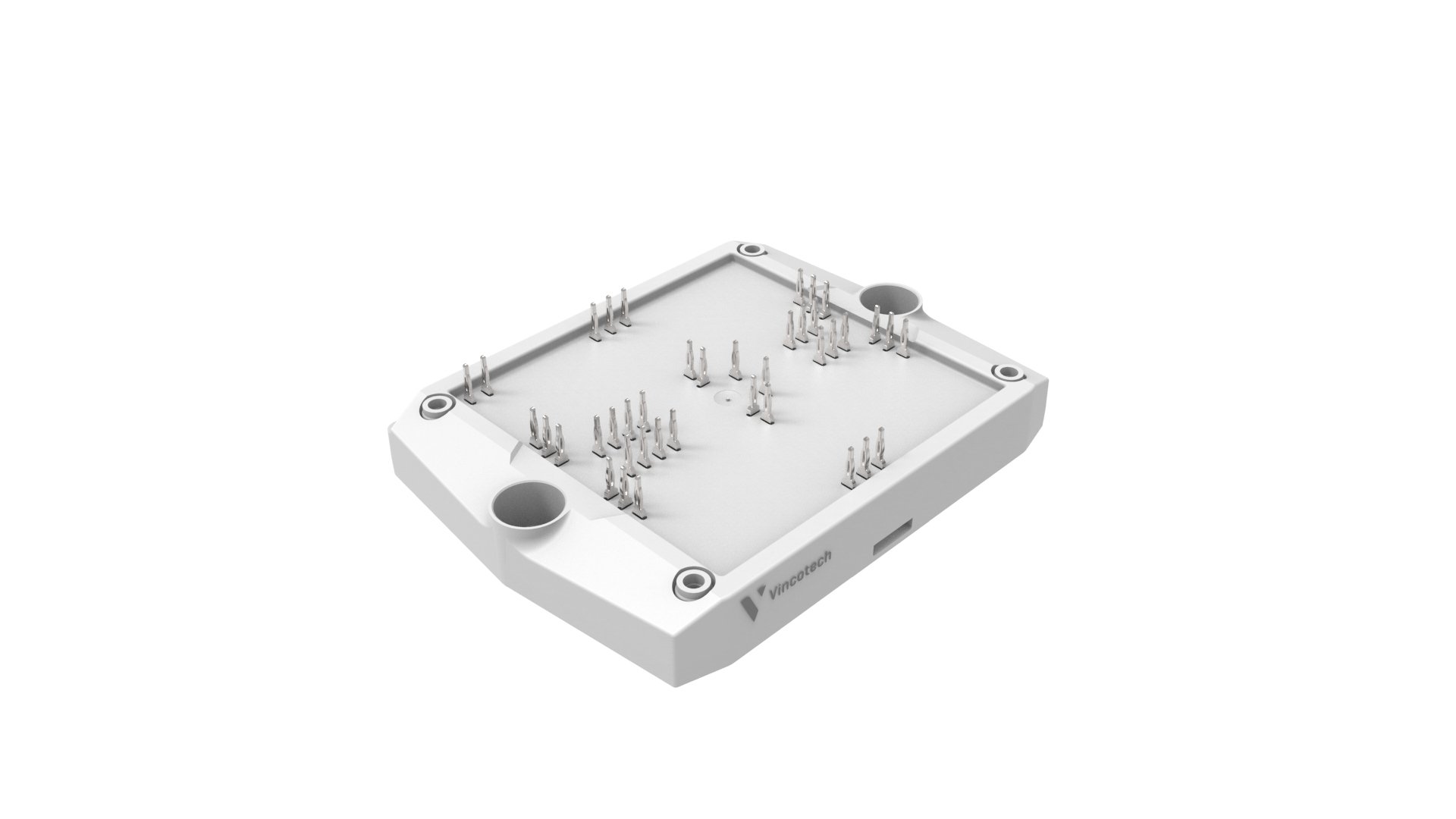

Module housing: | flow S3 |
---|---|
Mechanical connection to the PCB: | 4 towers |
Footprint: | 81.8 mm x 61.3 mm |
Height: | 12 mm |
- CTI600 housing material
- Compact, baseplate-less housing
- VINcoPress Technology
- Thermo-mechanical push-and-pull force relief
- Press-fit pin
- Reliable cold welding connection
Related documents
-
Handling instruction
PDF, 2 MB
The handling instruction gives information during the design phase of the application and for usage in the production.
To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown. -
Packaging datasheet
PDF, 369 kB
The package data gives information about dimensions of the housing.
-
3D module outline (STEP)
STP, 5 MB
The 3D step file can be downloaded for the implementation into your CAD system.
-
Power module datasheet explanation
PDF, 4 MB
Explanation of measurement conditions and data sources used in Vincotech’s power module datasheets.
-
Product Qualification at Vincotech
PDF, 293 kB
Vincotech’s qualification tests follow the minimum requirements for the series release of power modules described in this document. These tests also apply for release and re-qualification of modified products.
-
UL (Underwriters laboratories)
PDF,
652 kB
Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.
-
RoHS
PDF, 155 kB
All Vincotech standard power modules comply with the RoHS specification.
