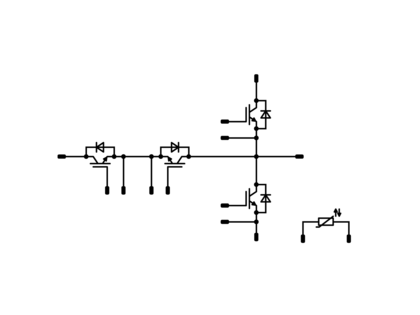

Topology schematics

Three-level MNPC (T-Type)

  • Three-level MNPC (T-Type)
More about Three-level MNPC (T-Type)
  • Sub-Topology
      Reset selected filters Products by Topology
    • Product line
      Reset selected filters
    • Voltage
      in V
        Reset selected filters
      • Current
        in A
        Reset selected filters
      • Main Chip technology
          Reset selected filters
        • Housing Family
            Reset selected filters Products by Housing
          • Height
            in mm
              Reset selected filters
            0 Products
            Download Selection
            View
            Part-No Product status Topology Sub-Topology Product line Voltage

            in V            		 Current

            in A            		 Main Chip technology Housing family Height in

            mm            		 Isolation Module datasheet
            10-PY12NMA160SH-M420FY Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC flowMNPC 2 1200 160 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC
            flowMNPC 2
            10-FZ12NMA080SH23-M260F03 In qualification Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-PY07NMA150S5-M824F58Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 1 650 150 IGBT S5 flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 1
            10-PY12M3A025SH-M746F08Y Series production Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 25 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            10-P012NME080SH-M910F09Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 17 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-PZ12NMA080NS03-M260F38Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 Trench Field Stop II IGBT flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            70-W212NMA600NB04-M200P60 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC VINcoMNPC X4 1200 600 IGBT M6 VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            VINcoMNPC X4
            10-FZ12NMA080SM01-L740F58 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC flowMNPC 0 1200 80 Trench Field Stop IGBT flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            flowMNPC 0
            10-FZ12NMA080NS03-M260F38 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 Trench Field Stop II IGBT flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-FY12NMA160SH09-M820F98 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC flowMNPC 1 1200 160 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC
            flowMNPC 1
            10-PY12NMA160SH09-M820F98Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC flowMNPC 1 1200 160 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC
            flowMNPC 1
            10-PZ12NMA080SH23-M260F03Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-PZ12NMA080NS07-M260F78Y In qualification Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 Trench Field Stop II IGBT flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-PF12NMA080SH08-M260F98T Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            70-W612M3A1K8SC02-L300FP70 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC VINcoMNPC X12 1200 1800 IGBT4 VINco X12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            VINcoMNPC X12
            10-PY12NMA080SH-M427FY Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC flowMNPC 1 1200 80 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC
            flowMNPC 1
            30-PT12NMA200SH-M660F08Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-NTC flowMNPC 2 1200 200 IGBT4 HS flow 2 13 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-NTC
            flowMNPC 2
            70-W212NMA600M7-LC09F71 Series production Three-level MNPC (T-Type) MNPC-Cap-NTC VINcoMNPC X4 1200 600 IGBT M7 VINco X4 Al2O3 Module datasheet:PDF
            MNPC-Cap-NTC
            VINcoMNPC X4
            70-W612NMA1K8M702-LC09FP70 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC VINcoMNPC X12 1200 1800 IGBT M7 VINco X12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            VINcoMNPC X12
            10-P112M3A025SH-M746F09Y Series production Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 25 IGBT4 HS flow 1 17 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            10-PY12M3A040SH-M749F08Y Series production Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 40 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            10-FY07NMA150S5-M824F58 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 1 650 150 IGBT S5 flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 1
            10-FY07NMB150S5-LE75F08 In qualification Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 1 650 150 IGBT S5 flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 1
            10-FY12NMA160SH-M420F Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC flowMNPC 1 1200 160 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC
            flowMNPC 1
            10-FZ12NMA080SH-M269F Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-FZ12NMA080SH01-M260F Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-PZ12NMA080SH-M269FY Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-PZ12NMA080SH01-M260FY Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            30-FT12NMA160SH04-M669F48 In qualification Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-NTC flowMNPC 2 1200 160 IGBT4 HS flow 2 13 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-NTC
            flowMNPC 2
            30-PT12NMA160SH04-M669F48Y In qualification Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-NTC flowMNPC 2 1200 160 IGBT4 HS flow 2 13 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-NTC
            flowMNPC 2
            30-FT12NMA200SH-M660F08 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-NTC flowMNPC 2 1200 200 IGBT4 HS flow 2 13 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-NTC
            flowMNPC 2
            30-FT12NMA160SH-M669F08 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-NTC flowMNPC 2 1200 160 IGBT4 HS flow 2 13 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-NTC
            flowMNPC 2
            30-PT12NMA160SH02-M669F28Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-NTC flowMNPC 2 1200 160 IGBT4 HS flow 2 13 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-NTC
            flowMNPC 2
            10-PZ07NMA100SM-M265F58Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 650 100 IGBT H5 flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-PZ12NMA040SH-M267FY Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 40 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            70-W212NMA800M7-LC00F70 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC VINcoMNPC X4 1200 800 IGBT M7 VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            VINcoMNPC X4
            30-FT12NMA200SH01-M660F18 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-NTC flowMNPC 2 1200 200 IGBT4 HS flow 2 13 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-NTC
            flowMNPC 2
            70-W212NMA400M7-LC08F71 Series production Three-level MNPC (T-Type) MNPC-Cap-NTC VINcoMNPC X4 1200 400 IGBT M7 VINco X4 Al2O3 Module datasheet:PDF
            MNPC-Cap-NTC
            VINcoMNPC X4
            10-FY12M3A025SH-M746F08 Series production Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 25 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            10-FY12M3A040SH-M749F08 Series production Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 40 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            70-W212NMA600SC-M200P Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC VINcoMNPC X4 1200 600 IGBT4 VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            VINcoMNPC X4
            10-FY12NMA080SH-M427F Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC flowMNPC 1 1200 80 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC
            flowMNPC 1
            10-PC12NMA080NS03-M260F36Y In qualification Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 Trench Field Stop II IGBT flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            70-W212NMA300SC-M208P Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC VINcoMNPC X4 1200 300 IGBT4 VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            VINcoMNPC X4
            70-W212NMA400SC-M209P Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC VINcoMNPC X4 1200 400 IGBT4 VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            VINcoMNPC X4
            10-FZ12NMA040SH-M267F Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 40 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-F112M3A025SH-M746F09 Series production Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 25 IGBT4 HS flow 1 17 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            10-F112M3A040SH-M749F09 Series production Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 40 IGBT4 HS flow 1 17 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            10-FZ07NMA100SM-M265F58 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 650 100 IGBT H5 flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-FY12NMA160SH01-M820F18 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC flowMNPC 1 1200 160 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC
            flowMNPC 1
            70-W212NMC600SH01-M700P Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC VINcoMNPC X4 1200 600 IGBT4 HS VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            VINcoMNPC X4
            10-F012NME080SH-M910F09 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 17 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-FZ12NMA080SH04-M260F13 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            10-PZ12NMA080SH04-M260F13Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC flowMNPC 0 1200 80 IGBT4 HS flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            flowMNPC 0
            30-FT12NMA160SH02-M669F28 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-NTC flowMNPC 2 1200 160 IGBT4 HS flow 2 13 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-NTC
            flowMNPC 2
            70-W212NMC400SH01-M709P Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Cap-NTC VINcoMNPC X4 1200 400 IGBT4 HS VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Cap-NTC
            VINcoMNPC X4
            10-FY12M3A015SH01-M743F68 In qualification Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 15 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            10-PY12M3A015SH01-M743F68Y In qualification Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 15 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
            70-W212NMA600NB02-M200P62 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC VINcoMNPC X4 1200 600 IGBT M6 VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            VINcoMNPC X4
            10-PY12NMA160SH01-M820F18Y Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC flowMNPC 1 1200 160 IGBT4 HS flow 1 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC
            flowMNPC 1
            70-W212NMA400NB02-M209P62 Series production Three-level MNPC (T-Type) MNPC (T-type)-KE-NTC VINcoMNPC X4 1200 400 IGBT M6 VINco X4 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-NTC
            VINcoMNPC X4
            10-PZ12NMA027MR-M340F68Y In qualification Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC-Common Emitter flowMNPC 0 SiC 1200 100 SiC MOSFET flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC-Common Emitter
            flowMNPC 0 SIC
            10-PZ12NMA027ME-M340F63Y In qualification Three-level MNPC (T-Type) MNPC (T-type)-KE-Split Output-Cap-NTC-Common Emitter flowMNPC 0 SiC 1200 100 SiC MOSFET flow 0 12 Al2O3 Module datasheet:PDF
            MNPC (T-type)-KE-Split Output-Cap-NTC-Common Emitter
            flowMNPC 0 SIC
            10-P112M3A040SH-M749F09Y In qualification Three-level MNPC (T-Type) 3xMNPC (T-type)-KE-NTC flow3xMNPC 1 1200 40 IGBT4 HS flow 1 17 Al2O3 Module datasheet:PDF
            3xMNPC (T-type)-KE-NTC
            flow3xMNPC 1
