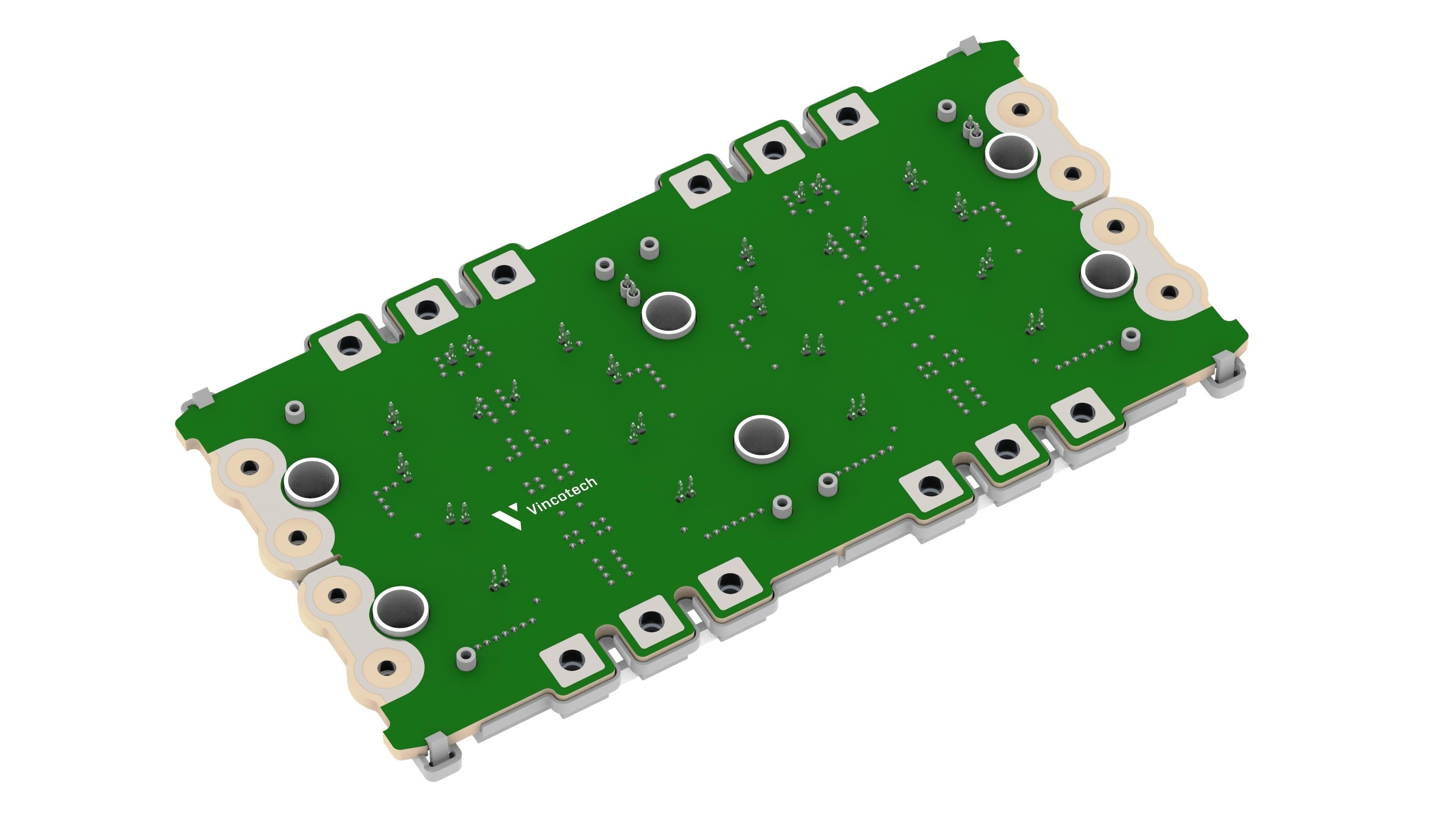

Power components for UPS and ESS applications. Modules for AC/DC and DC/AC power conversion. Topologies such as single- and three-phase rectifiers, half and H-bridges, boosters, buck-boosters and NPC/MNPC/ANPC. Power ranges up to 200 kW.
- More about:
UPS
Energy Storage Systems - Download:
1500 V Energy Storage Solutions (PDF)
- Topology
- Sub-Topology
-
Product line
-
Voltage in V
-
Current in A
-
Main Chip technology
- Housing Family
-
Height in mm
Part-no details / Part-no datasheet | Product status | Topology | Sub-Topology | Product line | Voltage in V |
Current in A |
Main Chip technology | Housing family | Height in mm |
Isolation | Simulation | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10- |
In qualification | PFC (Single-phase applications) | Dual Boost PFC-Half Controlled-Shunt-Cap-NTC | flowPFC 0 | 600 | 20 | Infineon CoolMOS™ P7 | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 | flow 0 | 17 | AlN | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 1 symmetric | 650 | 225 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half-Bridge-NTC | flowDUAL E1 SiC | 1200 | 50 | SiC MOSFET | flow E1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | VINcoNPC X12 | 1200 | 1200 | IGBT4 HS | VINco X12 | Al2O3 | On demand |
![]() ![]() |
||
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 1 | 650 | 100 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 80 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 1 | 650 | 100 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 1 | 650 | 150 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 650 | 75 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 150 | IGBT3 HS | flow 1 | 17 | AlN | Simulate this module |
![]() ![]() |
|
10- |
In qualification | PFC (Three-phase applications) | 3xANPFC-NTC | flow3xANPFC 1 | 650 | 50 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 3 | 1200 | 400 | IGBT4 | MiniSKiiP® DUAL 3 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 40 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 900 | 80 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 150 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 2 | 650 | 200 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | PFC (Single-phase applications) | Dual Boost PFC-Half Controlled-Shunt-Cap-NTC | flowPFC 0 | 600 | 20 | Infineon CoolMOS™ P7 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 150 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 2 | 650 | 200 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 2 | 1200 | 300 | IGBT M7 | MiniSKiiP® DUAL 2 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 300 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | H-Bridge | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 15 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 40 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half-Bridge-NTC | flowDUAL E2 SiC | 1200 | 250 | SiC MOSFET | flow E2 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 40 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 2 | 1200 | 200 | IGBT4 | MiniSKiiP® DUAL 2 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | H-Bridge | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 15 | IGBT4 HS | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 1 symmetric | 650 | 150 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | VINcoNPC X12 | 1200 | 1200 | IGBT M7 | VINco X12 | Al2O3 | Simulate this module |
![]() ![]() |
||
V23990- |
Series production | H-Bridge | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 600 | 100 | IGBT3 | flow 1 | 12 | Al2O3 | On demand |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | 3x Booster-KE-Bypass diode-NTC | flow3xBOOST 1 | 1200 | 80 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC E2 SiC | 1200 | 120 | SiC MOSFET | flow E2 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | Dual Boost-KE-Cap-Bypass diode-NTC | flowBOOST 1 dual SiC | 1200 | 35 | SiC MOSFET | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
In qualification | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 2 | 1200 | 200 | IGBT4 | MiniSKiiP® DUAL 2 | 16 | Si3N4 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-Cap-NTC | flowMNPC 1 | 1200 | 160 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 1200 | 30 | IGBT3 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | 3xNPFC-NTC | flow3xNPFC 1 | 650 | 30 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Pos-NTC | flowNPC S3 split | 950 | 600 | IGBT S7 | flow S3 | 12 | AlN | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 600 | 75 | IGBT3 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Neg-NTC | flowNPC S3 split | 950 | 600 | IGBT S7 | flow S3 | 12 | AlN | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | H-Bridge | H-Bridge-KE-NTC | fastPACK 0 | 650 | 50 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Pos-NTC | flowNPC S3 split | 950 | 600 | IGBT S7 | flow S3 | 12 | AlN | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Neg-NTC | flowNPC S3 split | 950 | 600 | IGBT S7 | flow S3 | 12 | AlN | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 2 | 650 | 300 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 200 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 1200 | 200 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 600 | 30 | IGBT3 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | VINcoNPC X12 | 1200 | 1200 | IGBT4 | VINco X12 | Al2O3 | On demand |
![]() ![]() |
||
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 150 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-OE-KE-NTC | fastPACK E2 SiC | 1200 | 80 | SiC MOSFET | flow E2 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | VINcoMNPC X12 | 1200 | 1800 | IGBT4 | VINco X12 | Al2O3 | On demand |
![]() ![]() |
||
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 40 | IGBT4 HS | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | 3xNPFC-NTC | flow3xNPFC 1 | 650 | 30 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 450 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 150 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 900 | 80 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-NTC | flowMNPC 2 | 1200 | 200 | IGBT4 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
In qualification | Three-level NPC (I-Type) | NPC-KE-NTC | VINcoNPC X12 | 1200 | 1800 | IGBT M7 | VINco X12 | Al2O3 | Simulate this module |
![]() ![]() |
||
10- |
Series production | PFC (Three-phase applications) | 3xANPFC-NTC | flow3xANPFC 1 | 650 | 50 | IGBT fast | flow 1 | 12 | Al2O3 | On demand |
![]() ![]() |
|
10- |
Discontinued | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-Cap-NTC | flowMNPC 1 | 1200 | 160 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 150 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Discontinued | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-Cap-NTC | flowMNPC 1 | 1200 | 160 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 1 | 650 | 100 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 600 | 100 | IGBT3 | flow 1 | 12 | Al2O3 | On demand |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 200 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 80 | IGBT H5 | flow 1 | 12 | Al2O3 | On demand |
![]() ![]() |
|
10- |
In qualification | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC E2 SiC | 1200 | 120 | SiC MOSFET | flow E2 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 1 | 650 | 100 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 40 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 40 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 2 | 1200 | 200 | IGBT M7 | MiniSKiiP® DUAL 2 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
In qualification | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 2 | 1200 | 200 | IGBT4 | MiniSKiiP® DUAL 2 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 80 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Pos-NTC | flowNPC 1 split | 1200 | 150 | IGBT4 HS | flow 1 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Neg-NTC | flowNPC 1 split | 1200 | 150 | IGBT4 HS | flow 1 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 50 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 50 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 40 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual SiC | 1200 | 20 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | Dual-Booster-KE-Cap-NTC | flowBOOST 0 dual | 600 | 20 | Infineon CoolMOS™ P7 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 25 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Cap-NTC | flowMNPC 1 | 1200 | 160 | IGBT fast | flow 1 | 12 | Al2O3 | On demand |
![]() ![]() |
|
B0- |
Series production | Booster Symmetric | Triple Symm. Boost-KE-Bypass diode-NTC | flowBOOST S3 symmetric triple | 950 | 100 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-NTC | fastPACK E1 SiC | 1200 | 50 | SiC MOSFET | flow E1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC-Cap-NTC | VINcoMNPC X4 | 1200 | 600 | IGBT M7 | VINco X4 | Al2O3 | Simulate this module |
![]() ![]() |
||
10- |
In qualification | Three-level FC Inverter | FC-KE-NTC-Cap | flowFC 1 | 1200 | 200 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 25 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level FC Inverter | FC-KE-NTC-Cap | flowFC 1 | 1200 | 200 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC-Cap-NTC | VINcoMNPC X12 | 1200 | 1800 | IGBT M7 | VINco X12 | Al2O3 | Simulate this module |
![]() ![]() |
||
10- |
Series production | PFC (Three-phase applications) | ANPFC-KE-Cap-NTC | flowANPFC 0 | 650 | 100 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 2 | 1200 | 150 | IGBT4 | MiniSKiiP® DUAL 2 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 25 | IGBT4 HS | flow 1 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
In qualification | Three-level NPC (I-Type) | NPC-KE-NTC | VINcoNPC X4 | 1200 | 400 | IGBT M7 | VINco X4 | Al2O3 | Simulate this module |
![]() ![]() |
||
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 600 | 50 | IGBT3 | flow 0 | 12 | Al2O3 | On demand |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 1 symmetric | 650 | 75 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
In qualification | PFC (Three-phase applications) | 3xANPFC-NTC | flow3xANPFC 2 | 650 | 100 | IGBT fast | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 600 | 75 | IGBT3 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 600 | 150 | IGBT3 | flow 1 | 17 | Al2O3 | On demand |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 30 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 200 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 1 | 650 | 150 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 150 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
In qualification | Three-level NPC (I-Type) | NPC-Split-KE-NTC | flowNPC 2 | 950 | 400 | IGBT S7 | flow 2 | 13 | AlN | Simulate this module |
![]() ![]() |
|
30- |
In qualification | Three-level NPC (I-Type) | NPC-Split-KE-NTC | flowNPC 2 | 950 | 400 | IGBT S7 | flow 2 | 13 | Si3N4 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | NPFC-Cap-NTC | flowNPFC 0 | 650 | 100 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | 2xHalf Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 1200 | 40 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 50 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | SPFC-KE-Cap-NTC | flowSPFC 0 | 650 | 100 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 100 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
In qualification | Three-level FC Inverter | FC-KE-NTC-Cap | flowFC S3 | 950 | 200 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 0 symmetric | 650 | 100 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 690 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 | 650 | 100 | IGBT S5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-OE-KE-NTC | fastPACK E2 SiC | 1200 | 120 | SiC MOSFET | flow E2 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Dual Symm. Boost-KE-Bypass diode-NTC | flowBOOST 1 symmetric dual | 1200 | 40 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Booster | Triple Boost-KE-Cap-NTC | flow3xBOOST 0 SiC | 1200 | 35 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | SPFC-KE-NTC | flowSPFC 0 | 650 | 75 | IGBT S5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-NTC | flowMNPC 2 | 1200 | 160 | IGBT4 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 650 | 75 | IGBT S5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Buck-Booster Symmetric | Symm. Buck Boost-KE-NTC | flowBUCK-BOOST 0 | 650 | 75 | IGBT S5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-NTC | flowMNPC 2 | 1200 | 160 | IGBT4 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 0 symmetric | 650 | 100 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 1 symmetric | 650 | 100 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Buck-Booster Symmetric | Symm. Buck Boost-KE-NTC | flowBUCK-BOOST 1 | 650 | 150 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
In qualification | Three-level NPC (I-Type) | NPC-Split-KE-Pos-NTC | flowNPC S3 split | 650 | 300 | IGBT S5 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 150 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
In qualification | Three-level NPC (I-Type) | NPC-Split-KE-Neg-NTC | flowNPC S3 split | 650 | 300 | IGBT S5 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | Triple Boost-KE-Bypass diode-NTC | flowBOOST 1 triple | 1200 | 80 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 600 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | 2xHalf Bridge-KE-Cap-NTC | fastPACK 0 SiC | 1200 | 20 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | Triple Boost-KE-Bypass diode-NTC | flowBOOST 1 triple | 1200 | 80 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Booster | Dual Boost-KE-Cap-Bypass diode-NTC | flowBOOST 1 dual SiC | 1200 | 35 | SiC MOSFET | flow 1 | 12 | Al2O3 | On demand |
![]() ![]() |
|
10- |
Series production | Booster | Triple Boost-KE-Bypass diode-NTC | flowBOOST 1 triple | 1200 | 80 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 1 symmetric | 650 | 160 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 690 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-NTC | flowMNPC 2 | 1200 | 200 | IGBT4 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 100 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 50 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
In qualification | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC S3 | 950 | 300 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 300 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 150 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level FC Inverter | FC-KE-NTC-Cap | flowFC 0 | 650 | 100 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | PFC (Three-phase applications) | ANPFC-KE-CAP-NTC | flowANPFC 1 | 650 | 100 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-NTC | flowMNPC 2 | 1200 | 160 | IGBT4 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 200 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half-Bridge-NTC | flowDUAL E2 SiC | 1200 | 200 | SiC MOSFET | flow E2 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | ANPFC-KE-Cap-NTC | flowANPFC 0 | 650 | 100 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 650 | 100 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 650 | 75 | IGBT S5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | VINcoMNPC X4 | 1200 | 800 | IGBT M7 | VINco X4 | Al2O3 | Simulate this module |
![]() ![]() |
||
30- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-NTC | flowMNPC 2 | 1200 | 200 | IGBT4 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Discontinued | Booster | Dual Boost-KE-Cap-NTC | flowBOOST 0 dual | 650 | 30 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 40 | IGBT4 HS | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC-Cap-NTC | VINcoMNPC X4 | 1200 | 400 | IGBT M7 | VINco X4 | Al2O3 | Simulate this module |
![]() ![]() |
||
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-Cap-NTC | flowMNPC 1 | 1200 | 160 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
Series production | Three-level NPC (I-Type) | NPC-KE-Cap-NTC | flowNPC S3 | 650 | 300 | IGBT S5 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | Dual Boost-KE-Cap-Bypass diode-NTC | flowBOOST 1 dual SiC | 1200 | 35 | SiC MOSFET | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Booster | Dual Boost-KE-Cap-Bypass diode-NTC | flowBOOST 1 dual SiC | 1200 | 25 | SiC MOSFET | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 450 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
A0- |
Series production | Half-Bridge | Half Bridge-NTC | VINcoDUAL E3 | 1200 | 600 | IGBT M7 | VINco E3s | 17 | IMB | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-NTC-Tandem diodes | flowNPC 2 | 1200 | 150 | IGBT4 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 2 | 650 | 200 | IGBT3 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | 3xANPFC-NTC | flow3xANPFC 1 | 650 | 30 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Cap-NTC | VINcoMNPC X4 | 1200 | 600 | IGBT4 | VINco X4 | Al2O3 | On demand |
![]() ![]() |
||
B0- |
Series production | Booster Symmetric | Triple Symm. Boost-KE-Bypass diode-NTC | flowBOOST S3 symmetric triple | 950 | 100 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level NPC (I-Type) | NPC-KE-DC snubber diode-DC-NTC | VINcoNPC X8 | 1200 | 800 | IGBT4 HS | VINco X8 | Al2O3 | On demand |
![]() ![]() |
||
10- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual SiC | 1200 | 20 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Cap-NTC | VINcoMNPC X4 | 1200 | 300 | IGBT4 | VINco X4 | Al2O3 | Simulate this module |
![]() ![]() |
||
10- |
Series production | Three-level NPC (I-Type) | 3x-NPC-KE-NTC | flow3xNPC 1 | 650 | 50 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
In qualification | Three-level FC Inverter | FC-KE-NTC-Cap-Split-Out | flowFC S3 split | 950 | 600 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Cap-NTC | VINcoMNPC X4 | 1200 | 400 | IGBT4 | VINco X4 | Al2O3 | Simulate this module |
![]() ![]() |
||
10- |
Series production | Three-level NPC (I-Type) | 3x-NPC-KE-NTC | flow3xNPC 1 | 650 | 30 | IGBT S5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
In qualification | Three-level FC Inverter | FC-KE-NTC-Cap-Split-In | flowFC S3 split | 950 | 600 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | 3xANPFC-NTC | flow3xANPFC 1 | 650 | 50 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 40 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 3 | 1200 | 300 | IGBT M7 | MiniSKiiP® DUAL 3 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 900 | 40 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 3 | 1200 | 400 | IGBT M7 | MiniSKiiP® DUAL 3 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 0 symmetric | 600 | 75 | IGBT3 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
Series production | Booster Symmetric | Triple Symm. Boost-KE-Bypass diode-NTC | flowBOOST S3 symmetric triple | 950 | 100 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 0 symmetric | 600 | 30 | IGBT3 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 | 650 | 100 | IGBT S5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 0 symmetric | 600 | 50 | IGBT3 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 40 | IGBT4 HS | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 25 | IGBT4 HS | flow 1 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 80 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 0 symmetric | 650 | 50 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
In qualification | Three-level NPC (I-Type) | NPC-Split-KE-NTC | flowNPC 2 | 950 | 400 | IGBT S7 | flow 2 | 13 | AlN | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Booster | Dual Boost-KE-Cap-NTC | flowBOOST 0 dual SiC | 1200 | 35 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 3 | 1200 | 300 | IGBT4 | MiniSKiiP® DUAL 3 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 650 | 100 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Discontinued | Booster | Triple Boost-KE-Cap-NTC | flowBOOST 0 triple | 650 | 30 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Cap-NTC | VINcoMNPC X4 | 1200 | 600 | IGBT4 HS | VINco X4 | Al2O3 | Simulate this module |
![]() ![]() |
||
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 50 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
80- |
Series production | Half-Bridge | Half Bridge-NTC | MiniSKiiP® DUAL 2 | 1200 | 150 | IGBT M7 | MiniSKiiP® DUAL 2 | 16 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Booster Symmetric | Symm. Boost-KE-Bypass diode-NTC | flowBOOST 2 symmetric | 600 | 200 | IGBT3 HS | flow 2 | 17 | Al2O3 | On demand |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 2 | 650 | 300 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 600 | 100 | IGBT3 | flow 1 | 17 | Al2O3 | On demand |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 75 | IGBT4 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 IGBT | 650 | 50 | IGBT3 | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Booster Symmetric | Symm. Boost-KE-Cap-NTC | VINcoBOOST X4 symmetric | 600 | 600 | IGBT3 | VINco X4 | Al2O3 | On demand |
![]() ![]() |
||
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-NTC | flowMNPC 0 | 1200 | 80 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-NTC | flowMNPC 2 | 1200 | 160 | IGBT4 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 | flow 0 | 12 | AlN | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 200 | IGBT fast | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Dual Symm. Boost-KE-Bypass diode-NTC | flowBOOST 1 symmetric dual | 900 | 50 | SiC MOSFET | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Dual Symm. Boost-KE-Bypass diode-NTC | flowBOOST 1 symmetric dual | 1200 | 75 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Cap-NTC | VINcoMNPC X4 | 1200 | 400 | IGBT4 HS | VINco X4 | Al2O3 | On demand |
![]() ![]() |
||
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 1 | 650 | 150 | IGBT3 HS | flow 1 | 17 | AlN | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 15 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 200 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 | flow 0 | 17 | AlN | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 15 | IGBT4 HS | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 25 | IGBT4 HS | flow 1 | 12 | Al2O3 | On demand |
![]() ![]() |
|
70- |
Series production | Three-level NPC (I-Type) | NPC-KE-DC snubber diode-DC-NTC | VINcoNPC X4 | 1200 | 400 | IGBT4 HS | VINco X4 | Al2O3 | On demand |
![]() ![]() |
||
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 HS | flow 0 | 12 | AlN | Simulate this module |
![]() ![]() |
|
B0- |
In qualification | Three-level FC Inverter | Triple FC-KE-NTC | flow3xBUCK-BOOST S3 | 950 | 100 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level MNPC (T-Type) | 3xMNPC (T-type)-KE-NTC | flow3xMNPC 1 | 1200 | 25 | IGBT4 HS | flow 1 | 12 | Al2O3 | On demand |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 100 | IGBT4 | flow 0 | 12 | AlN | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | 3xNPFC-NTC | flow3xNPFC 1 | 650 | 30 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Half-Bridge | Half Bridge-NTC | flowPHASE 0 + NTC | 1200 | 50 | IGBT4 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | 3ph Advanced Neutral PFC | flow3xANPFC 0 | 650 | 30 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 0 | 650 | 50 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-NTC | flowNPC 2 | 950 | 400 | IGBT S7 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Booster Symmetric | Symm. Boost-KE-Cap-NTC | VINcoBOOST X4 symmetric | 600 | 400 | IGBT3 | VINco X4 | Al2O3 | On demand |
![]() ![]() |
||
10- |
Not recommended for new designs | PFC (Single-phase applications) | Dual Boost PFC-Half Controlled-Shunt-Cap-NTC | flowPFC 0 | 600 | 36 | Infineon CoolMOS™ C6 | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-NTC | flowNPC 2 | 950 | 400 | IGBT S7 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
Series production | Three-level NPC (I-Type) | NPC-KE-DC snubber diode-DC-NTC | VINcoNPC X8 | 1200 | 800 | IGBT M7 | VINco X8 | Al2O3 | On demand |
![]() ![]() |
||
30- |
Series production | Three-level NPC (I-Type) | NPC-KE-Cap-NTC | flowNPC 2 | 650 | 300 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | Triple Boost-KE-Cap-NTC | flowBOOST 0 triple | 650 | 30 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-OE-KE-NTC | fastPACK E1 SiC | 1200 | 70 | SiC MOSFET | flow E1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-Cap-NTC-Common Emitter | flowMNPC 0 SiC | 1200 | 100 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-KE-Cap-NTC | flowNPC 2 | 650 | 300 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | Three-level MNPC (T-Type) | MNPC (T-type)-KE-Split Output-Cap-NTC-Common Emitter | flowMNPC 0 SiC | 1200 | 60 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 30 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
Series production | Buck-Booster Symmetric | Triple Buck Boost-KE-NTC-Cap | flow3xBUCK-BOOST S3 | 950 | 100 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 50 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | H-Bridge | 2xHalf Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 900 | 70 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
In qualification | H-Bridge | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | 3ph Advanced Neutral PFC | flow3xANPFC 0 | 650 | 30 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | H-Bridge | H-Bridge-KE-NTC | fastPACK 0 | 650 | 50 | IGBT H5 | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | PFC (Single-phase applications) | Dual Boost PFC-CSC-Shunt-Cap-NTC | flowPFC 0 CD | 650 | 50 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-KE-NTC | flowNPC 2 | 650 | 200 | IGBT3 HS | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-OE-KE-NTC | fastPACK 0 SiC | 900 | 80 | SiC MOSFET | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
In qualification | PFC (Single-phase applications) | Dual Boost PFC-Half Controlled-CSE-Shunt-Cap-NTC | flowPFC 0 CD | 600 | 15 | Infineon CoolMOS™ P7 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Three-level NPC (I-Type) | NPC-KE-CAP-NTC | flowNPC 1 | 650 | 80 | IGBT H5 | flow 1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-OE-KE-NTC | fastPACK E1 SiC | 1200 | 40 | SiC MOSFET | flow E1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | flow 0 | 17 | Al2O3 | Simulate this module |
![]() ![]() |
|
70- |
In qualification | Three-level NPC (I-Type) | NPC-KE-NTC | VINcoNPC X8 | 1200 | 1200 | IGBT M7 | VINco X8 | Al2O3 | Simulate this module |
![]() ![]() |
||
10- |
Series production | Half-Bridge | Half-Bridge-NTC | flowDUAL E1 SiC | 1200 | 100 | SiC MOSFET | flow E1 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Cap-NTC | flowNPC 2 | 650 | 600 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster | Dual Boost-KE-Cap-NTC | flowBOOST 0 dual | 650 | 30 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Cap-NTC | flowNPC 2 | 650 | 450 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Cap-NTC | flowNPC 2 | 650 | 450 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
30- |
Series production | Three-level NPC (I-Type) | NPC-Split-KE-Cap-NTC | flowNPC 2 | 650 | 600 | IGBT S5 | flow 2 | 13 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | SPFC-KE-Cap-NTC | flowSPFC 0 | 650 | 50 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | H-Bridge | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 40 | IGBT fast | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | PFC (Three-phase applications) | SPFC-KE-Cap-NTC | flowSPFC 0 | 650 | 75 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
B0- |
In qualification | Three-level FC Inverter | FC-KE-NTC-Cap | flowFC S3 | 950 | 200 | IGBT S7 | flow S3 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
V23990- |
Series production | Booster | Dual Boost-KE-OE-Bypass diode-NTC | flowBOOST 0 dual | 1200 | 50 | IGBT4 HS | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
|
10- |
Series production | Booster Symmetric | Symm. Boost-KE-NTC | flowBOOST 0 symmetric | 650 | 75 | IGBT H5 | flow 0 | 12 | Al2O3 | Simulate this module |
![]() ![]() |
