flowNPC 2

Basic module information

Part number: 30-FT07NIA450S501-PD68F58
Product line: flowNPC 2
Product status: Series - Preferred
Break down voltage: 650 V
Nominal chip current rating: 450 A
Standard Packing Quantity: 36
Module datasheet: PDF, 10 MB


Product details

Topology: Three-level NPC (I-Type)
  • Integrated DC capacitor
  • Kelvin Emitter for improved switching performance
  • Neutral Point Clamped Topology (I-Type)
  • Split topology
  • Temperature sensor
Chip technology (main switch): IGBT S5
  • High speed and smooth switching
  • Low gate charge
  • Very low collector emitter saturation voltage
Base isolation (e.g. ceramic): Al2O3
Electrical interconnection: Solder pin

Load this product to the simulation environment to get an overview of its performance.

Simulate this module

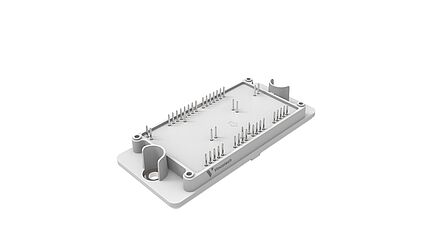

Housing related details

Module housing: flow 2
Mechanical connection to the PCB: 4 towers
Footprint: 107.2 mm x 47 mm
Height: 13 mm
  • Convex shaped baseplate for superior thermal contact
  • Cu baseplate
  • Thermo-mechanical push-and-pull force relief
  • Solder pin

Related documents

  • Handling instruction  PDF, 2 MB

    The handling instruction gives information during the design phase of the application and for usage in the production.
    To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.

  • Packaging datasheet  PDF, 86 kB

    The package data gives information about dimensions of the housing.

  • 3D module outline (STEP)  STP, 2 MB

    The 3D step file can be downloaded for the implementation into your CAD system.

  • Power module datasheet explanation PDF, 4 MB

    Explanation of measurement conditions and data sources used in Vincotech’s power module datasheets.

  • Product Qualification at Vincotech PDF, 293 kB

    Vincotech’s qualification tests follow the minimum requirements for the series release of power modules described in this document. These tests also apply for release and re-qualification of modified products.

  • UL (Underwriters laboratories)  PDF, 652 kB

    Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.

  • RoHS  PDF, 155 kB

    All Vincotech standard power modules comply with the RoHS specification.
