flowNPC 1

Basic module information

Part number: 10-P107NIB150SG06-M136F39Y
Product line: flowNPC 1
Product status: Series production
Break down voltage: 1200 V
Nominal chip current rating: 150 A
Standard Packing Quantity: 100
Module datasheet: PDF, 1 MB
Additional information
  • IGBT3 HS + fast Si diodes, improved Rth (AlN)

Product details

Topology: Three-level NPC (I-Type)
  • Kelvin Emitter for improved switching performance
  • Neutral Point Clamped Topology (I-Type)
  • Temperature sensor
Chip technology (main switch): IGBT3 HS
  • High speed switching
  • Low EMI
  • Low turn-off losses
  • Low collector emitter saturation voltage
Base isolation (e.g. ceramic): AlN
Electrical interconnection: Press-fit pin

Housing related details

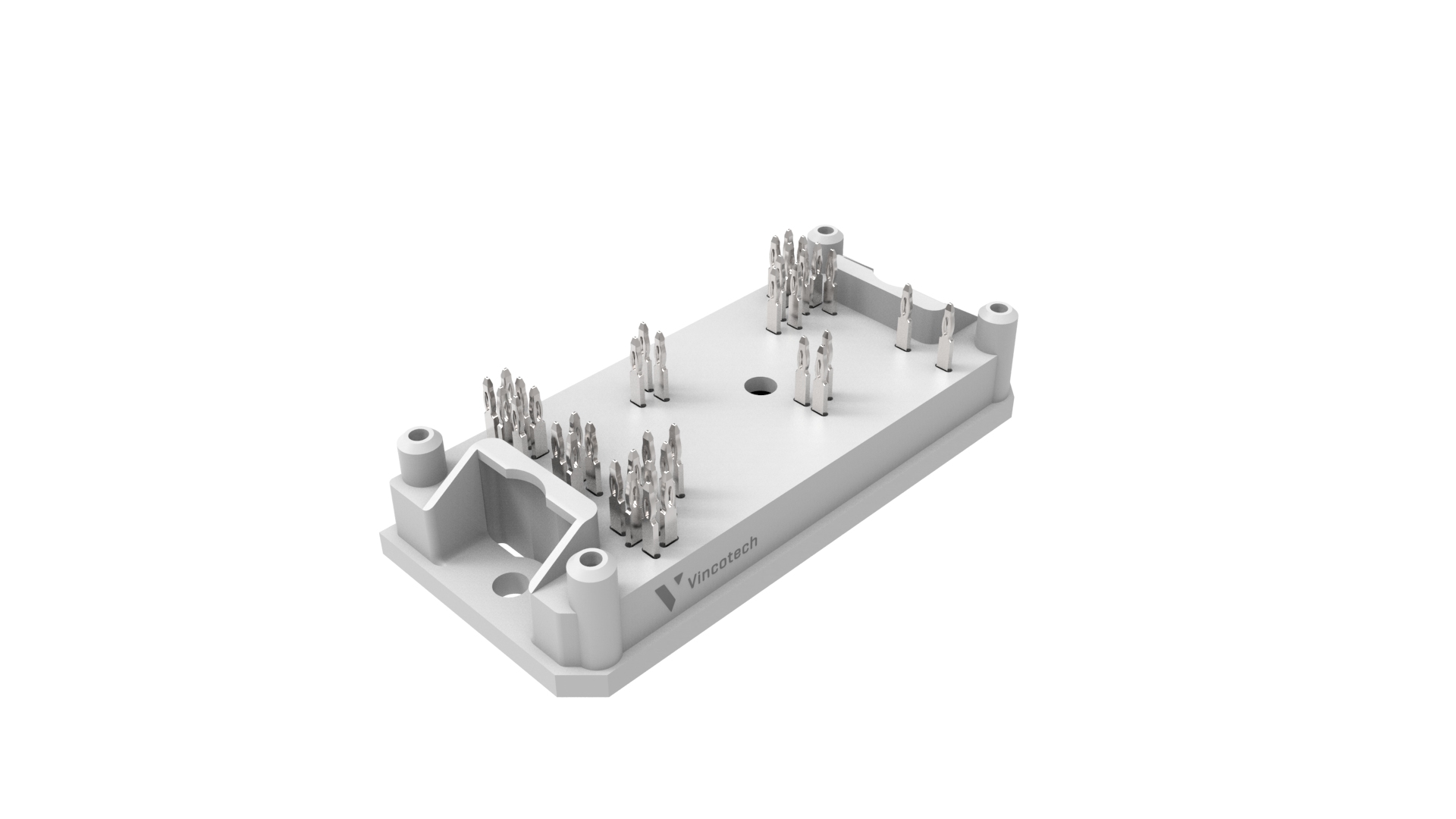

Module housing: flow 1
Mechanical connection to the PCB: 4 towers
Footprint: 82 mm x 37.4 mm
Height: 17 mm
  • Convex shaped substrate for superior thermal contact
  • No PCB hole damage to enable reuse
  • Reliable cold welding connection to PCB
  • Thermo-mechanical push-and-pull force relief
