flowCON 0B

Basic module information

Part number: 10-0B166BA028SC-M989G09
Product line: flowCON 0B
Product status: Series production
Break down voltage: 1600 V
Nominal chip current rating: 28 A
Standard Packing Quantity: 160
Module datasheet: PDF, 8 MB

Product details

Topology: Rectifier (+Brake)
  • Three-phase Rectifier
  • Brake Chopper
Chip technology (main switch): Rectifier
  • High inrush current capability
Base isolation (e.g. ceramic): Al2O3
Electrical interconnection: Solder pin

Load this product to the simulation environment to get an overview of its performance.

Simulate this module

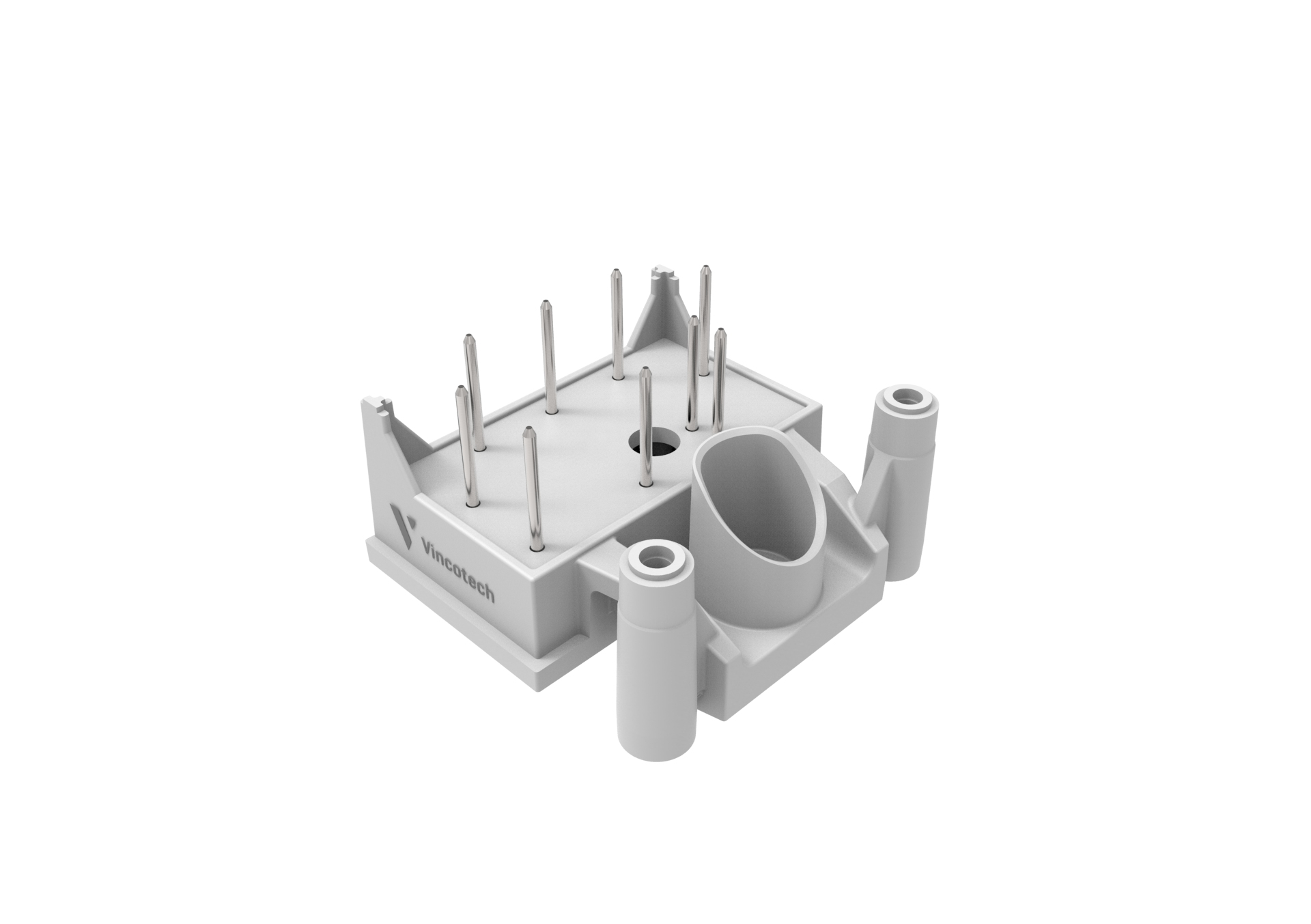

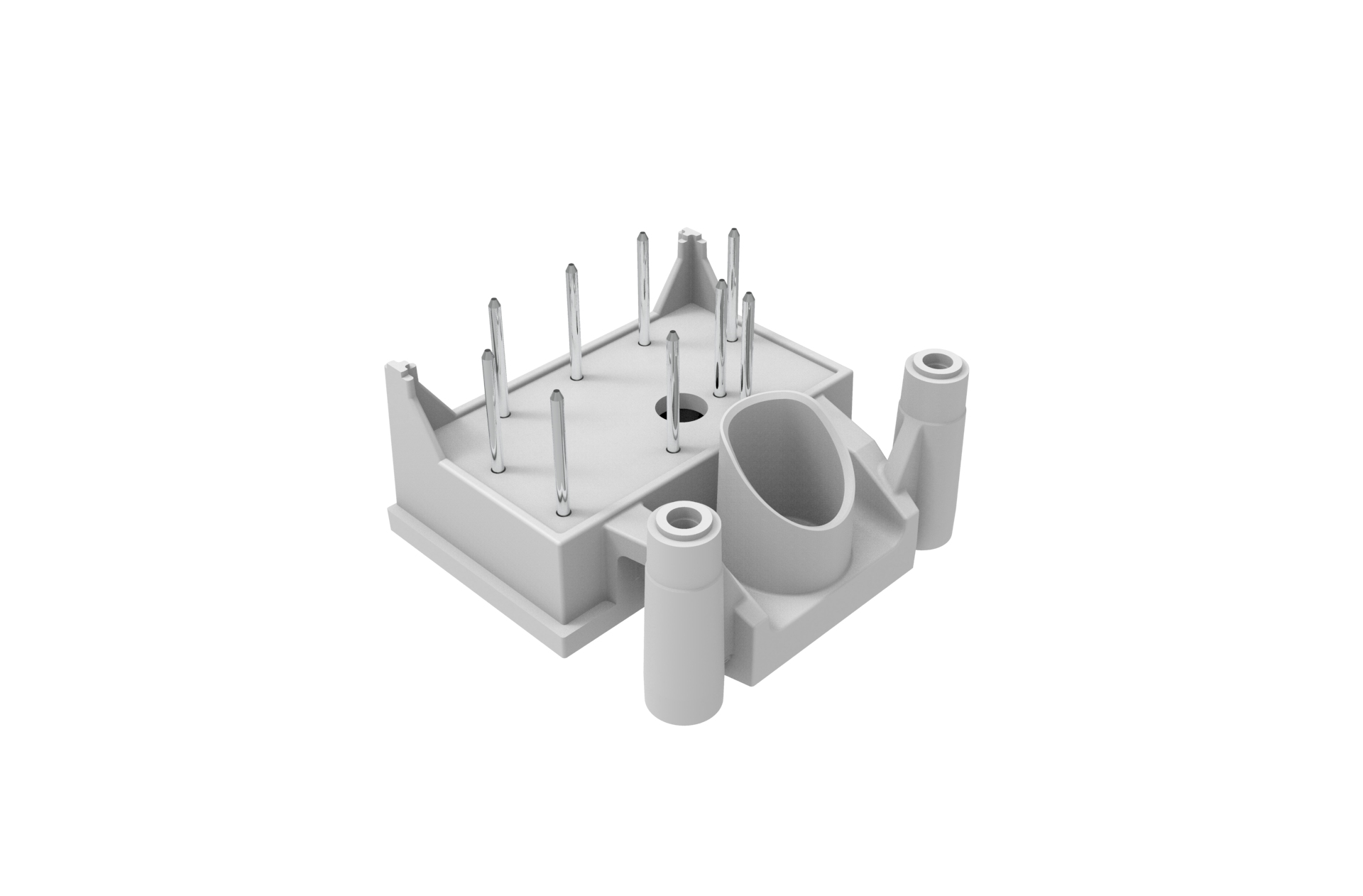

Housing related details

Module housing: flow 0B
Mechanical connection to the PCB: 2 towers
Footprint: 36.6 mm x 34.9 mm
Height: 17 mm
  • Single screw heat sink mounting
  • Ultra-compact design
  • Thermo-mechanical push-and-pull force relief

Related documents

  • Handling instruction  PDF, 1 MB

    The handling instruction gives information during the design phase of the application and for usage in the production.
    To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.

  • Packaging datasheet  PDF, 383 kB

    The package data gives information about dimensions of the housing.

  • Power module datasheet explanation PDF, 4 MB

    Explanation of measurement conditions and data sources used in Vincotech’s power module datasheets.

  • Product Qualification at Vincotech PDF, 293 kB

    Vincotech’s qualification tests follow the minimum requirements for the series release of power modules described in this document. These tests also apply for release and re-qualification of modified products.

  • UL (Underwriters laboratories)  PDF, 309 kB

    Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.

  • RoHS  PDF, 277 kB

    All Vincotech standard power modules comply with the RoHS specification.
