NEW IPM SOLUTION FOR EMBEDDED DRIVE APPLICATIONS

New 1200 V flowIPM 1B module is the perfect fit for three-phase, low-power embedded drive applications.

Complex systems for motion control require a lot more than just a reduction in size.  Today's applications demand much greater reliability and performance shoehorned into a truly compact design. And the new 1200 V flowIPM 1B module is the perfect fit for  three-phase, low-power embedded drive applications. Vincotech’s flowIPM 1B product family is the go-to solution for mechanical environments where space is tight, for instance, in embedded motor drives for fans, pumps, washing machines and in small industrial motor drives with up to 2 kW output power.

General Features:

  • Output power at 1200 V input: up to 2 kW

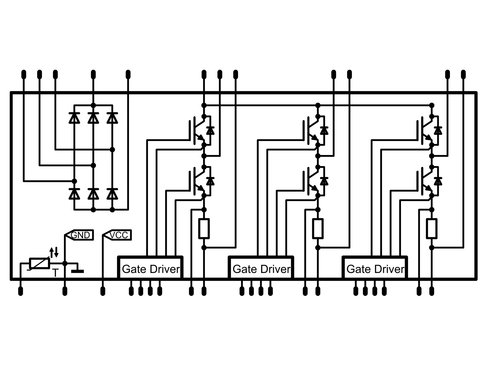

  • 3~ inverter, a rectifier and shunt resistors
  • Integrated gate drivers with complete bootstrap circuit
  • Ultra-low inductive design with integrated DC-capacitor
  • 17 mm flow 1B housing (72 mm by 36 mm w x d)
  • Press-fit pins optional

flowIPM 1B 1200 V:

Part.-No. Voltage in V Current in A Technology
20-1B12IPA015SC-L579F09 1200 15 IGBT4
20-1B12IPA008SC-L239C09 1200 8 IGBT4

Samples of the 1200 V flowIPM 1B module are available now.
