flowPIM® S3 + 3xPFC
Basic module information
| Part number: | B0-SP12PPA040SH-PC88L41T |
|---|---|
| Product line: | flowPIM® S3 + 3xPFC |
| Product status: | Series - Preferred |
| Break down voltage: | 1200 V |
| Nominal chip current rating: | 40 A |
| Standard Packing Quantity: | 45 |
| Module datasheet: | PDF, 15 MB |
Product details

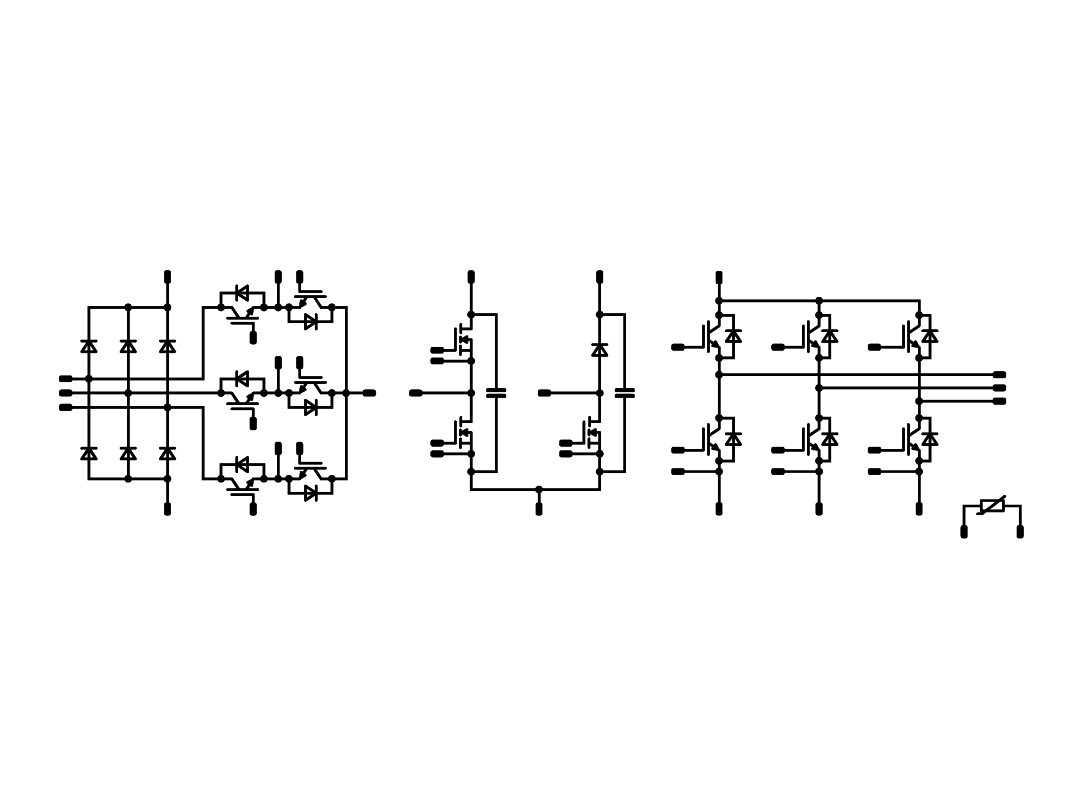

| Topology: | PIM+3xPFC (CIP) |
|---|
- Current Synthesizing PFC + Booster + Inverter
- Integrated DC Link capacitors
- Kelvin Emitter for improved switching performance
- Temperature sensor
- Thin Al2O3 for easy thermal design
| Chip technology (main switch): | IGBT4 HS |
|---|
- Easy paralleling
- High speed switching
- Low switching losses
| Base isolation (e.g. ceramic): | Al2O3 |
|---|---|
| Electrical interconnection: | Press-fit pin |
Load this product to the simulation environment to get an overview of its performance.
Simulate this moduleHousing related details

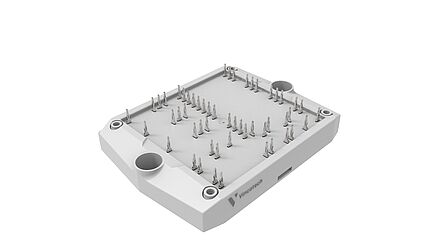

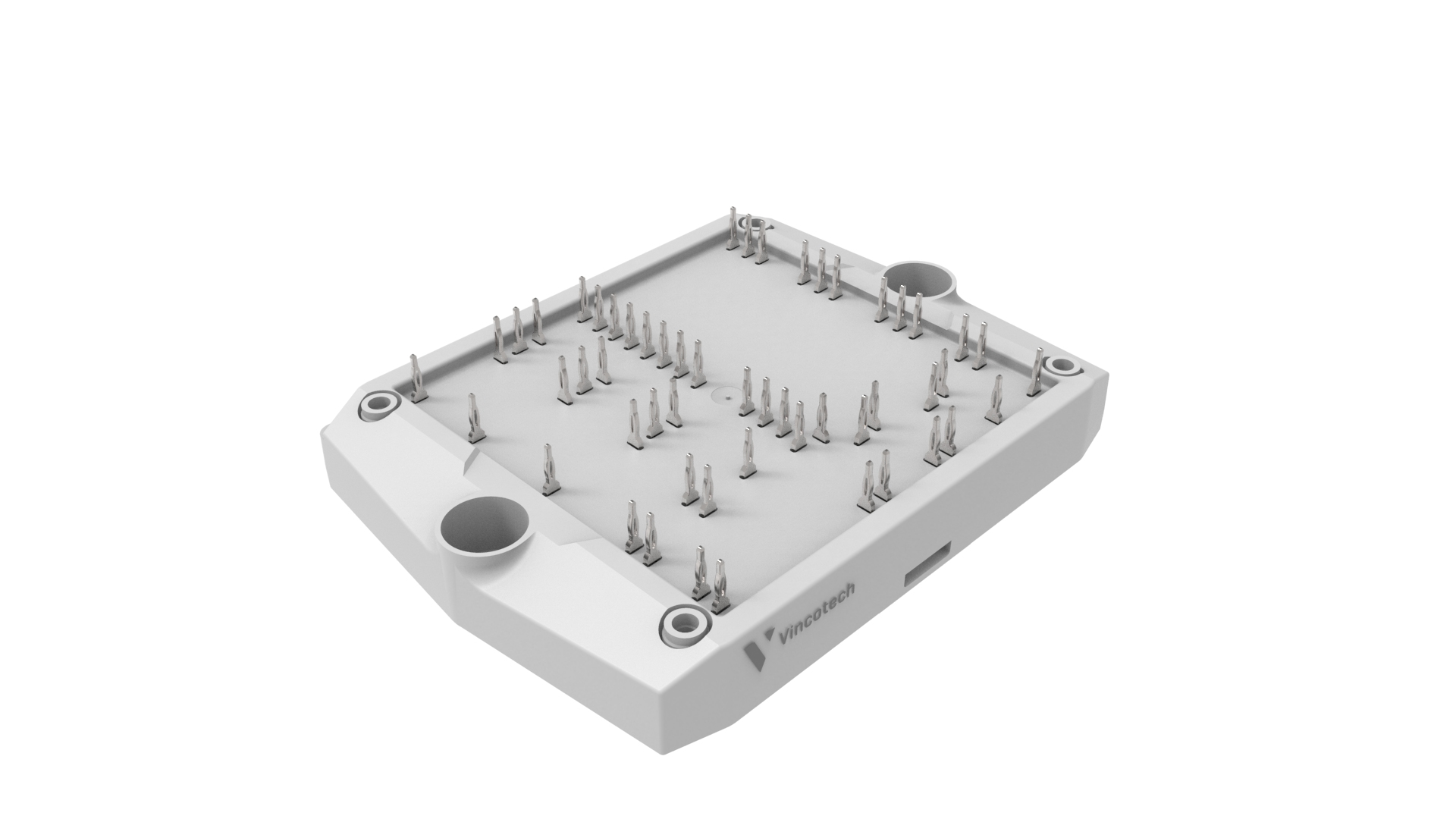

| Module housing: | flow S3 |
|---|---|
| Mechanical connection to the PCB: | 4 towers |
| Footprint: | 81.8 mm x 61.3 mm |
| Height: | 12 mm |
- CTI600 housing material
- Compact, baseplate-less housing
- VINcoPress Technology
- Thermo-mechanical push-and-pull force relief
- Press-fit pin
- Reliable cold welding connection
