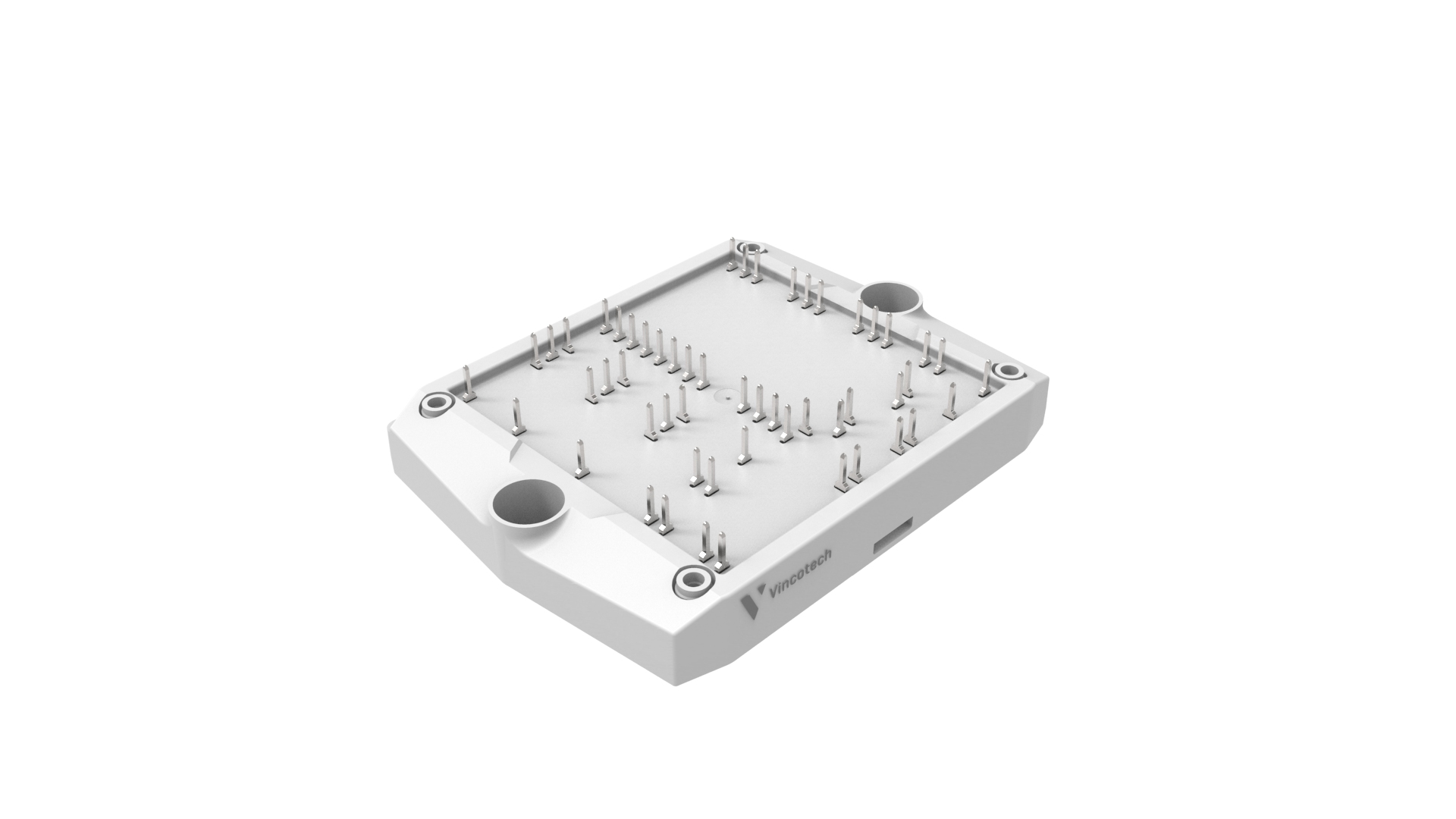

flowPIM® S3 + 3xPFC

Basic module information

Part number: B0-SL12PPA040SH-PC88L41Z
Product line: flowPIM® S3 + 3xPFC
Product status: Series - Preferred
Break down voltage: 1200 V
Nominal chip current rating: 40 A
Standard Packing Quantity: 45
Module datasheet: PDF, 15 MB


Product details

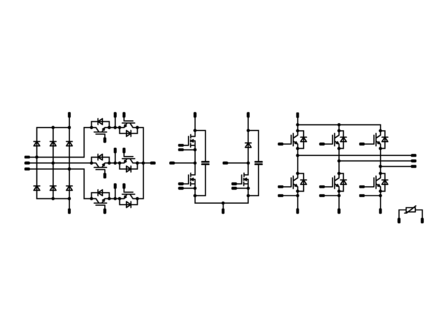

Topology: PIM+3xPFC (CIP)
  • Current Synthesizing PFC + Booster + Inverter
  • Integrated DC Link capacitors
  • Kelvin Emitter for improved switching performance
  • Temperature sensor
  • Thin Al2O3 for easy thermal design
Chip technology (main switch): IGBT4 HS
  • Easy paralleling
  • High speed switching
  • Low switching losses
Base isolation (e.g. ceramic): Al2O3
Electrical interconnection: Solder pin

Load this product to the simulation environment to get an overview of its performance.

Simulate this module

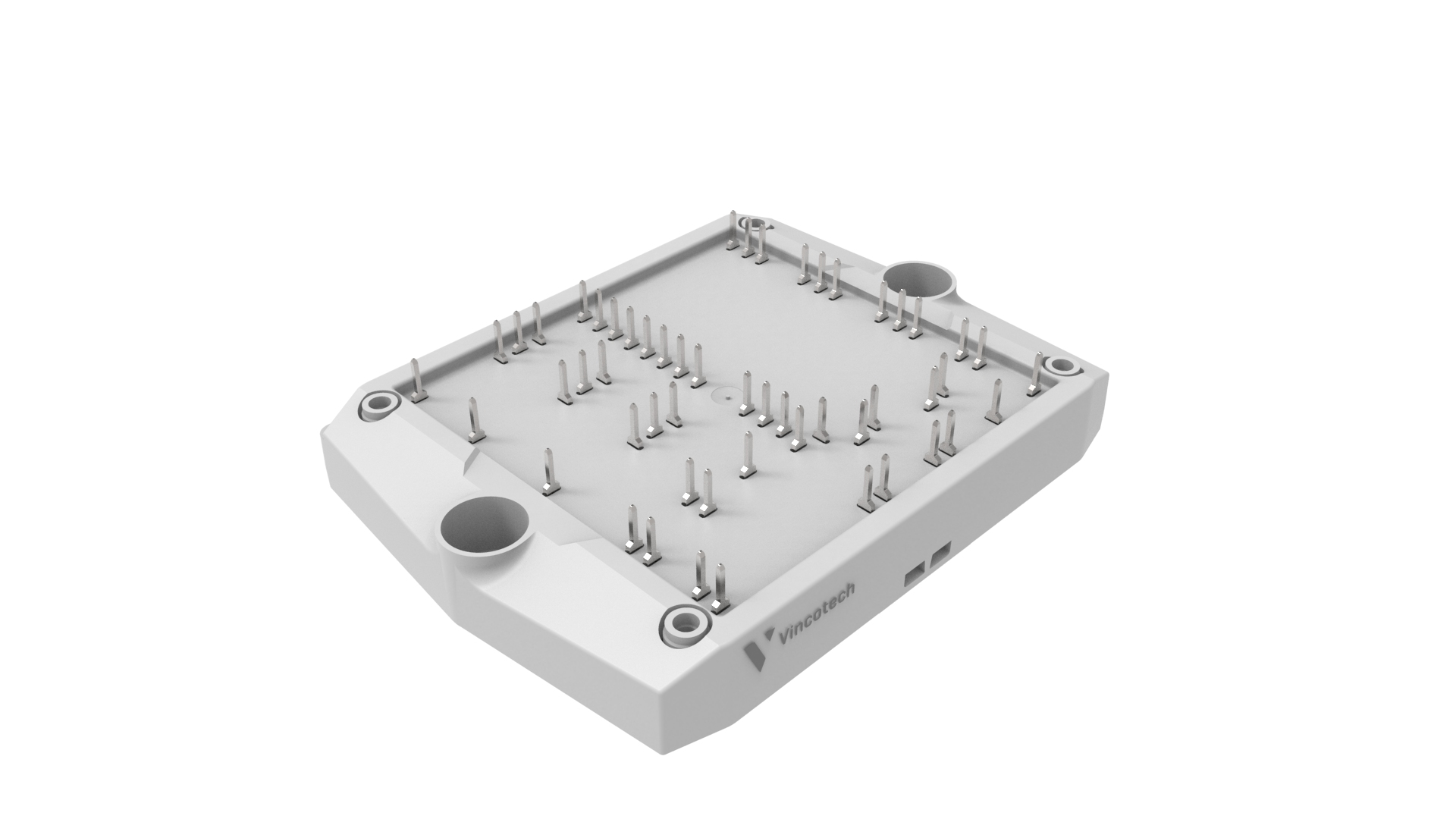

Housing related details

Module housing: flow S3
Mechanical connection to the PCB: 4 towers
Footprint: 81.8 mm x 61.3 mm
Height: 12 mm
  • CTI600 housing material
  • Compact, baseplate-less housing
  • VINcoPress Technology
  • Thermo-mechanical push-and-pull force relief
  • Solder pin
