VINcoBOOST X4 symmetric
Basic module information
Part number: | 70-W206NBA400SA-M786L |
---|---|
Product line: | VINcoBOOST X4 symmetric |
Product status: | Series |
Break down voltage: | 600 V |
Nominal chip current rating: | 400 A |
Standard Packing Quantity: | 10 |
Module datasheet: | PDF, 5 MB |
Simulation of target application: | PDF, 0 |
Product details

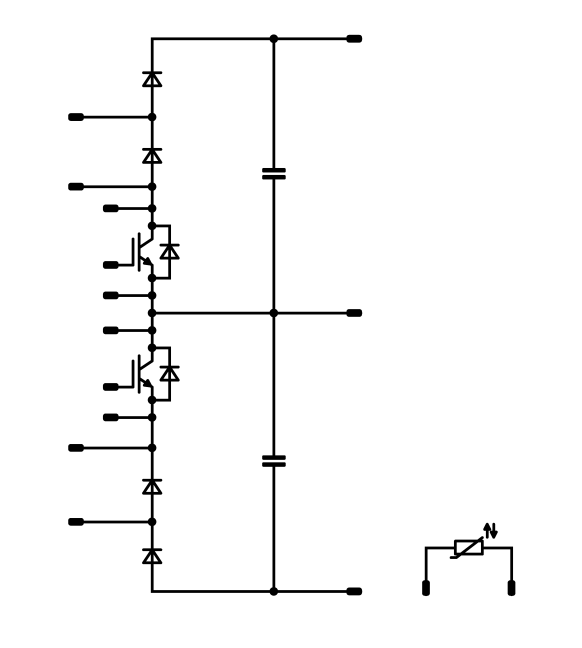

Topology: | Booster Symmetric |
---|
- Kelvin Emitter for improved switching performance
- Symmetrical Booster
- Integrated DC capacitor
- Temperature sensor
Chip technology (main switch): | IGBT3 |
---|
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
Base isolation (e.g. ceramic): | Al2O3 |
---|---|
Electrical interconnection: | Screw terminals |
Module simulation data available: | On demand |
Housing related details

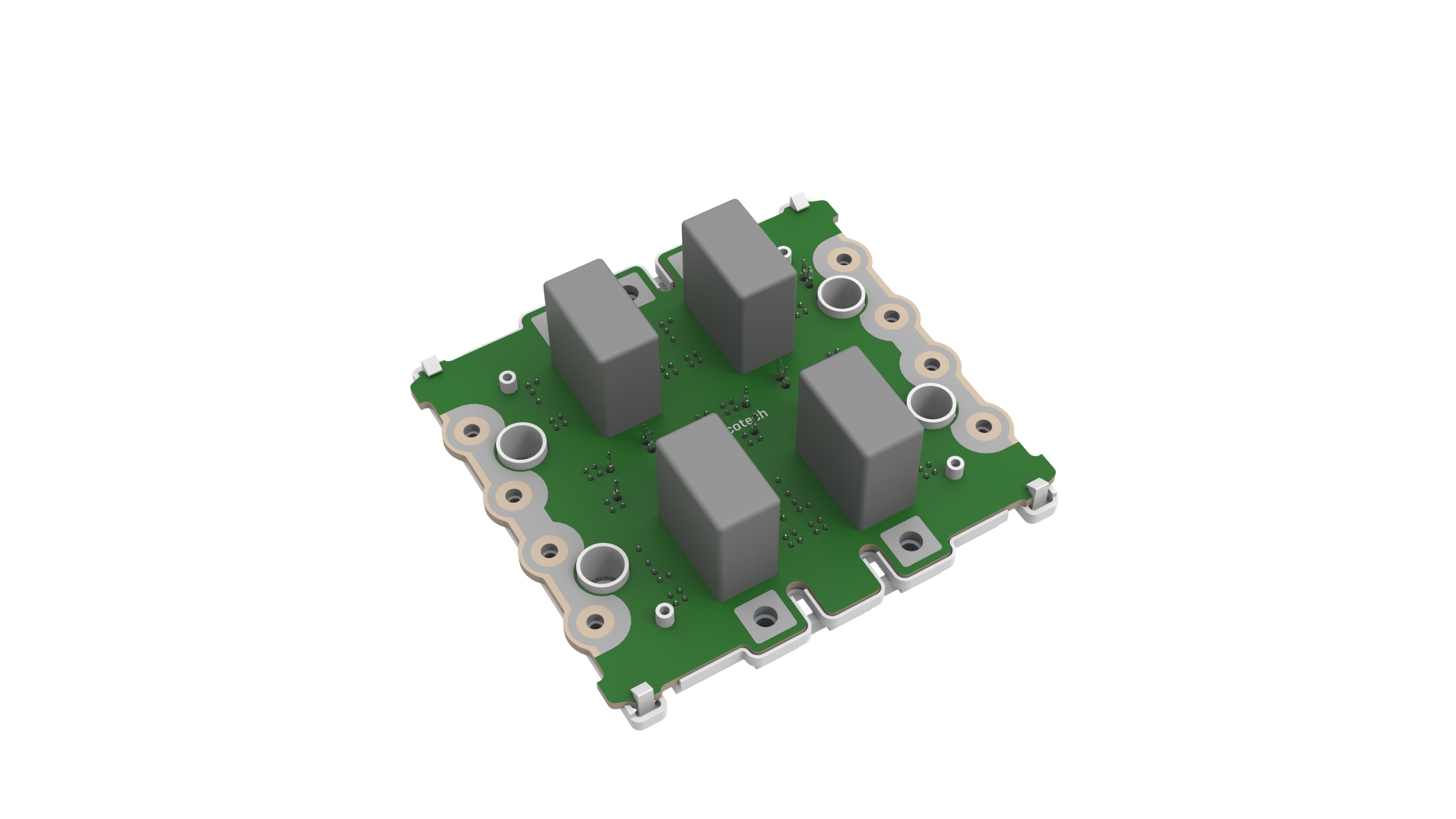

Module housing: | VINco X4 |
---|---|
Footprint: | 134.8 mm x 129.2 mm |
- Optimized for three-level topologies
- Enables high switching frequencies
- Low inductive package
- Easy paralleling
- Optimal current sharing
- Thermo-mechanical push-and-pull force relief
- M6 High Power Screw Contact
- M4 Low Inductive Interface
- Press-fit connection to driver PCB
